Combination of Lots 1 to 19 - One Off Used Davis Standard Automotive Telecoms Wire Coating Line

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

M48 Dancer Unit. SO/No. 85941, S/No. BX022 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Davis Standard Thermatic Extruder 25-IN-25 and Control Unit, 2.5”

3m (Approx.) Slide Through of Stainless Steel Cooling Trough, SO/No. 85945, S/No. BX026 (2008), Entry Catch Basin on 1m Telescoping Section (Rack and Pinion), Water Entry Though Nozzles Located Over Trough, (1) 3m Trough with (1) Stand, “V” Bottom Design / Flood Design, Exit Catch Basin with Air Wipes

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

MPT-18 Multi-Pass Cooling System with 6m, (2) x 3m Joined Sections of 14 gauge (1.9mm Thick) #304 Stainless Steel Cooling Trough, Each 3m Section of Trough is equipped with (8) x Water Spray Nozzles, (2) x Hand Valves, (1) x Drain and (1) x Gasketed Cover, Solenoid Valve Is Installed in the Water Supply Manifold, aach Hand-Operated Valve Adjusts (4) x Water Spray Nozzles. Pneumatic Lines are Installed to the Air Cylinders and Push Button-Operated Solenoid Valves are Supplied to Open and Close the Covers, A Bank of Four, 2 Groove UHMW Sheaves is Mounted at Each End within The Cooling System, Plexiglass” Windows are Provided in The Areas of the Cover over the Sheave Banks, Ceramic-Coated Rods are Mounted at intervals within the Cooling System to Support and Stabilize, Total Cooling Length: 83m, Maximum Wire Speed: 1,200mpm. SO/No. 85941, S/No. BX065 (2008) SO/No. 85945, S/No. BX026 (2008), Plus Spares

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Davis-Standard Cable Dryer with (2) Nozzles with Lid, Cable Guides Before, Between and After the Nozzles with Ceramic Inserts, (2) Gas Ring Blowers, HP Each with Hoses, (1) Rack with Height Adjustable Supports for Housing, Totally Enclosed, Noise Insulation, Bulkheads at Entry and Exits. S/O No. 85941, S/No. BX034 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Davis-Standard High Speed Air Wiper Assembly for .500” (12mm) Diameter Maximum Primary Wires and Small Cables. This Unit is Supplied with a Sturdy Base for Mounting as A Free-Standing Unit Separate From The Capstan Or Trough, Wire Entry Height Is Adjustable from 38 To 43 ¼” (965 to 1098 mm). This Unit has a Three (3) HP (2.2 KW) Vacuum Blower, Motor Starter and Pushbutton Station Prewired to a NEMA 12 (IP-65) Junction Box, Vacuum Wiper Head is 36”

Davis-Standard DC-16, 16” Dual Drum Capstan to Provide Non-Slip Pulling of Small to Intermediate Diameter Wire. Stainless Steel Bi-Fold Doors on The Front of The Housing Provide Easy Access or Thread-Up.The Two, 16” (406 Mm) Diameter Capstan Drums are Fabricated from SS 410, (5) Grooves for Maximum Cable Diameter 0.37”

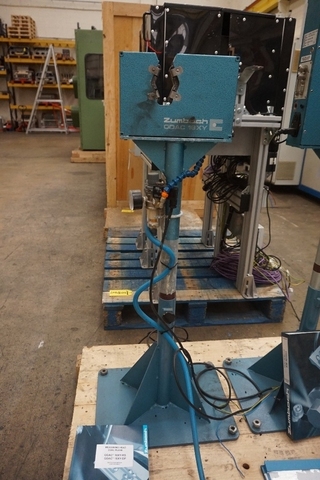

Zumbach ODAC 18XY-DP, 31538 ODAC 18XY-DP Dia. Scanner .003/.71". S/No. 2805.24.1710.1

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Zumbach DST AST.ISF.12.40.C. S/No. 2808.3678.20

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Zumbach ODAC 18XY-DP, 31538 ODAC 18XY-DP Dia. Scanner .003/.71". S/No. 2708.3895.10

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

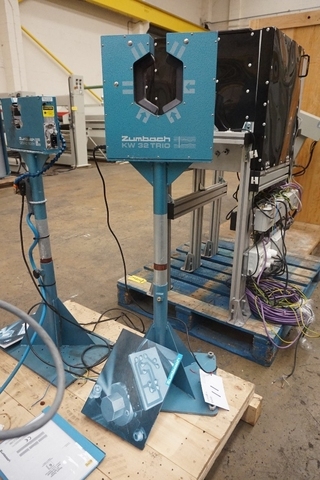

Zumbach KIW 32 Trio/DP, 32 TRIO-DP Fault Detector 1.25". S/No. 2805.2417.20.1

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

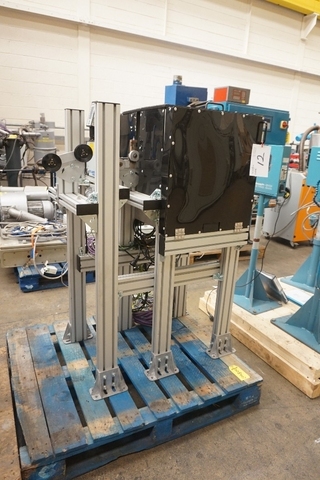

Beta Lasermike Profibox for Laser Speed. S/No. 43-08-9001(2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

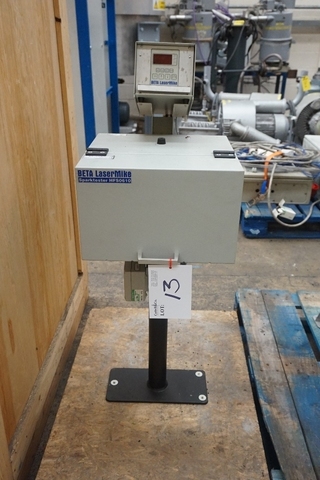

Betalaser Mike Spark Tester, HFS0610, S/No. 40.08.6602 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

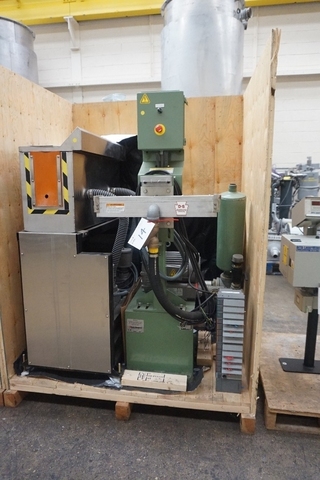

Davis-Standard High Speed Air Wiper Assembly for .500” (12mm) Diameter Maximum Primary Wires and Small Cables. This Unit is Supplied with a Sturdy Base for Mounting as a Free-Standing Unit Separate from the Capstan or Trough. Wire Entry Height is Adjustable from 38 To 43 ¼” (965 To 1098 mm). This Unit has a Three (3) HP (2.2 KW) Vacuum Blower, Motor Starter and Push Button Station Prewired to a NEMA 12 (IP-65) Junction Box, Vacuum Wiper Head is 36” (914 mm) Long, Vacuum Gauge and a Replaceable Wear Strip. SO85945 S/No. BX934 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

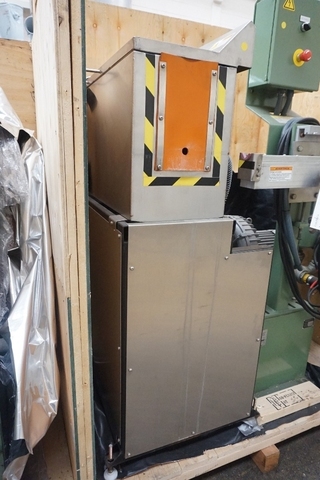

Davis-Standard Cable Dryer Complete with (2) Nozzles with Lid, Cable Guides Before, Between and After the Nozzles, with Ceramic Inserts, (2) Gas Ring Blowers, 5 HP Each with Hoses, (1) Rack with Height Adjustable Supports for Housing, Totally Enclosed, Noise Insulation, Bulkheads at Entry and Exits. S/No. 85941 S/No. NBX034 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

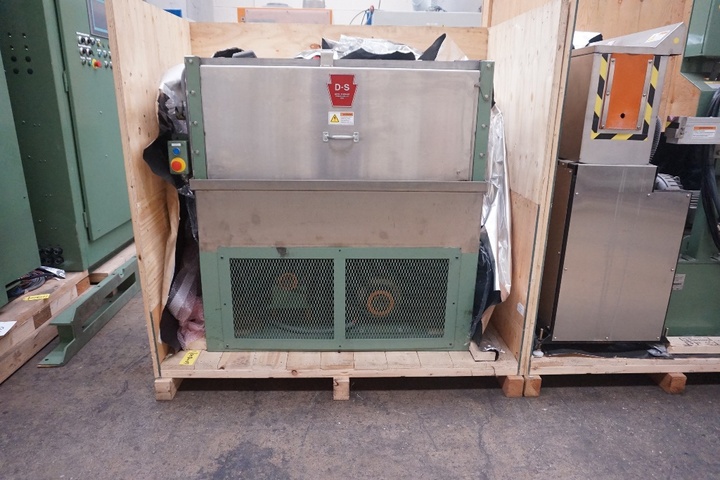

Davis-Standard DC-16, 16” Dual Drum Capstan to Provide Non-Slip Pulling of Small to Intermediate Diameter Wire. Stainless Steel Bi-Fold Doors on the Front of the Housing Provide Easy Access for Thread-Up. The Two, 16” (406 Mm) Diameter Capstan Drums are Fabricated from SS 410, (5) Grooves for Maximum Cable Diameter 0.37”

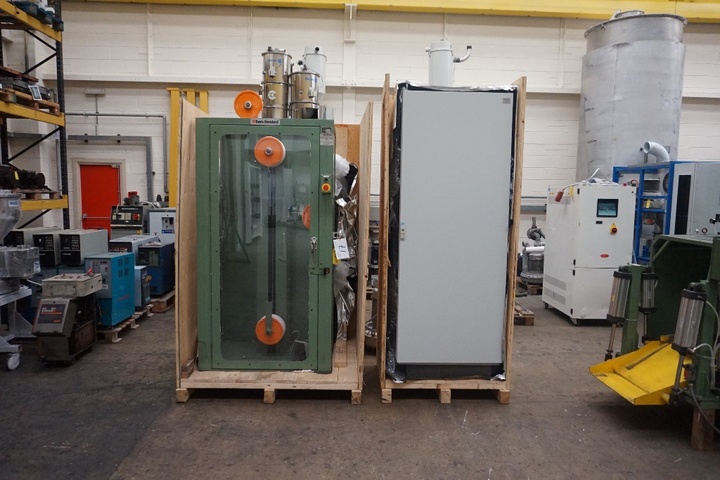

M48 Dancer and Control Cabinet, SO/No. 85945, S/No. BX075 (2008)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

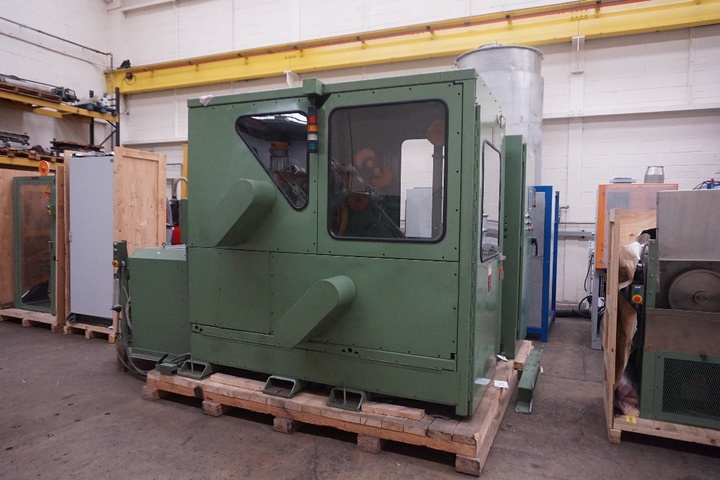

Davis Standard/Clipper Machine TTA-630, Parallel Axis Shaftless Dual Reel Take-Up Features Shaftless Design with an Independent Drive for Each Reel. Parallel Axis and Dual Drive Motors make possible an Exceptionally Smooth Cross-Over by Eliminating Wire Over the Flange at Crossover and Matching Wire Line Speed with Empty Reel Surface Speed. The Parallel Axis Design also Eliminates High Speed Traverse Carriage Movement for Long Life of the Entire Traverse System. S/O No. 85945 S/No. BX067 (2009)

Please Note: this lot is located in Swindon and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

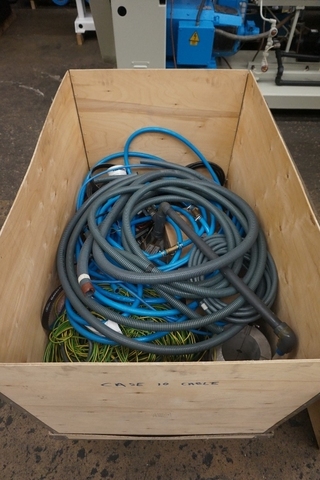

Spares, Extraction Pipes, Ductwork Cable Trays, Extractor, Spare Air Pipes
