2502 - Engineering and Fabrication Machinery for sale on behalf of Retained Clients
Descrizione asta
Union Type BFT 80/2 Horizontal Boring & Milling Machine, Trumpf Type Trumabend V85S Hydraulic Downstroke Press Brake, Trumpf Type Trumabend V85S Hydraulic Downstroke Press Brake, Poreba Type TPK 80/2m Gap Bed Centre Lathe, Herbert Devlieg Type 2B-36 Spiramatic Jigmill, Huron NU4 Universal Milling Machine, Asquith Type OD1 Radial Arm Drill, Plus Many Others...
Date ispezioni
Viewing is available by appointment only with the Auctioneer
Please contact our Office on: +44 (0) 121 328 2424 or email
us at: info@cottandco.com
L’asta si chiuderà il giorno:
martedì 12 lug 2016 at 03:00 PM BST
Premio dell'acquirente
Il premio dell'acquirente verrà addebitato al 16.00%.
IVA
IVA applicata pari al20.00%.
Termine ultimo pagamento
giovedì 14 lug 2016 at 05:00 PM BST
Termine ultimo ritiro
giovedì 28 lug 2016 at 05:00 PM BST
Spedizionieri
Squadre per il carico
Dettagli Esportazione/importazione dal UK
Please Note:
Lot 5A is located in Coventry, West Midlands - there will be a loading charge for this item
Lot 10 is located in Stockport, Cheshire. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
Lots 9, 12, 14, 25, 26, 27, 28, 46, 58 are located in Sheffield and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
All other lots are located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
Devi essere loggato per poterti registrare alle vendit
L’asta si chiuderà il giorno:
martedì 12 lug 2016 at 03:00 PM BST
Premio dell'acquirente
Il premio dell'acquirente verrà addebitato al 16.00%.
IVA
IVA applicata pari al20.00%.
Termine ultimo pagamento
giovedì 14 lug 2016 at 05:00 PM BST
Termine ultimo ritiro
giovedì 28 lug 2016 at 05:00 PM BST
Spedizionieri
Squadre per il carico
Dettagli Esportazione/importazione dal UK
Lots 1-10 / 60

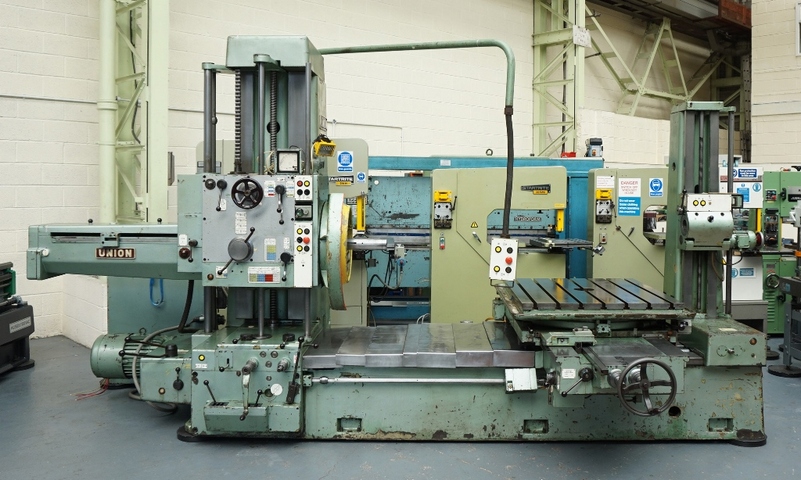

Lot 1: Union Type BFT 80/2 Horizontal Boring & Milling Machine
Union Type BFT 80/2 Horizontal Boring & Milling Machine. Table 1130mm x 1000mm. Spindle Diameter 80mm. Facing Head Diameter 500mm. Traverses: X 1600mm, Y 1000mm, Z 1250mm. With Tail Stock (End Support). Line Boring Bars.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser

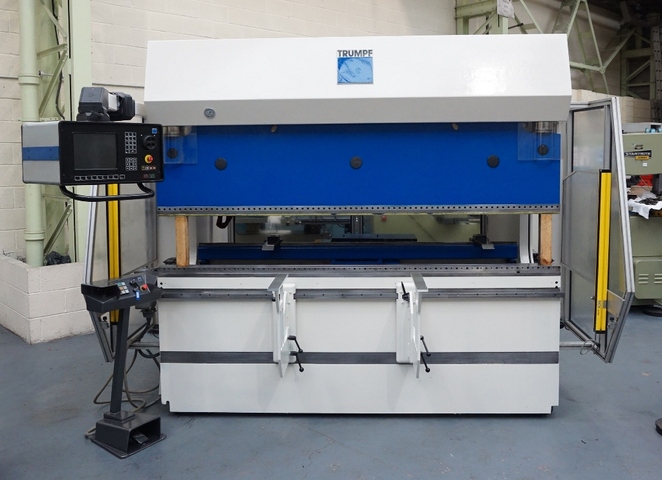

Lot 2: Trumpf Type Trumabend V85S Hydraulic Downstroke Press Brake with Tooling
Trumpf Type Trumabend V85S Hydraulic Downstroke Press Brake. Capacity: 2500mm x 85 Ton. Max Stroke 215mm. Throat 400mm. Distance Between Frames 2270mm. 8 Axis CNC Control. 4 Axis CNC Back Gauge with Tooling.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
Lot 3: Poreba Type TPK 80/2m Gap Bed Centre Lathe
Poreba Type TPK 80/2m Gap Bed Centre Lathe. Swing Over Bed 30". Swing Over Gap 40". Spindle Bore 3 3/4". Spindle Speeds 8 - 800rpm. 25" 4 Jaw Drive Plate. 3 Point Roller Steady Fixed Traveling Steady.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser

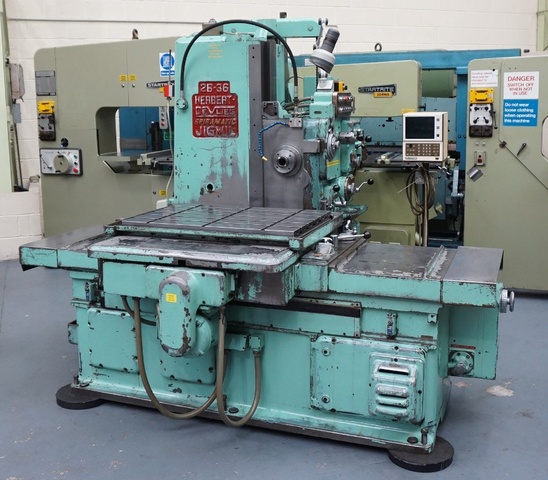

Lot 4: Herbert Devlieg Type 2B-36 Spiramatic Jigmill
Herbert Devlieg Type 2B-36 Spiramatic Jigmill. Table 36" x 24". Spindle Taper 40ISO. Spindle Speeds 42 - 2000rpm. 3 Axis Digital Read Out.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser

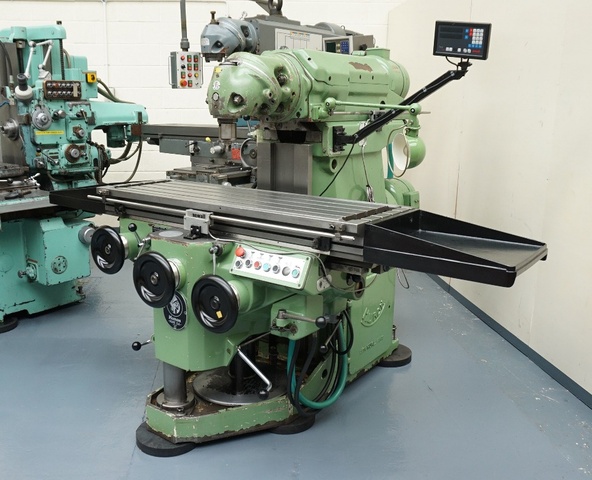

Lot 5: Huron NU4 Universal Milling Machine
Huron NU4 Universal Milling Machine With Powered Overarm. Table Size 1430 x 460mm. Table Travel X 1100mm, Y 700mm, Z 500mm. Spindle Taper 40 ISO. Spindle Speeds 25 -3300rpm. Imperial Dials. Newall Topaz 2 Axis Digital Readout. Lo-Vo Light & Coolant.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
Lot 5A: Boko F30 Milling Machine
Boko F30 Milling Machine with Heidenhain 425 Control, Table Size: 63" x 47", Max Workpiece Diameter: 153", Max Workpiece Height: 38.6", Spindle Speeds: 35.5 - 1,800rpm.
Please Note: This Item has been removed for convenience of sale and is currently located in Coventry, West Midlands.

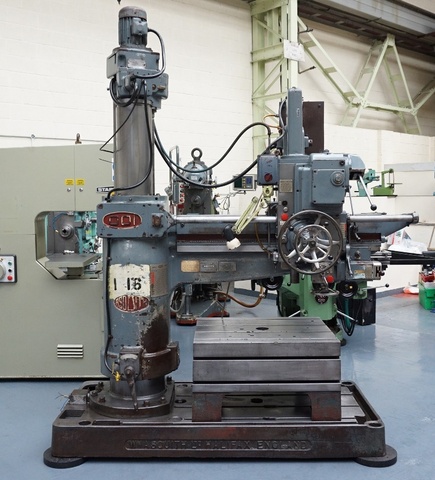

Lot 6: Asquith Type OD1 Radial Arm Drill
Asquith Type OD1 Radial Arm Drill. Radius 4ft 6". 5 Morse Taper (3"). Speeds 42 to 1130rpm. Box Table 33" x 42" x 20" High.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser

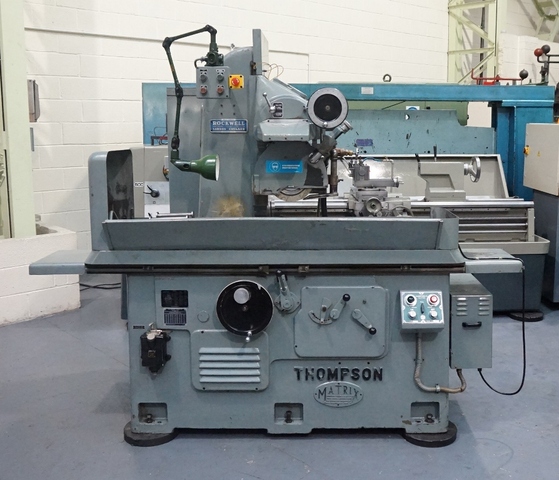

Lot 7: Thompson Matrix Toolroom Surface Grinder
Thompson Matrix Toolroom Surface Grinder. Capacity 24" x 12". Auto Reverse to Wheel Head. Wheel Dresser.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
Lot 8: XYZ SLV 3000 Turret Milling Machine
XYZ SLV 3000 Turret Milling Machine. Table 58" x 12". Traverse X 40", Y 17", Z 16". Spindle 40INT. Spindle Speeds 70 to 3600rpm. Newall C80 3 Axis Digital Readout.
Please Note: This Item is located in Hyde, Cheshire and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser.
Lot 9: Dean Smith & Grace Type 2415 x 110 Gap Bed Centre Lathe
Dean Smith & Grace Type 2415 x 110 Gap Bed Centre Lathe. Swing Over Cross Slide 15". Swing Over Bed 24". Swing Over Gap 32". Distance Between Centres 110". Spindle Bore 3 5/8". Spindle Speeds 8 to 900rpm. 3 Jaw Chuck. 4 Jaw Chuck. Quick Change Tool Post.
Please Note: This Item is located in Sheffield and will be loaded free of charge to a suitable vehicle. Blocking and securing however will be at the cost of the purchaser
* Nota Bene: - Qualsiasi traduzione uttilizzando ''Google Translate'' non è garantita come una traduzione accurata ed è solo a scopo di guida. La descrizione principale del lotto è in inglese ed e data a migliore conoscenza del banditore. Tuttavia, la precisione non è garantita e deve essere verificata dall'acquirente prima di fare offerte.
