2506 - High Quality Fabrication Equipment previously used by Car Mec S.r.L, Italy in the Manufacture of Elevators
Descrizione asta
Prima Industrie Type Platino 1530 HS CNC Laser Cutting Machine, Amada Schiavi Model Vipress 368 King CNC Punching Machine, Tooling for Amada Schiavi Vipress 368 King Punching Machine, Trumph Trumatic 260 CNC Rotation Punching Machine, Tooling for Trumph Trumatic 260 Punching Machine, Rainer Type 3020 RR CNC Punching Machine, BBM Model PM Type 55LT 55 Ton Punching Machine, Plus Many Others...
Date ispezioni
Viewing is available by appointment only with the Auctioneer
Please contact our Office on: +44 (0) 121 328 2424 or email
us at: info@cottandco.com
L’asta si chiuderà il giorno:
mercoledì 27 lug 2016 at 03:00 PM BST
Premio dell'acquirente
Il premio dell'acquirente verrà addebitato al 18.00%.
IVA
IVA applicata pari al22.00%.
Termine ultimo pagamento
venerdì 29 lug 2016 at 05:00 PM BST
Termine ultimo ritiro
giovedì 11 ago 2016 at 05:00 PM BST
Spedizionieri
Squadre per il carico
Dettagli Esportazione/importazione dal UK
These Items are located in Malnate (VA), Italy. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Devi essere loggato per poterti registrare alle vendit
L’asta si chiuderà il giorno:
mercoledì 27 lug 2016 at 03:00 PM BST
Premio dell'acquirente
Il premio dell'acquirente verrà addebitato al 18.00%.
IVA
IVA applicata pari al22.00%.
Termine ultimo pagamento
venerdì 29 lug 2016 at 05:00 PM BST
Termine ultimo ritiro
giovedì 11 ago 2016 at 05:00 PM BST
Spedizionieri
Squadre per il carico
Dettagli Esportazione/importazione dal UK
Lots 1-10 / 90

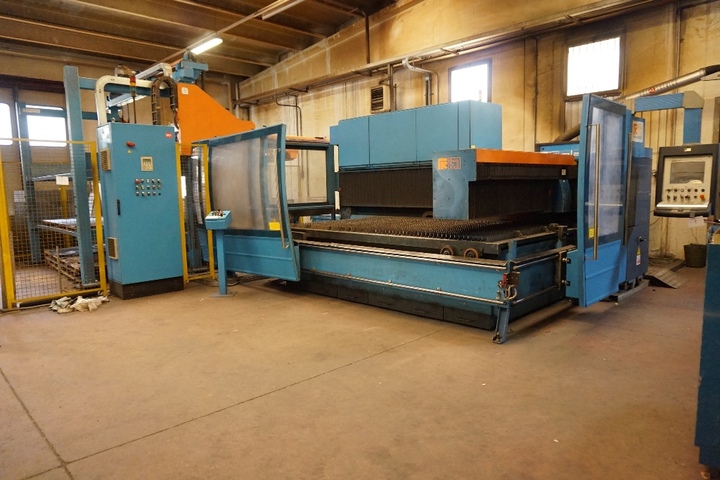

Lot 1: Prima Industrie Type Platino 1530 HS CNC Laser Cutting Machine
Prima Industrie Type Platino 1530 HS CNC Laser Cutting Machine, S/No. 7171344 with Primach 206 Control, maximum sheet metal size 1,500mm x 3,000mm, maximum thickness 15mm, Laser capacity 3,000 watt (2002) Stima Engineering Type LY02 406 000 Automated Loading System, S/No. 356 NLEX 35 (2003) Cooling Unit with Atlas Copco Air Dryer & Air Receiving Tank.
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Lot 2: Amada Schiavi Model Vipros 368 King CNC Turret Punching Press
Amada Schiavi Model Vipros 368 King CNC Punching Machine, S/No. 36820029 (1997) Station with Tool Holders & Indexing Units, Siemens Simatic 0P17 Control, pressure capacity 30 Ton, maximum sheet metal size 1,500mm x 3,000mm, maximum thickness 3.2mm, axis traverse distance 1525mm x 2,000mm, LKI Type MP300 EEM Automated Loader, S/No. 460 (2001) with Control, Automated Un-loader with 3000kg Scissor Lift Platform and Amada Control, Eurocold Cooling System, Waste Removal Conveyor.
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Attenzione, questo lotto è disponibile anche come combinazione.

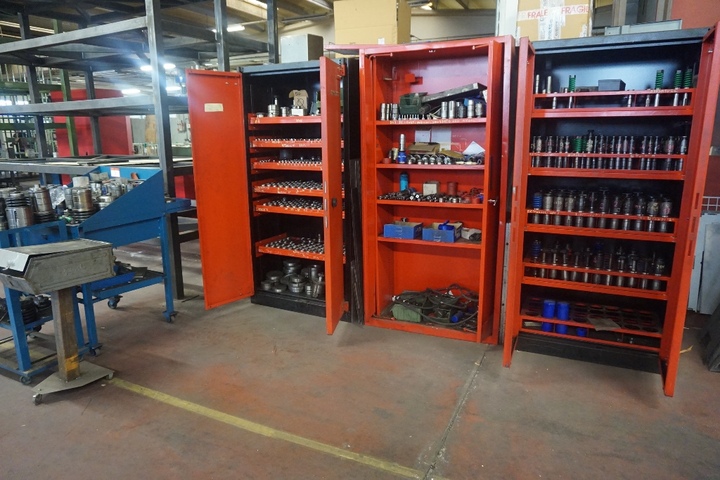

Lot 3: Tooling for Amada Schiavi Vipress 368 King Punching Machine
Tooling for Amada Schiavi Vipress 368 King Punching Machine, including Cabinets
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Attenzione, questo lotto è disponibile anche come combinazione.

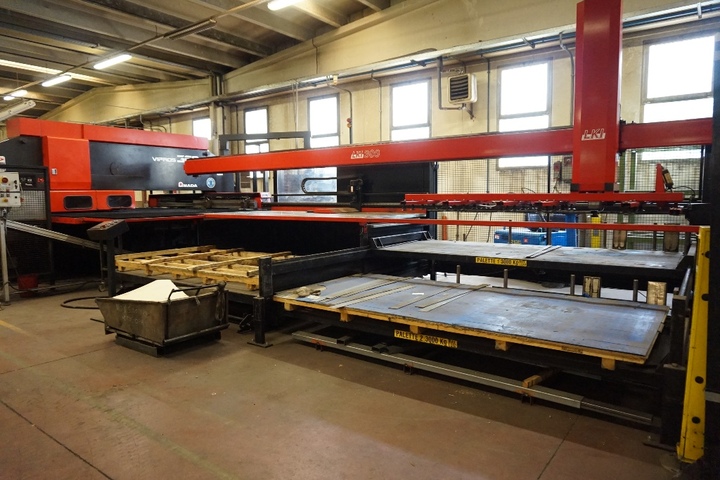

Lot *: Combination of Lots 2 & 3
Lot 2 - Amada Schiavi Model Vipros 368 King CNC Punching Machine, S/No. 36820029 (1997) 58 Station Turret with 4 Auto Indexing Units, Siemens Simatic 0P17 Control, pressure capacity 30 Ton, maximum sheet metal size 1,500mm x 3,000mm, maximum thickness 3.2mm, axis traverse distance 1525mm x 2,000mm, LKI Type MP300 EEM Automated Loader, S/No. 460 (2001) with Control, Automated Un-loader with 3000kg Scissor Lift Platform and Amada Control, Eurocold Cooling System, Waste Removal Conveyor
Lot 3 - Tooling for Amada Schiavi Vipress 368 King Punching Machine, including Cabinets.
Please Note: These Items are located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
2 Lotti compresi in questa combinazione

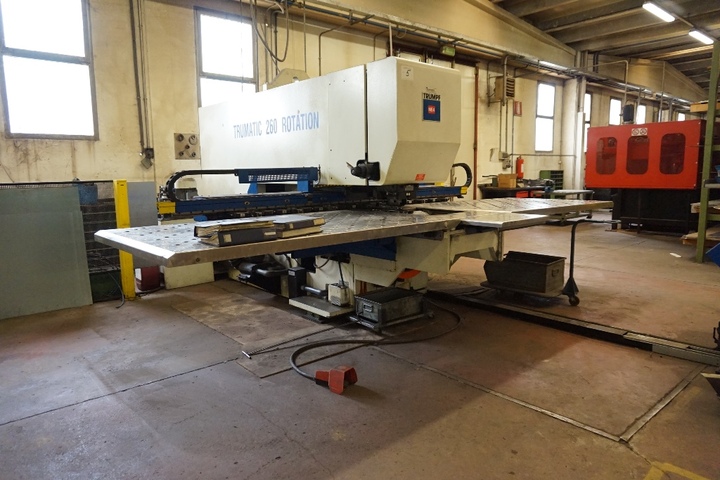

Lot 5: Trumpf Trumatic 260 CNC Rotation Punching Machine
Trumpf Trumatic 260 CNC Rotation Punching Machine, S/No. 8038 with Bosch Control, pressure capacity 30 Ton, maximum sheet metal size 1,250mm x 2,500mm, maximum thickness 6.4mm, maximum cutting diameter 76mm, axis traverse distance 1600mm x 2,500mm, roller bearing infeed & outfeed table, S/No. 8038.
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
Attenzione, questo lotto è disponibile anche come combinazione.

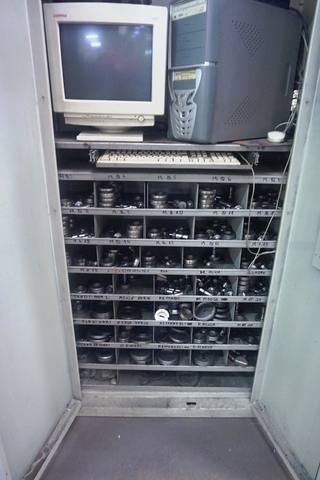

Lot 6: Tooling for Trumatic Punching Press
Tooling for Trumatic Punching Press
Please Note: This Item is located in Malnate (VA), Italy. Unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser.
Attenzione, questo lotto è disponibile anche come combinazione.
Lot *: Combination of Lots 5 & 6
Lot 5 - Trumpf Trumatic 260 CNC Rotation Punching Machine, S/No. 8038 with Bosch Control, pressure capacity 30 Ton, maximum sheet metal size 1,250mm x 2,500mm, maximum thickness 6.4mm, maximum cutting diameter 76mm, axis traverse distance 1600mm x 2,500mm, roller bearing infeed & outfeed table, S/No. 8038 6
Lot 6 - Tooling for Trumatic Punching Press
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
2 Lotti compresi in questa combinazione

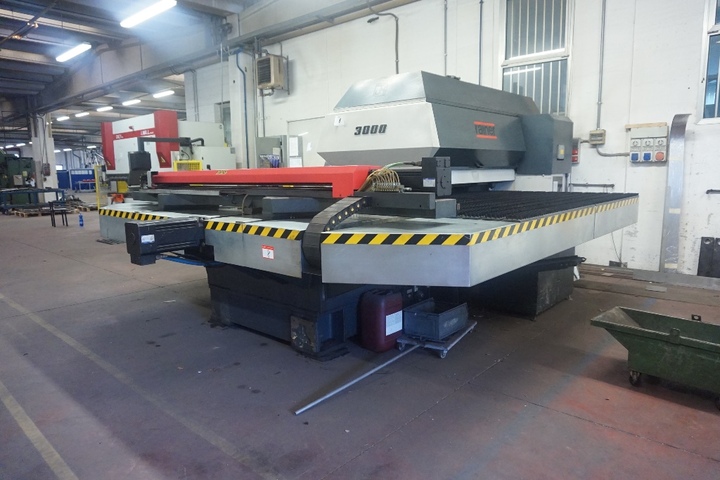

Lot 8: Rainer Type 3020 RR CNC Punching Machine
Rainer Type 3020 RR CNC Punching Machine with Rainer Control, Plate Positioning Unit, S/No. 1783 pressure capacity 30 ton, maximum sheet size 1,250mm x 2,500mm
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
Attenzione, questo lotto è disponibile anche come combinazione.

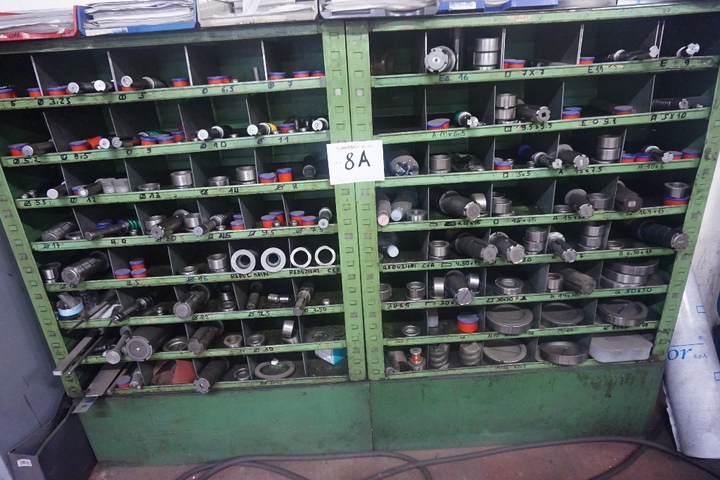

Lot 8A: Tooling for Rainer Punching Machine
Tooling for Rainer Punching Machine
Please Note: This Item is located in Malnate (VA), Italy, unfortunately there are no loading facilities available on site. Dismantling & Loading will be at the cost of the purchaser
Attenzione, questo lotto è disponibile anche come combinazione.
Lot *: Combination of Lot 8 & 8A
Lot 8 - Rainer Type 3020 RR CNC Punching Machine with Rainer Control, Plate Positioning Unit, S/No. 1783 pressure capacity 30 ton, maximum sheet size 1,250mm x 2,500mm
Lot 8A - Tooling for Rainer Punching Machine
Please Note: These Items are located in Malnate (VA), Italy,
unfortunately there are no loading facilities available on site.
Dismantling & Loading will be at the cost of the purchaser
2 Lotti compresi in questa combinazione
* Nota Bene: - Qualsiasi traduzione uttilizzando ''Google Translate'' non è garantita come una traduzione accurata ed è solo a scopo di guida. La descrizione principale del lotto è in inglese ed e data a migliore conoscenza del banditore. Tuttavia, la precisione non è garantita e deve essere verificata dall'acquirente prima di fare offerte.
