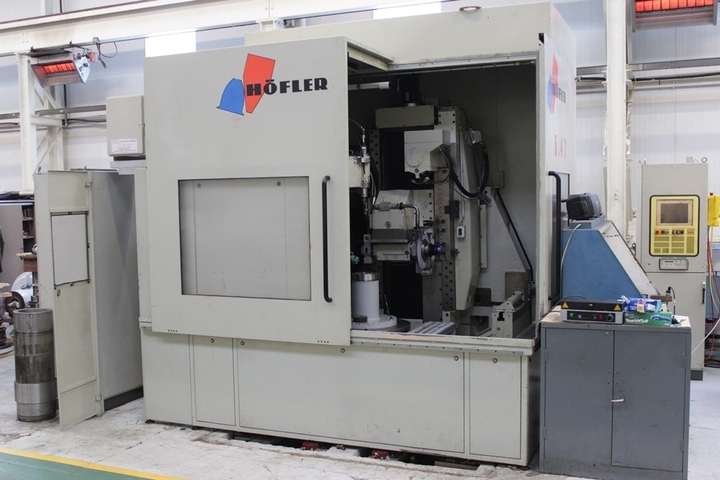

Höfler Nova 1000 CNC 7-Axis Gear Grinder, S/No. 517 (1994)

Max Workpiece Diameter 1000mm, Min Module 1.5, Max Module 25, Min Root Circle Diameter 30mm, Max Face Width 580mm, Max Helix Angle (L+R) 40 deg, Grinding Slide – Double Strokes Per Minute (Continuously Variable) 20 – 200, Cutting Speed (350mm dia Wheel) 35-45m/sec, Max Grinding Stroke 600mm, Machine Weight 14,000kgs, Table Diameter 720mm, Table Bore Diameter 150, Table Bore Depth 160mm, Max Workpiece Weight 2500kgs, Total Power Rating 64kVA, Machine Hours 23,672, Tailstock, Fully Guarded, Operators Manuals & Drawings, Resy Coolant Paper Filtration Unit, Wheel Dresser Diamond Setting Micrometer, Reutlinger Eltrodyn-Autobalance Grinding Wheel Balance, BKW Refrigerant Chiller, Indusa EL2000 N R/O Electrostatic Air Filter (2002)

Please Note: Unfortunately, this machine is no longer under power and cannot be inspected in operation.

Location: This lot is located in Rhayader, Wales and will be loaded free of charge to a suitable vehicle. Dismantling, Blocking & Securing however, will be at the cost of the purchaser.
