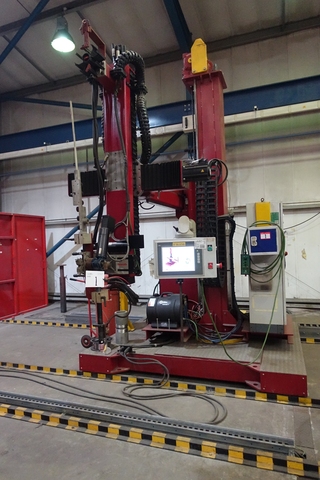

This RT 500 Tig System has been developed to weld various types of butt welds and weld external surfaces using Tig and Hot Wire Technique, (Maxstar 700 tig power / miller DX hot wire) The system uses a heavy duty column & boom supplied by A & N Plant for positioning with a Welding Alloys ltd computer controlled X & Y axis with manual angle rotation. The system has Red –D-Arc positioner with 30” faceplate 15” bore and three support steadies. Column & Boom / positioner / steadies are mounted and travel on 12 mt rails. Vertical travel = 2200 mm, Horizontal travel = 3000 mm Tig head travel = 500 mm (2010)

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

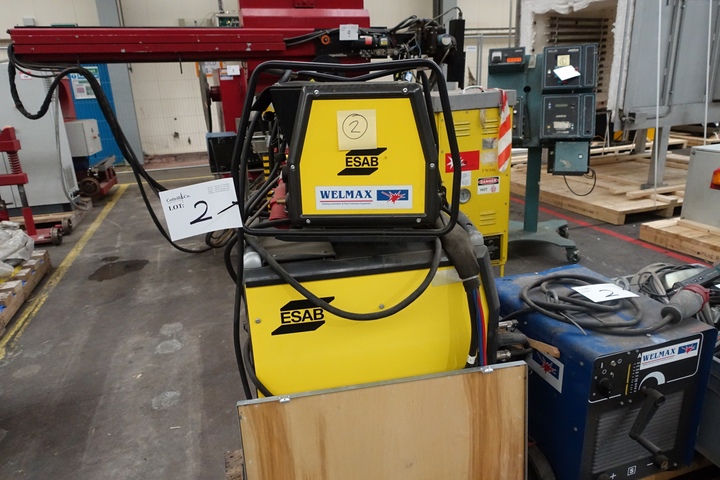

Esab Type PRC 33-90 Narrow Gap Welding System Head with Model Mechtig 4000i Welding Power Source PRC – 90 serial No. 803-006-9272 (2010) Features zig zag weaving movement and arc voltage control for high productivity and good improved welding qualities for tube welding including thick walled tubes. The tube welding tools are water cooled and incorporate special gripping jaws for securing and location of the tool on the tube PRC – 90 orbital-tig clamp on welder capacity 33 mm to 90 mm O.D. rotary speed 0.08 to 1.6 rpm tungsten electrode 1.6 to 2.4 dia filler wire dia 0.6 – 0.8 – 0.9 Mechtig 4000i Power Source control unit. Voltage 400v setting range 4 – 400a with fan control, cooling unit, overheating protection, water flow guard.

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

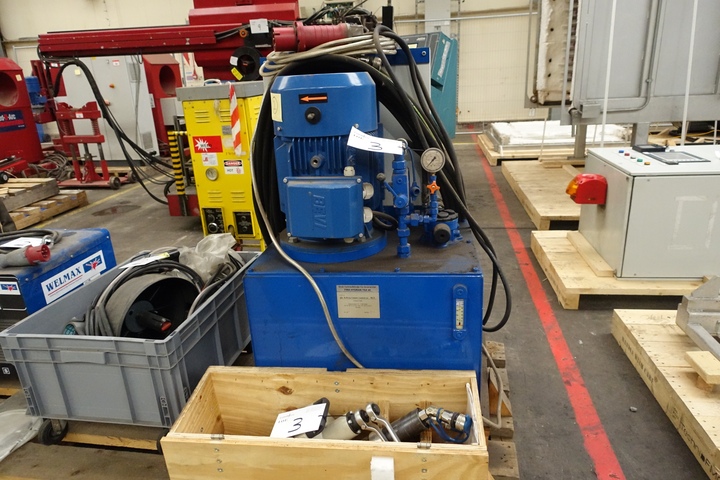

Fina Hydran Model TSX 46 Tube Weld Prep Machine

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

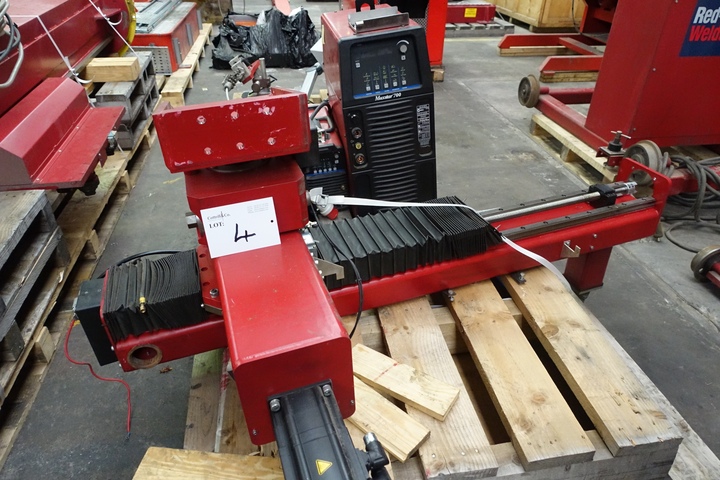

Hot Wire Tig Welding System (Dismantled), S/No. MP03TIS11009A Model RT 500 tig system developed by (WA Alloys) to weld various types of butt welds and is also able to weld external surfaces using tig and hot wire technique. The system uses a heavy duty column & boom supplied by A & N Plant for positioning with welding alloys computer controlled X & Y axis and manual angle rotation for fine control of the welding process. The machine has tig pulse power source Maxstar 700 and hot wire heating system with integrated water cooling for tig welding gun. The system has tilt turn rotation turntable positioner with 42” dia flange.

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

(2) A & N Vertical Rotating Turntable Positioners, Bore 14” outer flange 23” with self centering chuck and Reversible jaws. One positioner is powered with additional horizontal & vertical slide adjustment from a pendant control. Second turntable is a product support turntable.

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

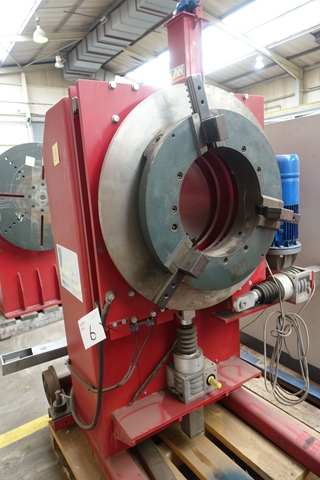

(1) A & N Vertical powered Rotating Turntable Positioner with additional horizontal 7 vertical slide adjustments, Bore 14” outer flange 23” with self centering chuck and reversible jaws, product support steady

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

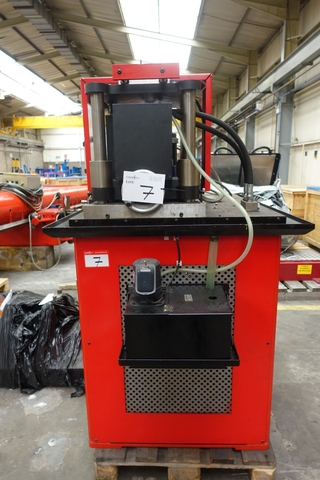

Roberts Glacier Model Clyde Static Fittings Prepper. This self contained unit with hydraulic power can be transportable or positioned in a workshop or on site in support of individual projects. Pipes / Flanges / Elbows are located in fixtures on the table for machining

Please Note: Fixture available for elbows photo image on machine table.  Fixture for straight pipes photo image shown on pallet.

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

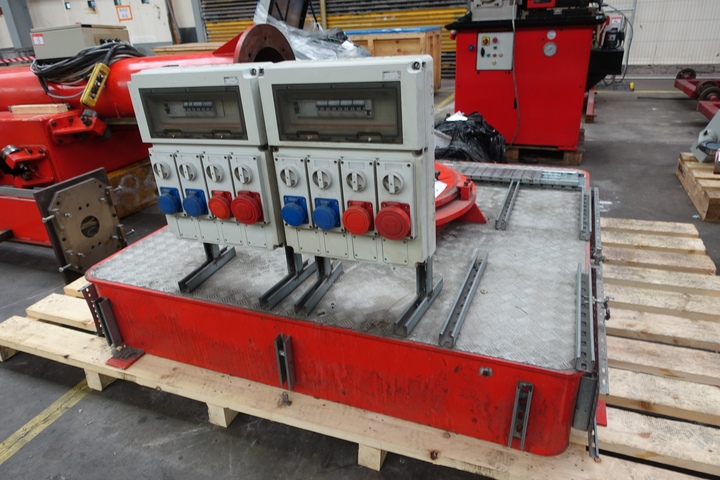

Heavy Duty Column & Boom with Base / No welding Head, Boom overall Length: 550mm, Arm overall Length: 4500mm, System dismantled with boxed Fronius Equipment consisting of Wire Mounts, Slider Arms, Cables, Hot Wire Unit, (2) Water Coolers

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

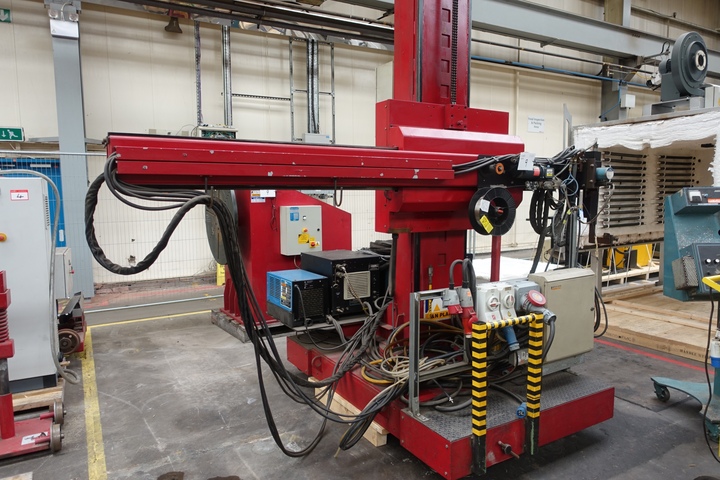

A & N Plant – Jetline Engineering Hot Wire Tig Pipe Welding System

The system has Jetline Model ALC/401/6 auto tig weld head with Jetline series 9500 controller. A & N heavy duty column & boom, vertical boom travel 1900 mm, horizontal boom travel 1500 mm, max & min height under boom 2700 mm / 800 mm with A & N model RHS 5000 vertical headstock positioner rotation speed 0.1 – 3.0 rpm Year 2003 *Retrofitted in 2016 from the Jetline oscillator drive to a Centent type CN0143 microstep step motor drive (RS363-5520)

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

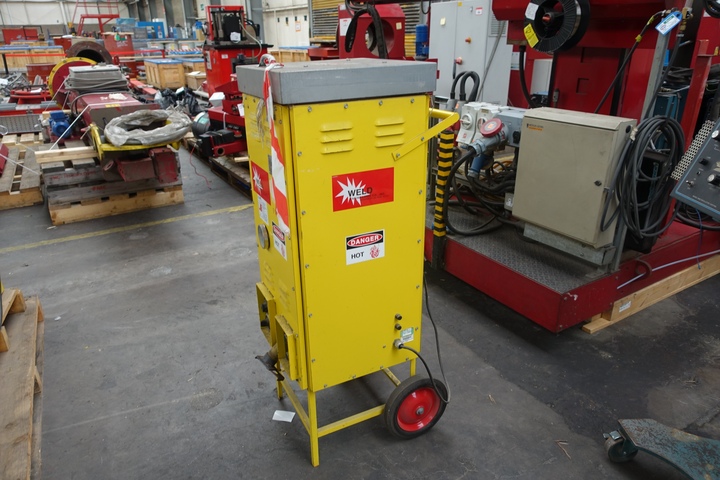

Portable Model PFO-100-AB Flux Hopper Oven (Weld Engineering Co) Programmable oven with typical capacity 100lb (45.4kg) of flux. 1000 watt total and uniform heating elements. Temperature range from 175 degrees F to 550 degrees F (79 degrees C to 288 degrees C) Removable debris and slag screen.

Please Note: This lot is located in Dunfermline, Scotland. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.
