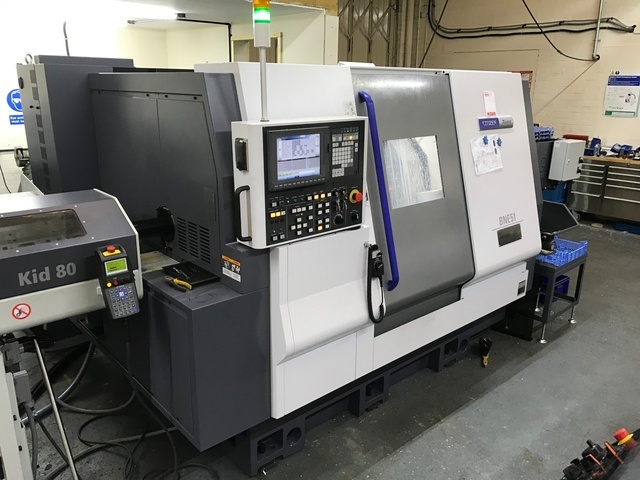

Citizen Miyano BNE-51MSY CNC Turning Centre with Mitsubishi Control, LNS MH500 Swarf Conveyor, Parts Catcher, Swarf Tipping Skip, Hydra Jet TSB10-1000-3 High Pressure Coolant System, Compliment of Toolholders for each Turret, Milling Tool Holder, 3 Additional Driven Tools, 10 x Static Tool Holders, Power on Hours: 752, Runnings Hours: 285. S/No. DN0115 (04/2018) & Iemca Kid 80/16 Short Magazine Bar Feed. S/No. 021821QA02 (2018) Hydrafeed Rota-Rack MP Parts Accumulator

Please note: 2017 DP Technology Espirit CAD/CAM Software is potentially available with this machine, please contact either Simon Halsey or Martin Cottrill (Tel. 0121 328 2424) for further information.

Please Note: This lot has been removed for convenience of sale, located in Birmingham. A dismantling and loading onto suitable vehicle charge of £650 will be automatically added to your invoice should you be successful in purchasing this item, blocking and securing will be at the cost of the purchaser.

Mazak Variaxis J600 5 Axis Vertical Machining Centre with Mazak SmoothG Control, Simultaneous 4-Axis Capabilities and A-axis Indexing, 4+1, 12,000rpm, Auto Tool Breakage Detection, 30 Station ATC, CAT40, Max Work dia 730mm, Max Work Height 450mm, 7.5kw Motor, A-axis 120 to +90 degrees, C-axis 360,000 degrees, X-axis 850mm, Y-axis 550mm, Z-axis 510mm, Table size 600mm dia, 500mm width, 15 Bar Coolant, Chip Conveyor, Control Options: EIA/ISO, Thread Cutting, Inverse Time Feed, G37 Auto Tool Measurement, Polar Co-ordinates, Seq Number Comparison Stop Function, Additional Workpiece Co-ordinate System, User Macro, Tapping/Boring Tornado, EIA Pattern Cycle, Tilted Working Plane, Smooth Standard Software. (2017)

Please Note: This lot is located in Sussex and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

Mazak Quickturn 200MSY Turning Centre - SmoothG, 500mm Bed, Universal, 2017, Driven Tooling, Sub-spindle, Y-axis with Mazatrol Smooth Control, 8" 3-Jaw Chuck Main Spindle, 6" Chuck on Sub-Spindle, Collet Chucks, Maximum Swing 695mm, Standard Machining dia 276mm, Maximum Machining dia 380mm, Bar Capacity Work 65mm dia, Main Spindle Speed 5,000rpm, A2-6 Spindle Nose, 6,000rpm on Sub-Spindle, Spindle Nose A2-5, 12 Station Turret, Travel X-234mm, Y-10mm, Z-625mm, W-555mm, Driven Tool Holders, Parts Catcher, High Pressure Coolant, Swarf Conveyor, MX1B, Bar Feeder, BSU

Please note: The Hydrafeed ‘Rota-Rack’ is not included in this lot.

Please Note: This lot is located in Sussex and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.

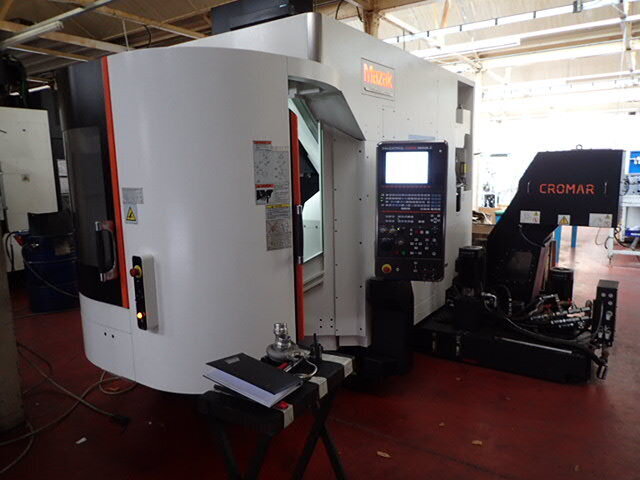

Mazak Variaxis J500 5-Axis Twin Pallet Vertical Machining Centre with Mazak Matrix 2 Control, Simultaneous 4-Axis Capabilities and A-Axis Indexing, 4+1, 12,000rpm, Through Spindle Coolant, Auto Tool Breakage Detection, 18-Station ATC, BT40, Max Work dia: 500mm, Max Work Height: 350mm, 11kw Motor, A-axis: 150 degrees, C-Axis: 360,000 degrees, X-Axis: 350mm, Y-Axis: 550mm, Z-Axis: 510mm, Swarf Conveyor, Micromag in-line Filter, Control Options:EIA, Spiral, EIA 3d comp, Rotation, Geometric, Scaling, EExt-Data I/O, Shape Comp, Thread, Inverse Time, Auto TLM, Polar coordinates input, Comparison stop, G54.1, Sync Mill Tapping, GOO Slope const, Variable 600 sets,  EIA Helical Tap Cycle, EIA Pattern Cycle, Tilted Working Plane, NC 5th-Axis, Pitch Error Comp, Power On: 5491Hrs, Auto Op: 3439Hrs, Auto Cut: 3368Hrs, Total Cut: 1263 Hrs. S/No. 264689 (2015)

Please Note: This lot is located in Sussex and will be loaded free of charge to a suitable vehicle. Blocking and securing will be at the cost of the purchaser.
