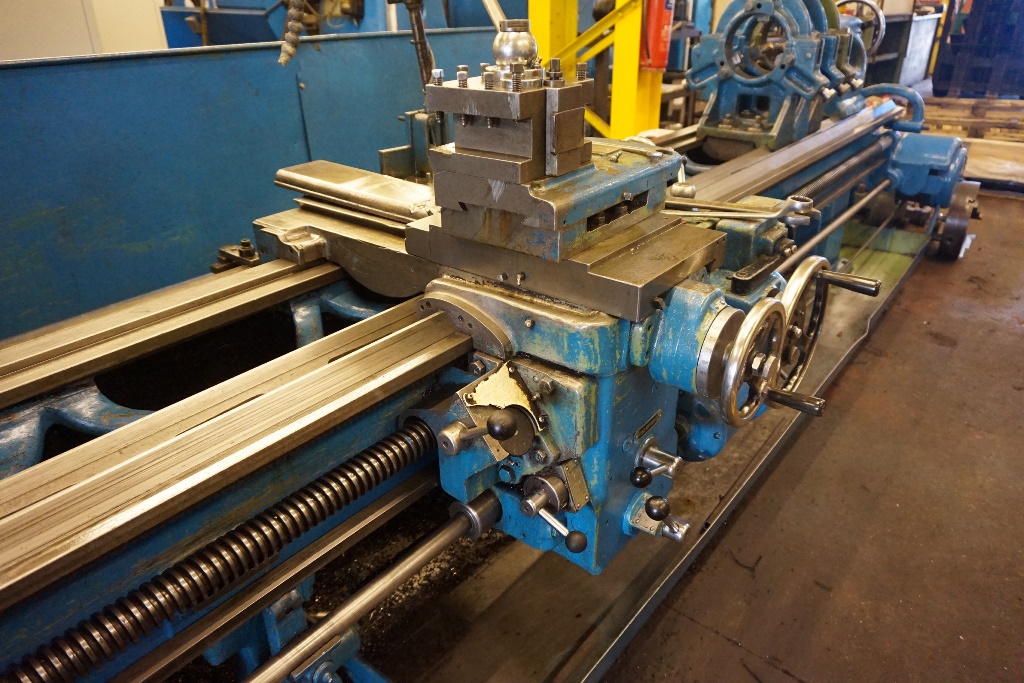

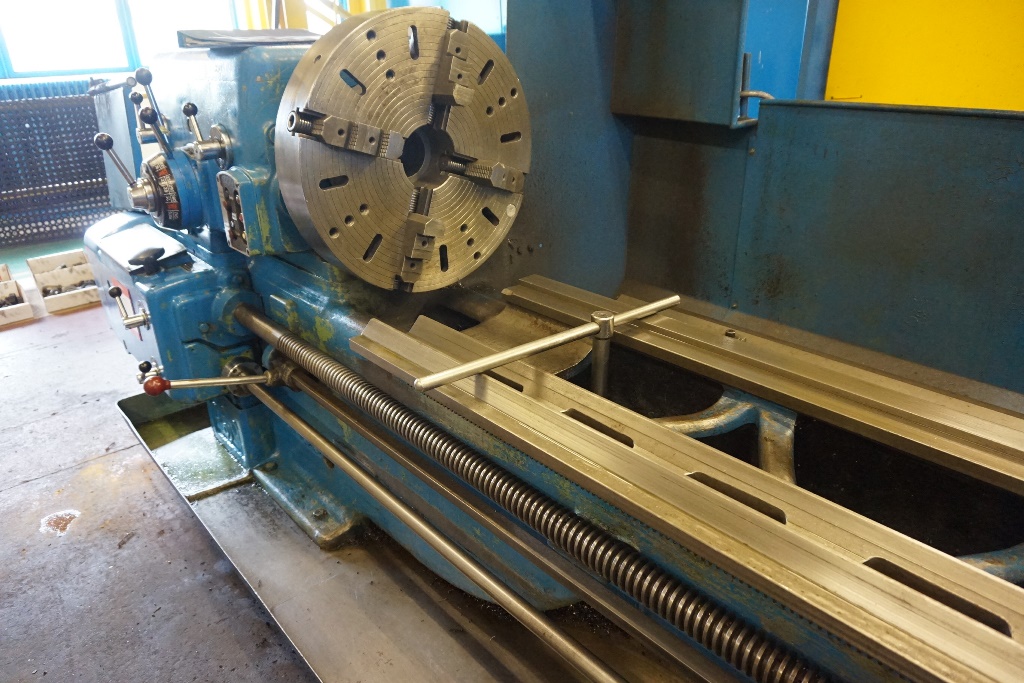

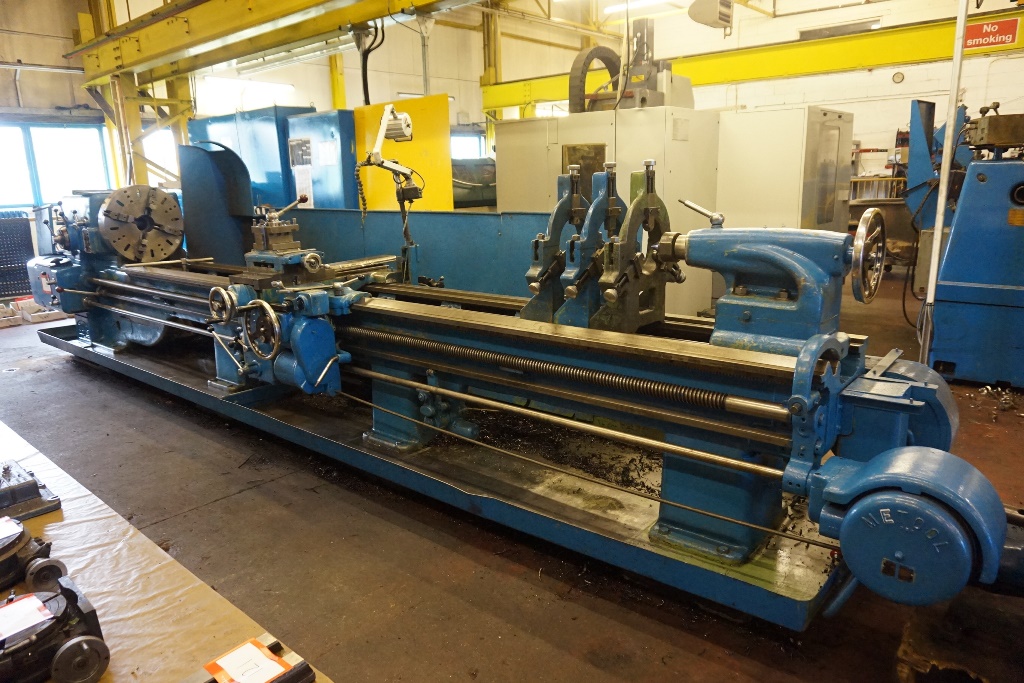

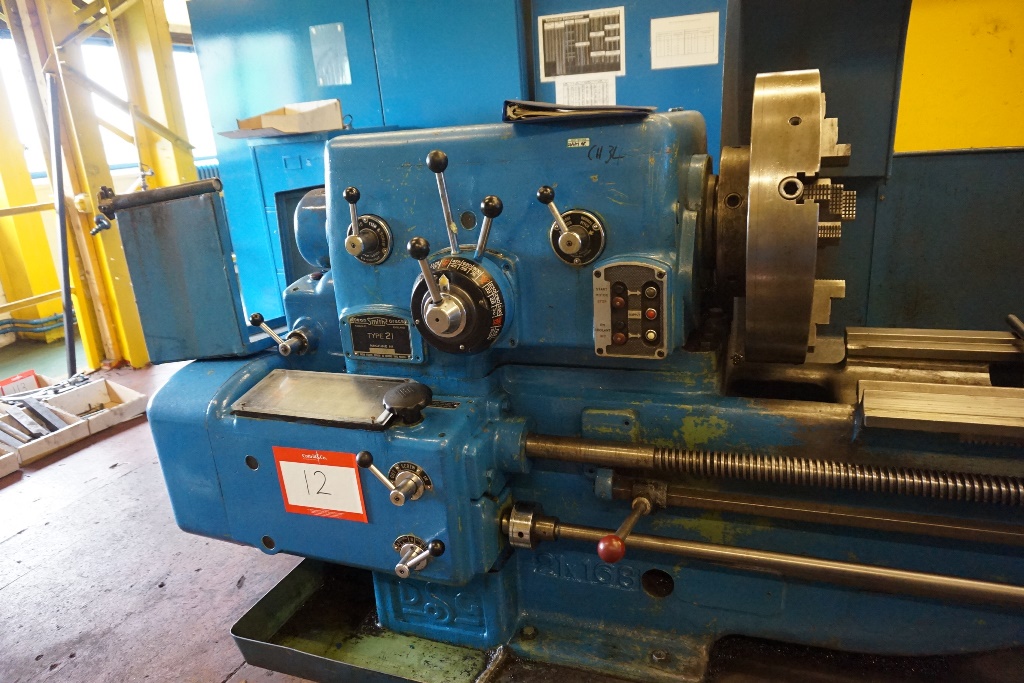

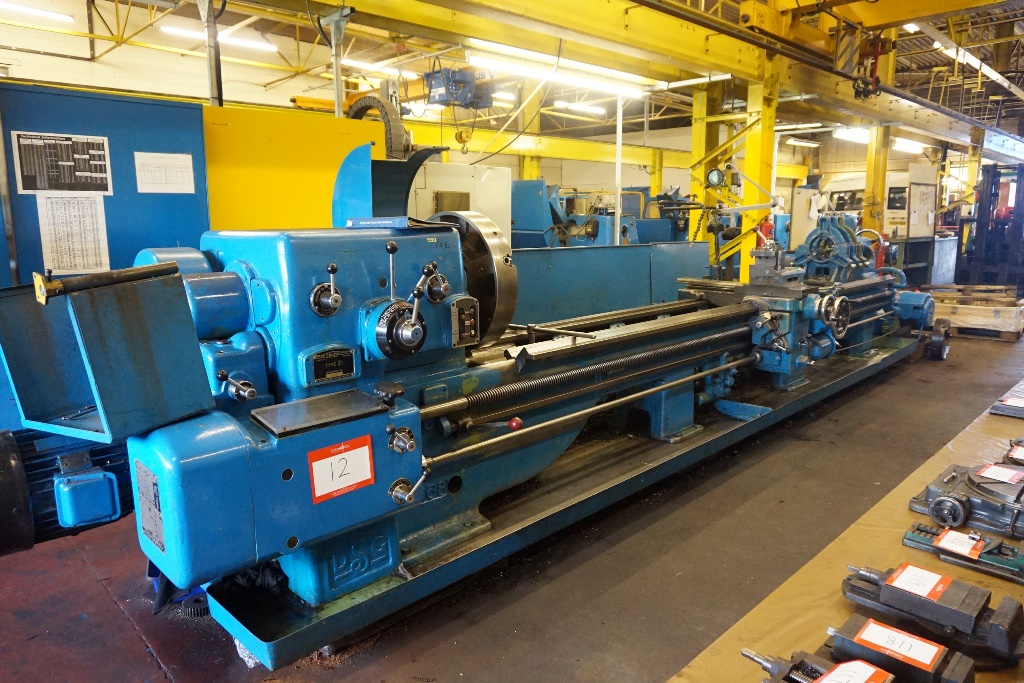

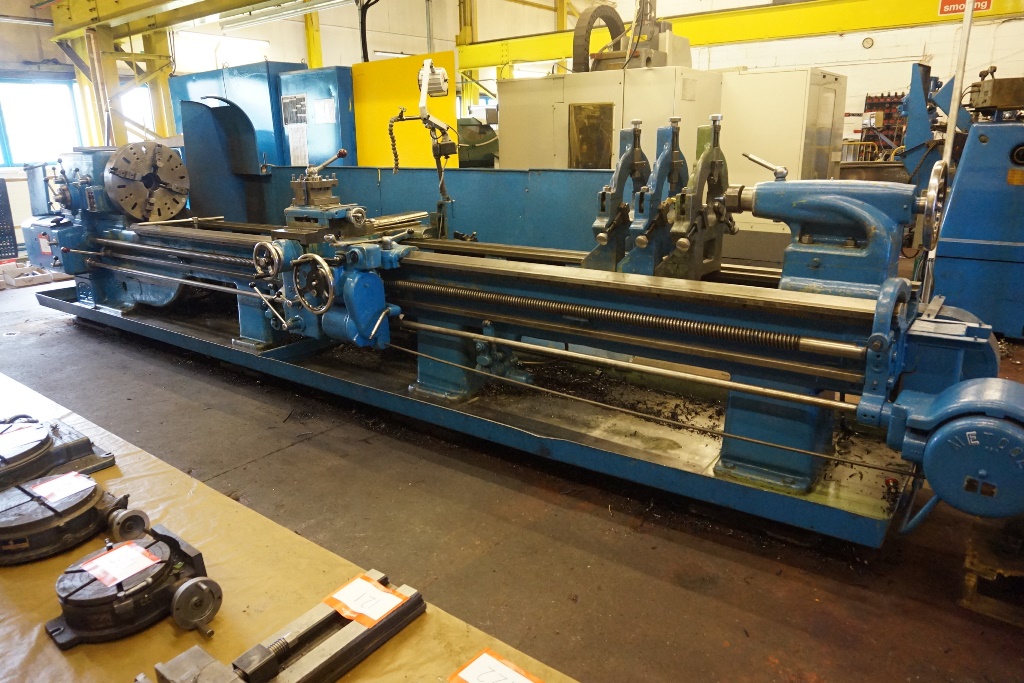

Lotto 12: Dean Smith & Grace Type 21 x 168 Straight Bed Lathe

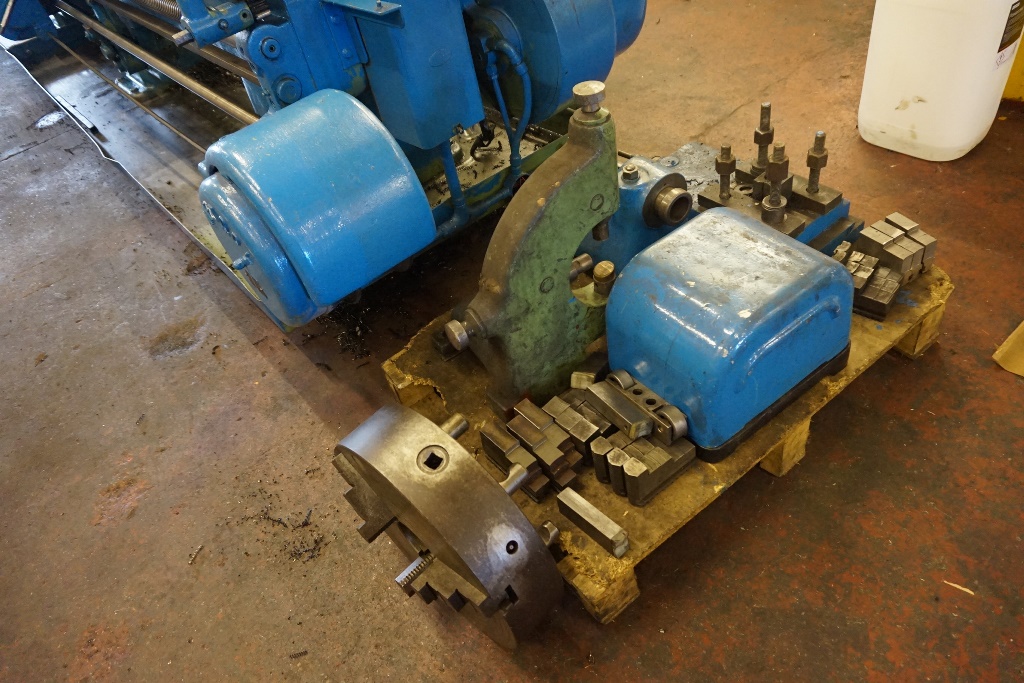

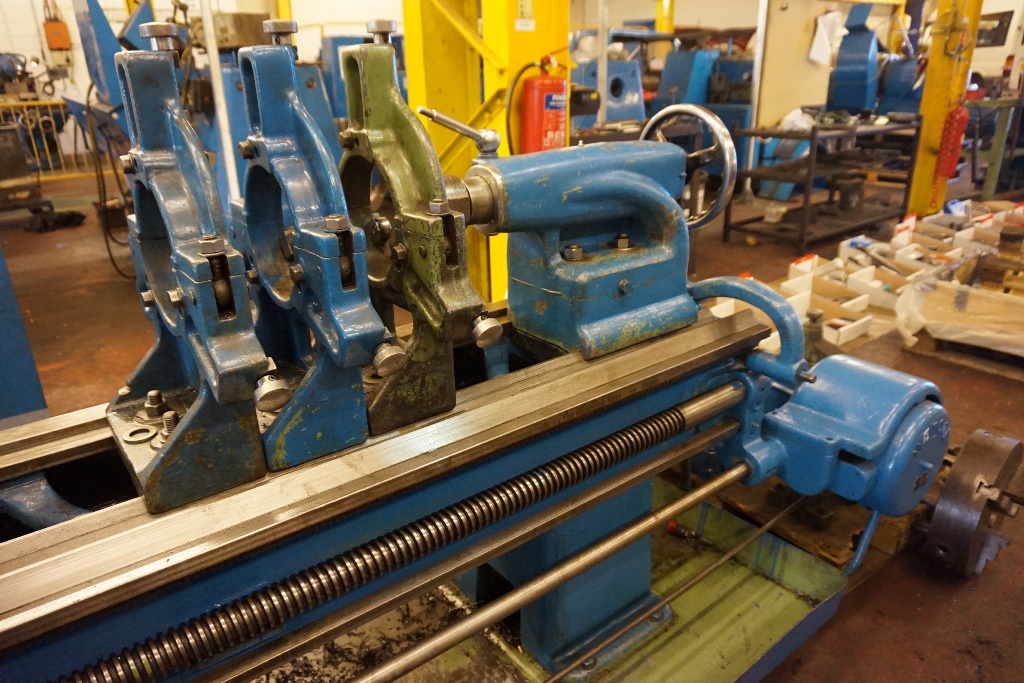

Dean Smith & Grace Type 21 x 168 Straight Bed Lathe, Swing Over Bed 590mm, Swing Over Saddle 400mm, Maximum Distance Between Centres 4267mm, Spindle Bore 92mm, Spindle Speeds 10 – 800rpm, Feeds Sliding 0.0014 – 0.08 Inch Per Rev, Surfacing 0.0007 – 0.04 Inch Per Rev, Complete With 3 &4 Jaw Chucks, 3 3 Point Fixed Steadies, Travelling Steady, Cross Slide Drill Attachment, Rapid Power Traverse, Screw Cutting, Change Gears, Motor 15HP, Electrics 415v, 3ph, 50 Cycles, approximate Dimensions 7100 x 1650 x 1500mm, Approximate Weight 7500kg, S/No. 35434-10-64

Please Note: All lots are located in Thornaby on Tees. Unfortunately there are no loading facilities available on site. Dismantling & loading will be at the cost of the purchaser.
