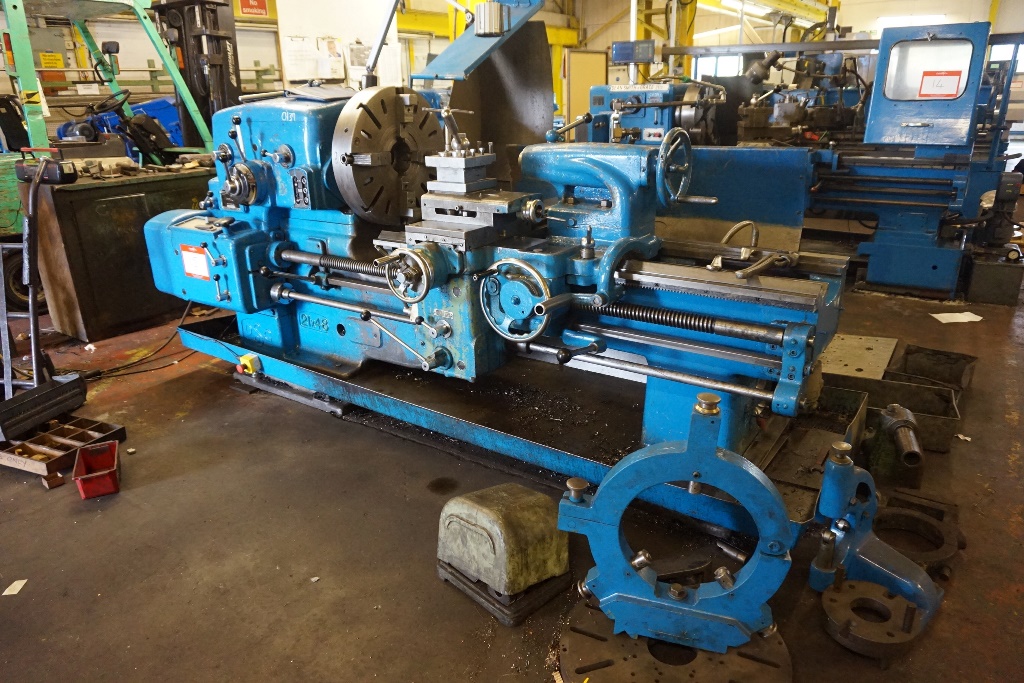

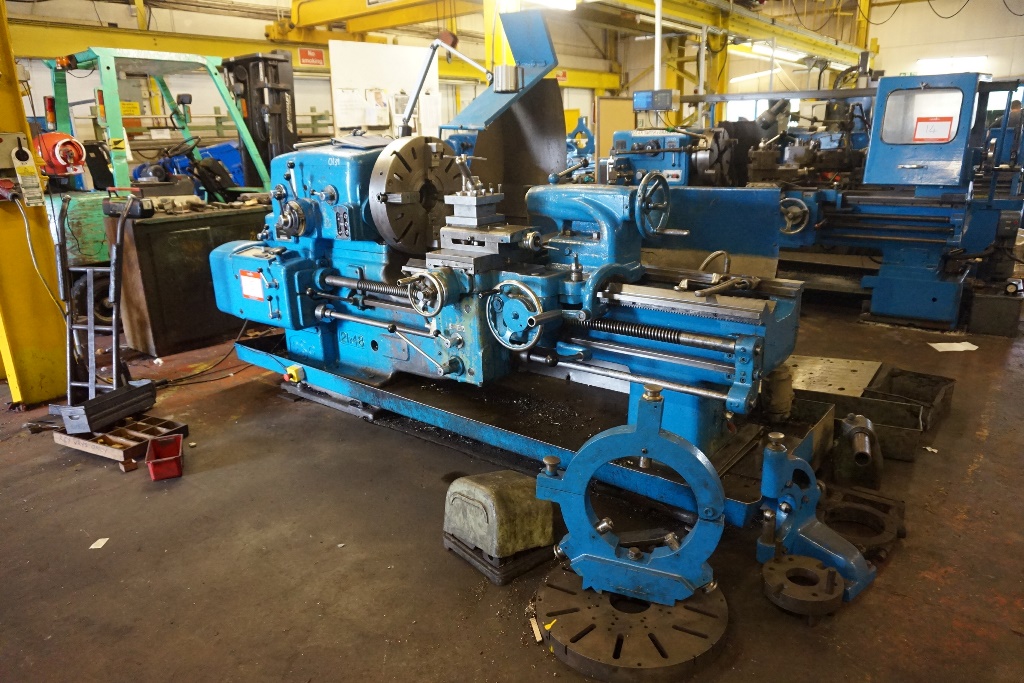

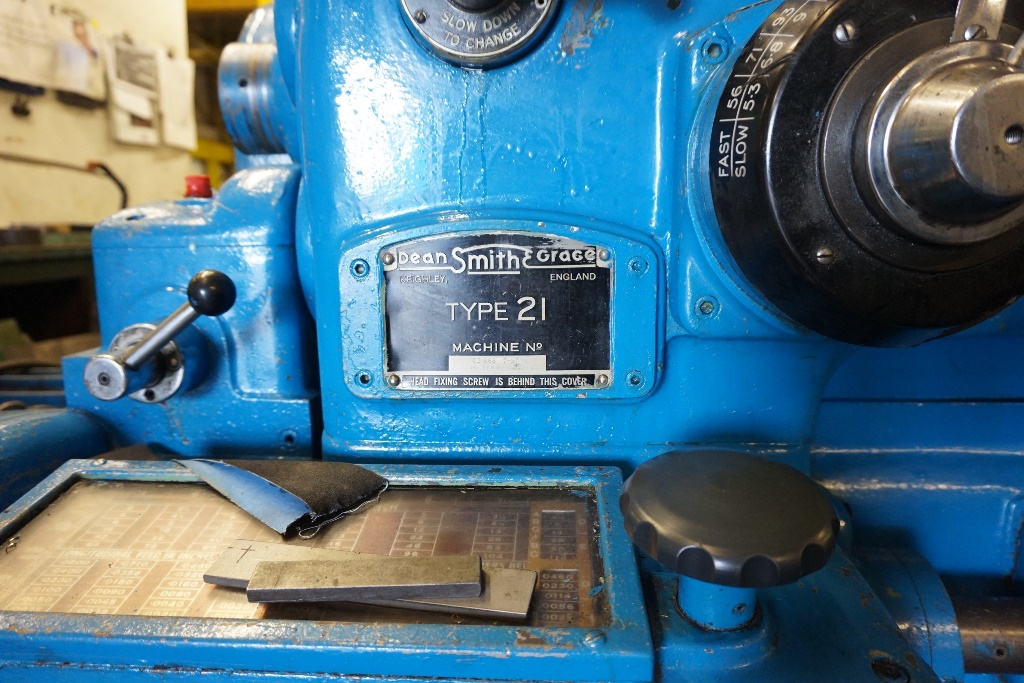

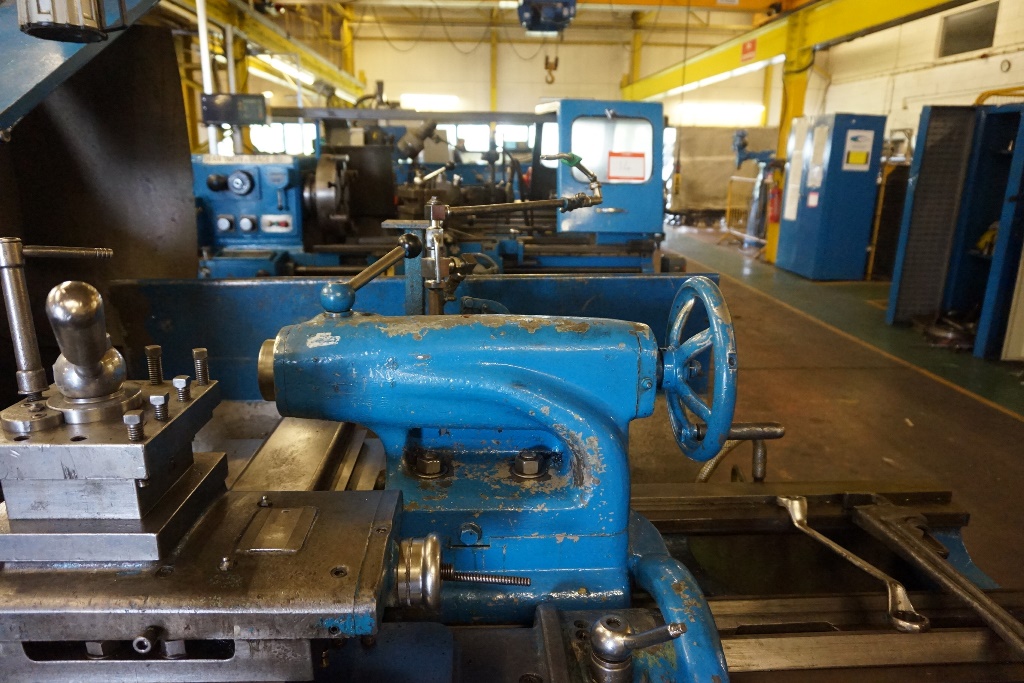

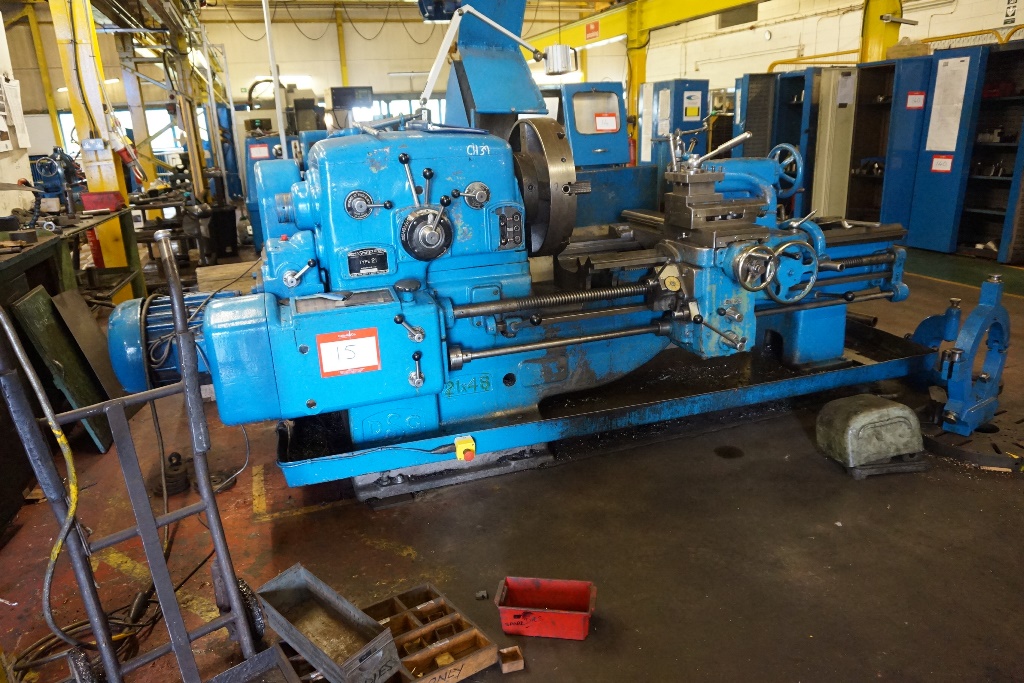

Lotto 15: Dean Smith & Grace Type 21 x 48 Gap Bed Centre Lathe

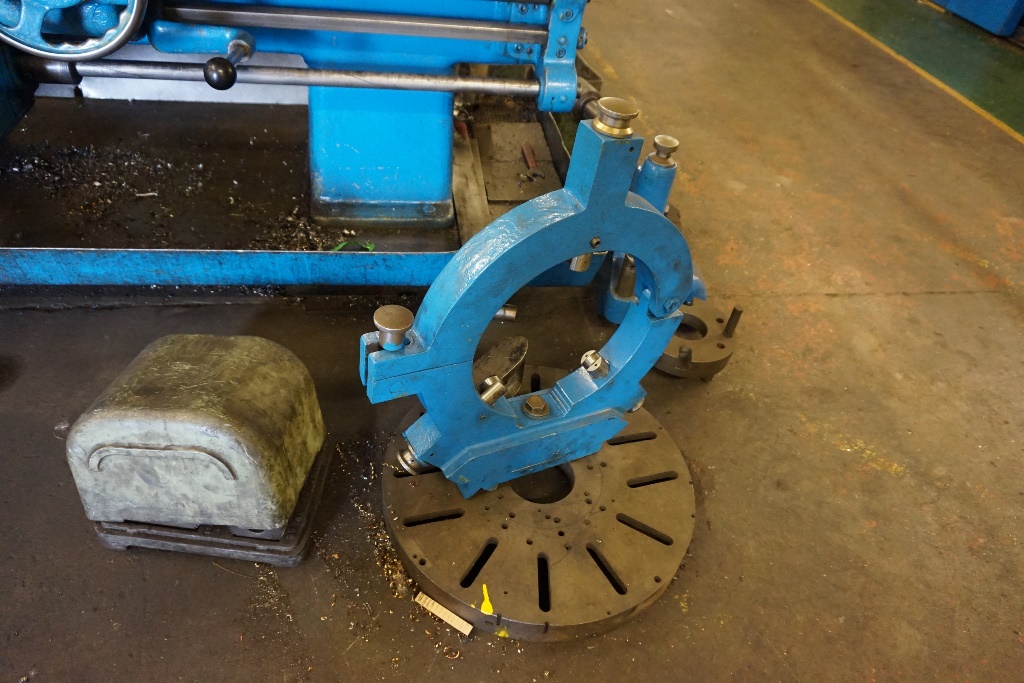

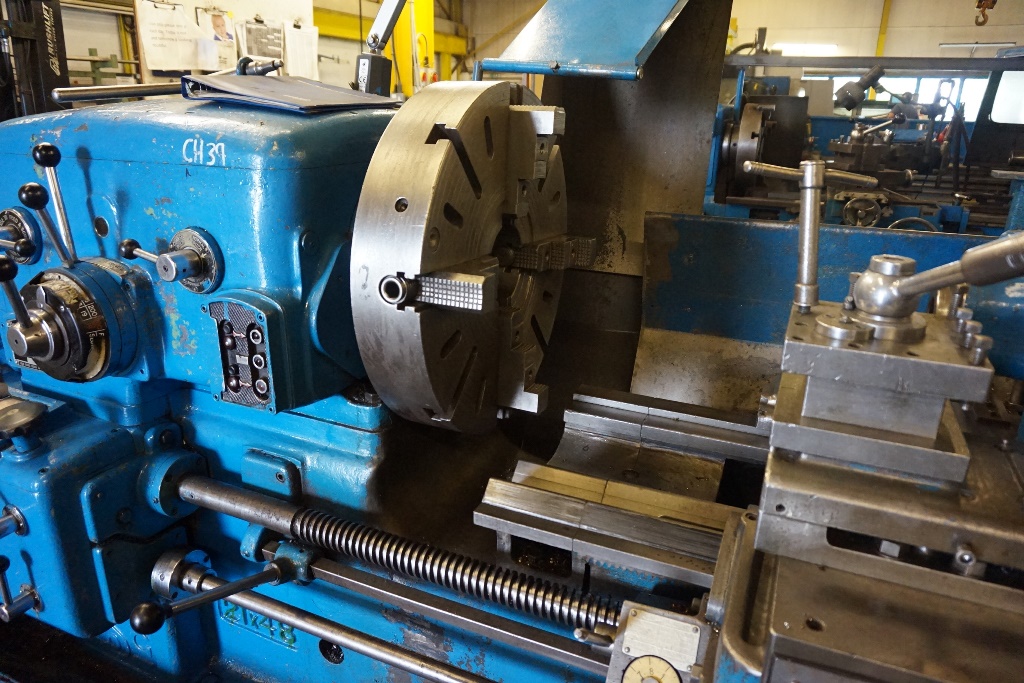

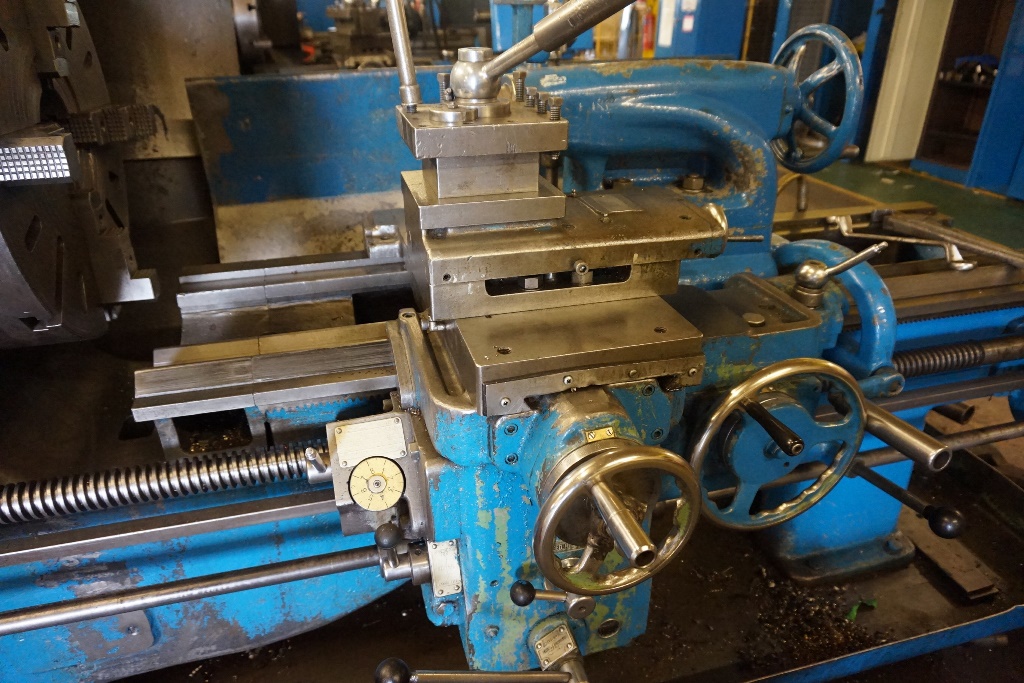

Dean Smith & Grace Type 21 x 48 Gap Bed Centre Lathe, Swing Over Bed 590mm, Swing Over Saddle 380mm, Swing in Gap 920mm, Maximum distance Between Centres 1220mm, Spindle Bore 92mm, Spindle Speeds 5.3 – 600rpm, Feeds Sliding 0.0014 – 0.08 inch per rev, Surfacing 0.0007 – 0.04 inch per rev, Complete With 4 Jaw Chuck, Cross Sliding Drill Attachment, Lovo Light, Coolant, Motor 15HP, Electrics 415v, 3ph, 50 Cycles, Approximate Dimensions 3700 x 1700 x 1500mm, Approximate Weight 4000kg, S/No. 31868-
7-57

Please Note: All lots are located in Thornaby on Tees. Unfortunately there are no loading facilities available on site. Dismantling & loading will be at the cost of the purchaser.
