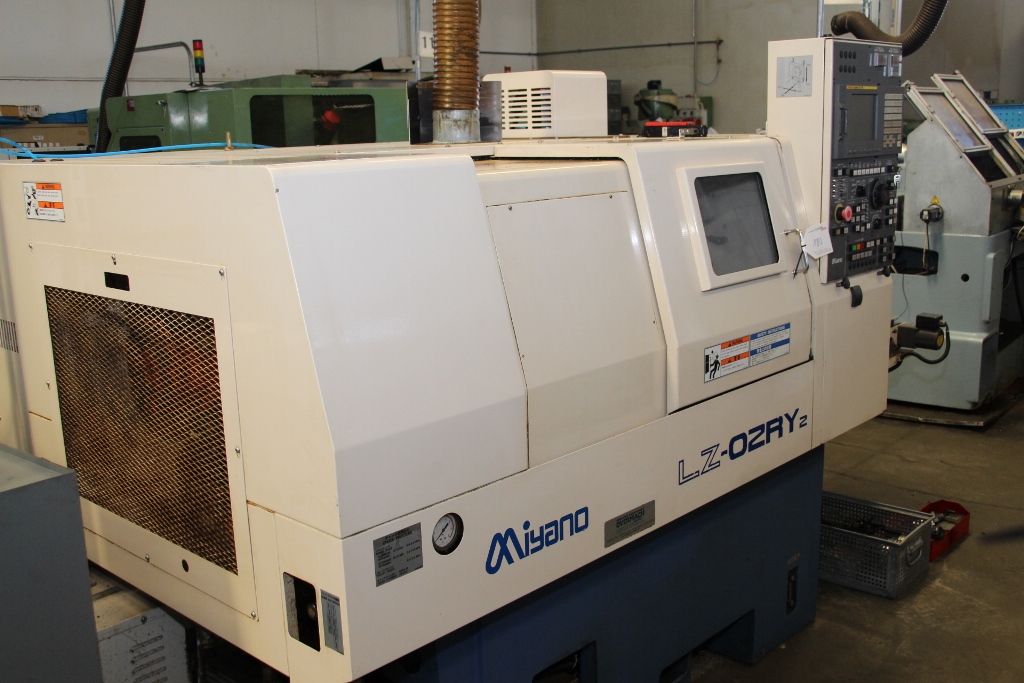

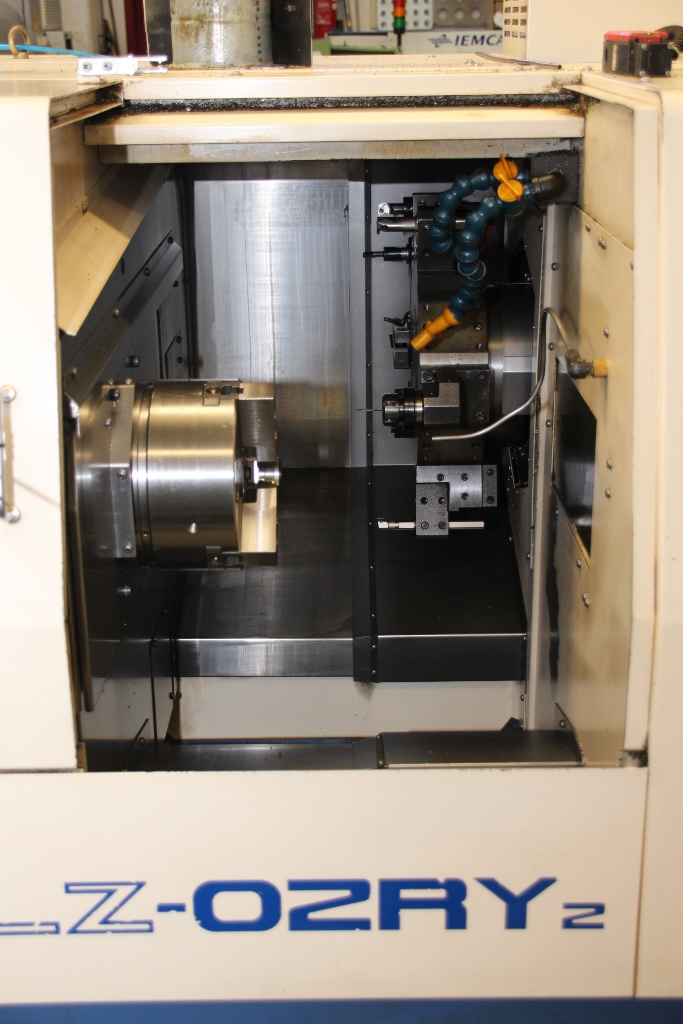

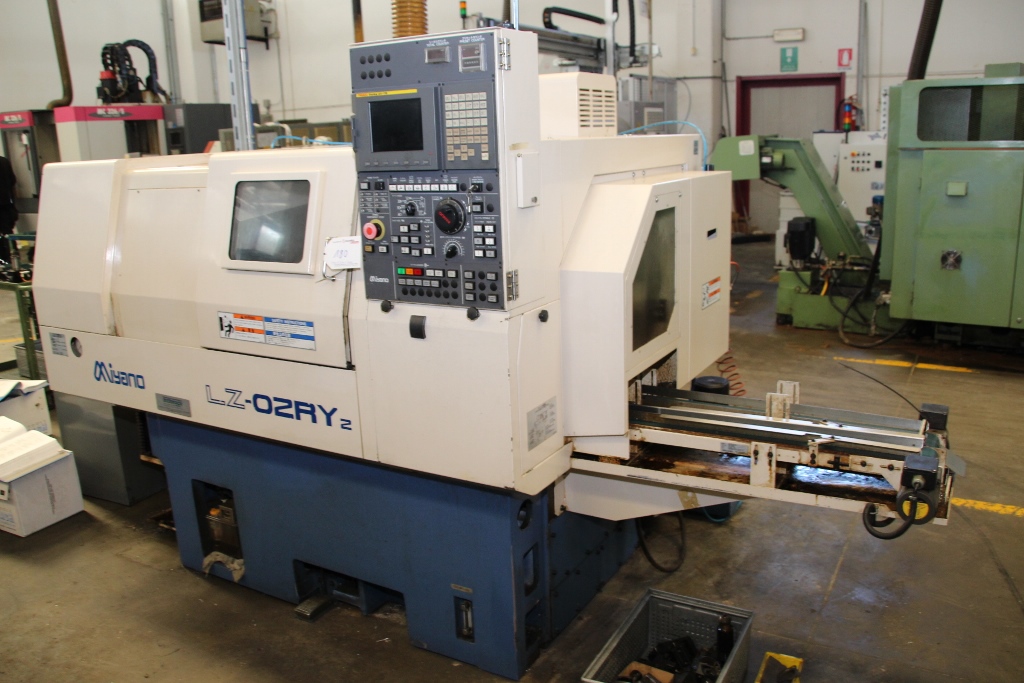

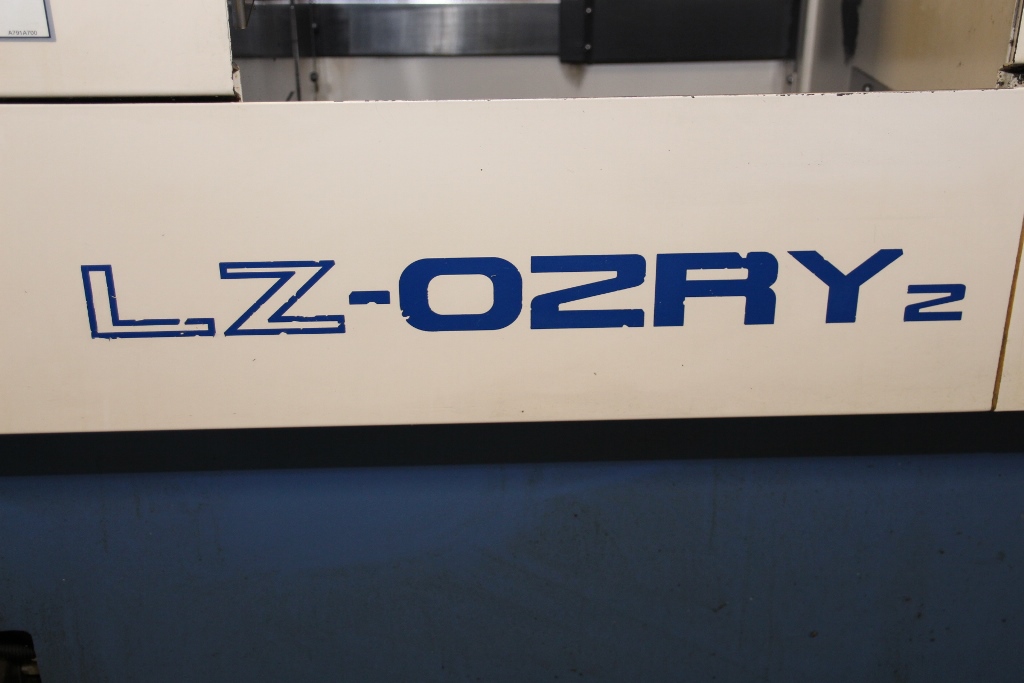

Lotto 180: Miyano LZ-02 Ry 2 CNC Lathe

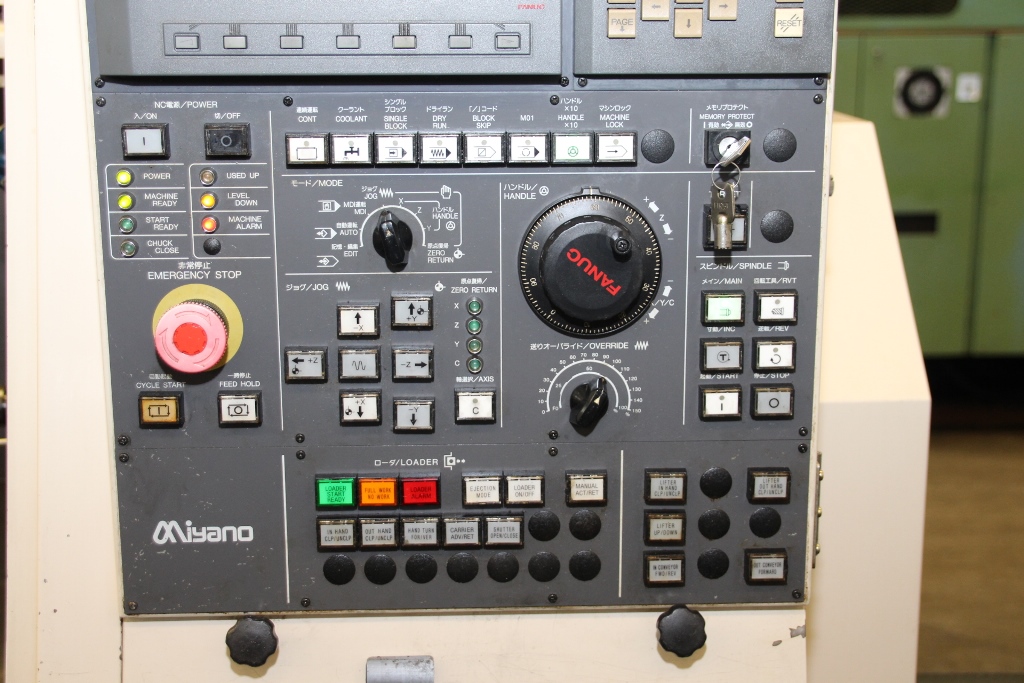

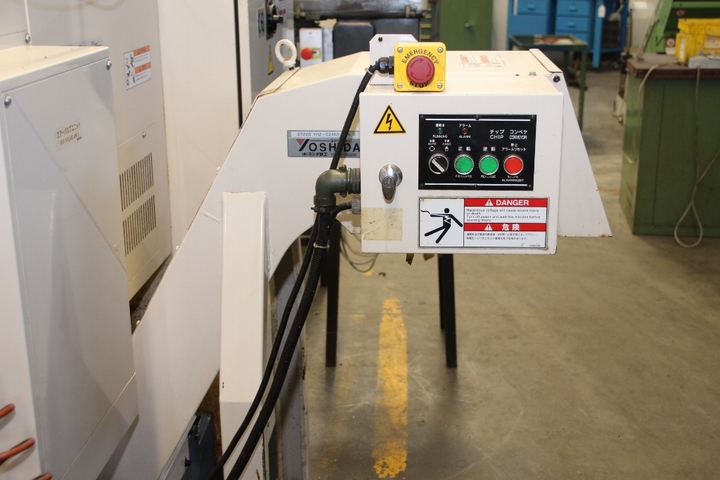

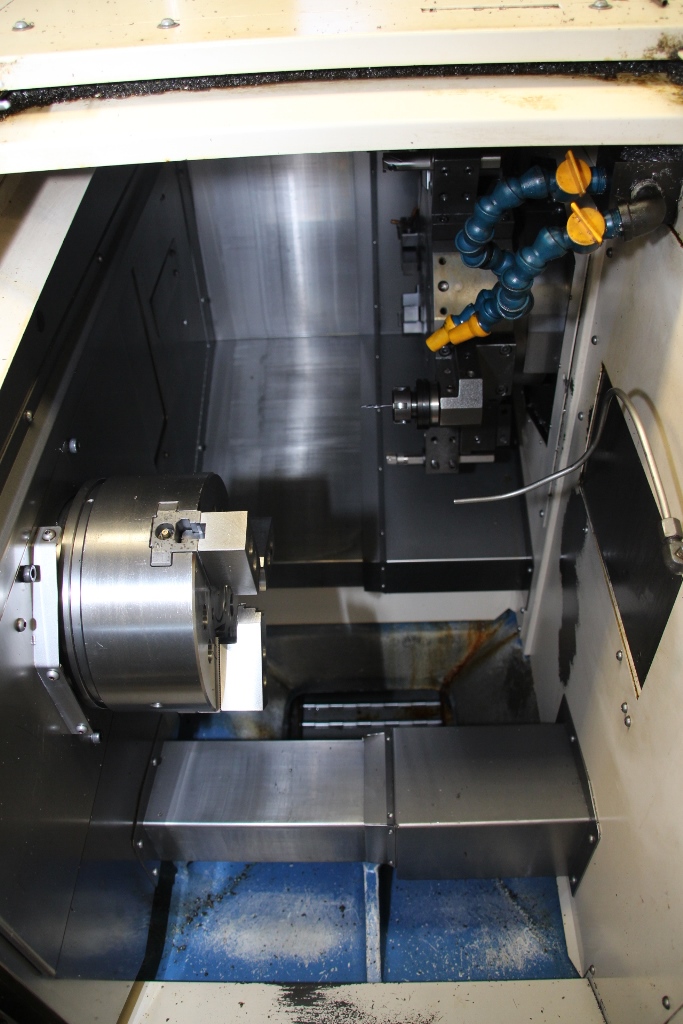

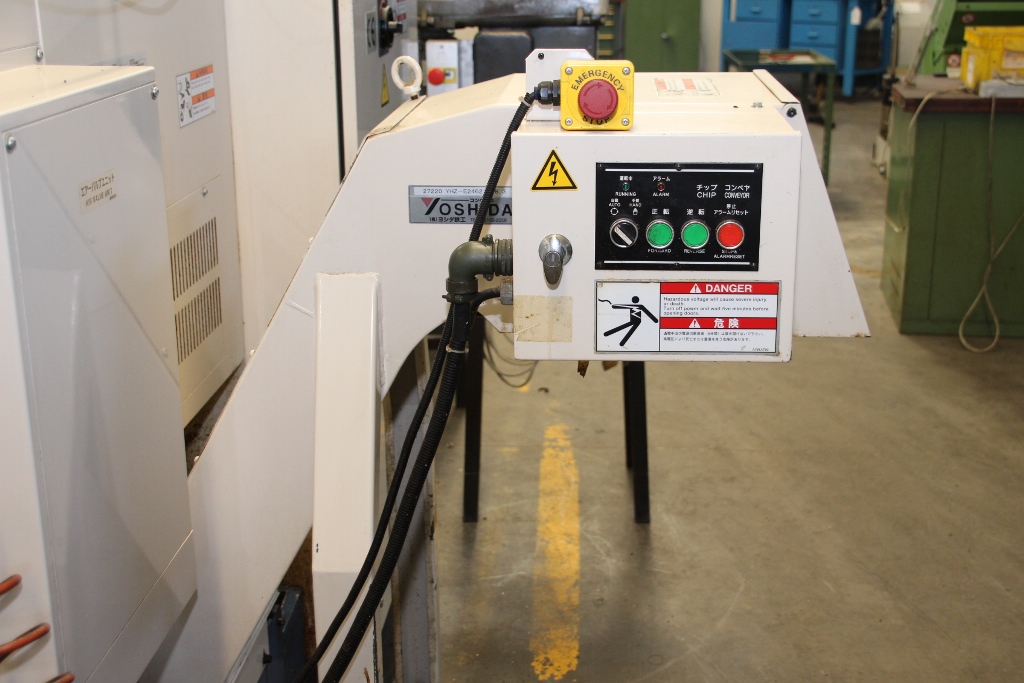

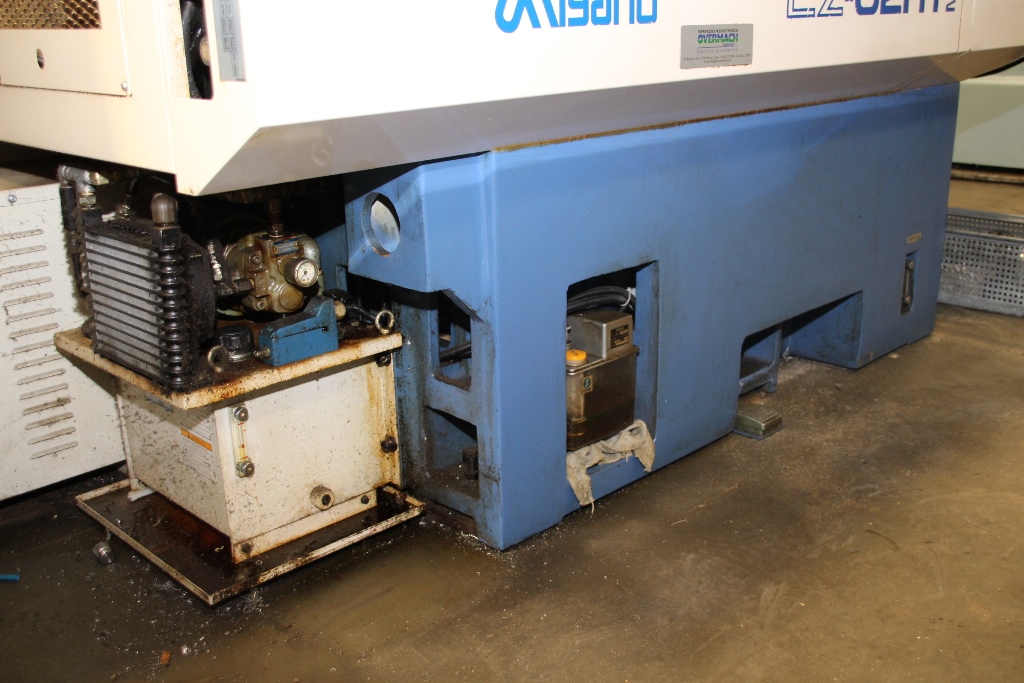

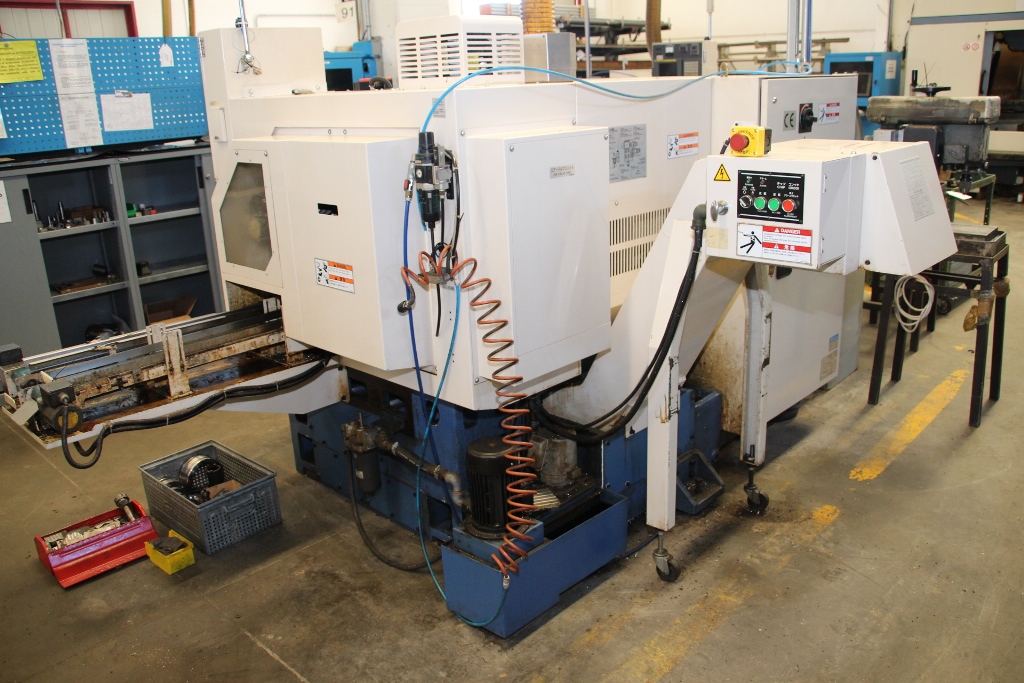

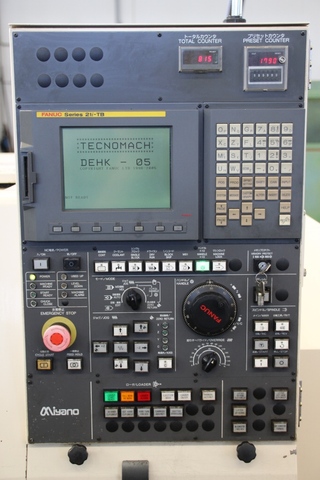

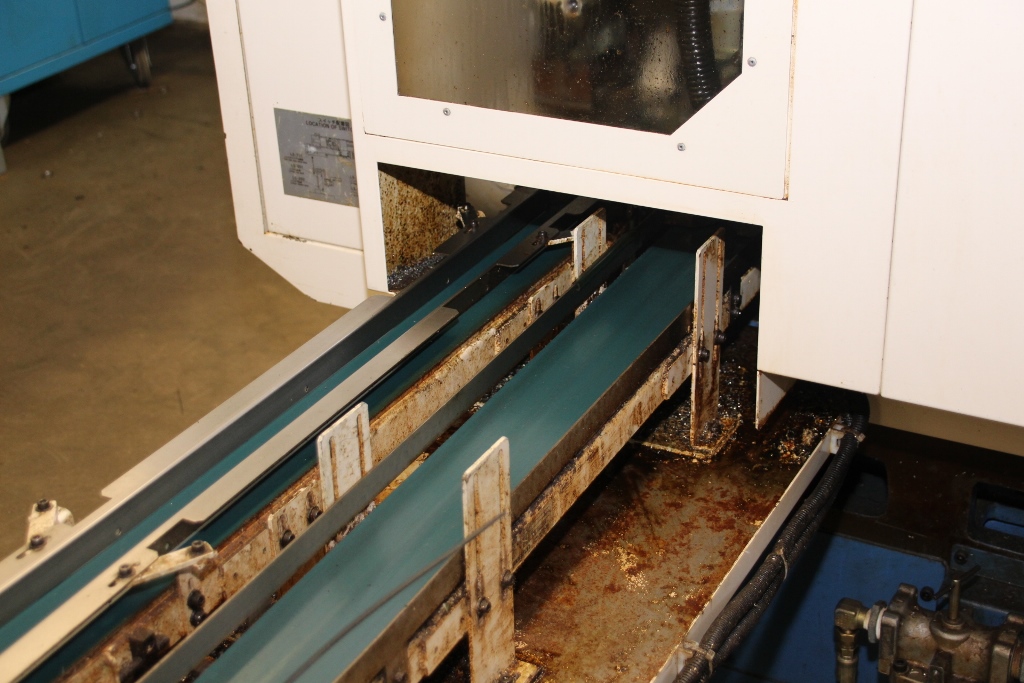

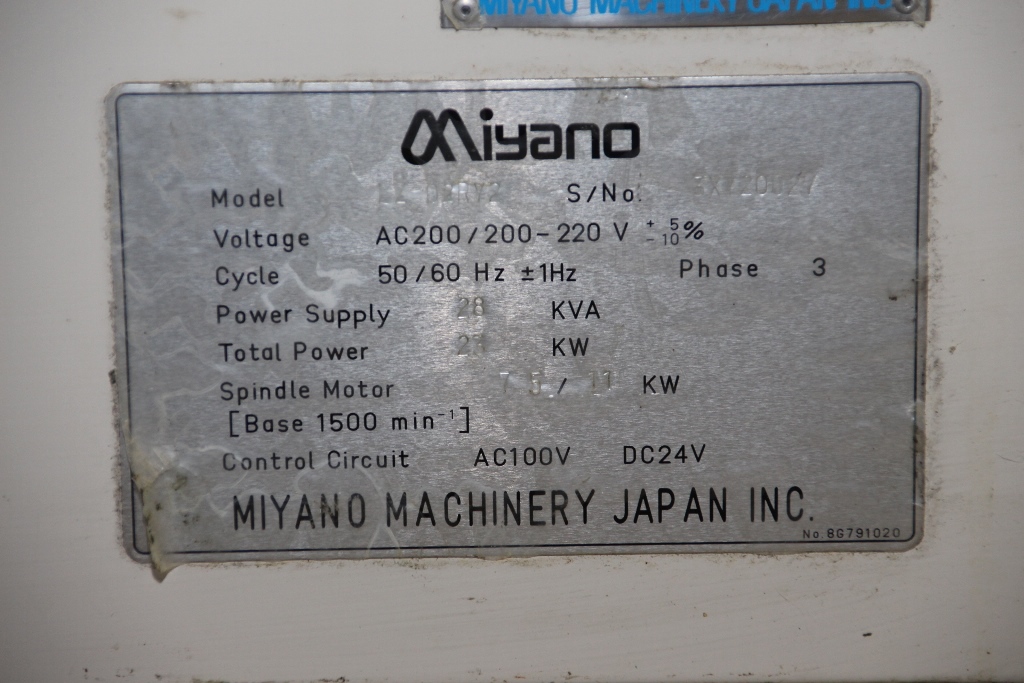

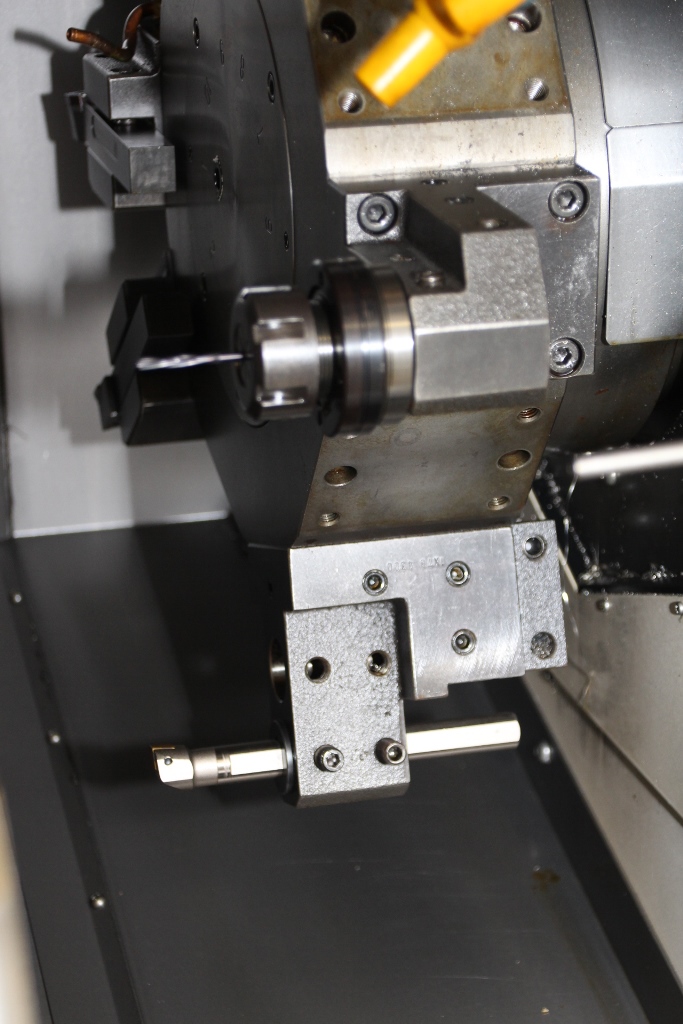

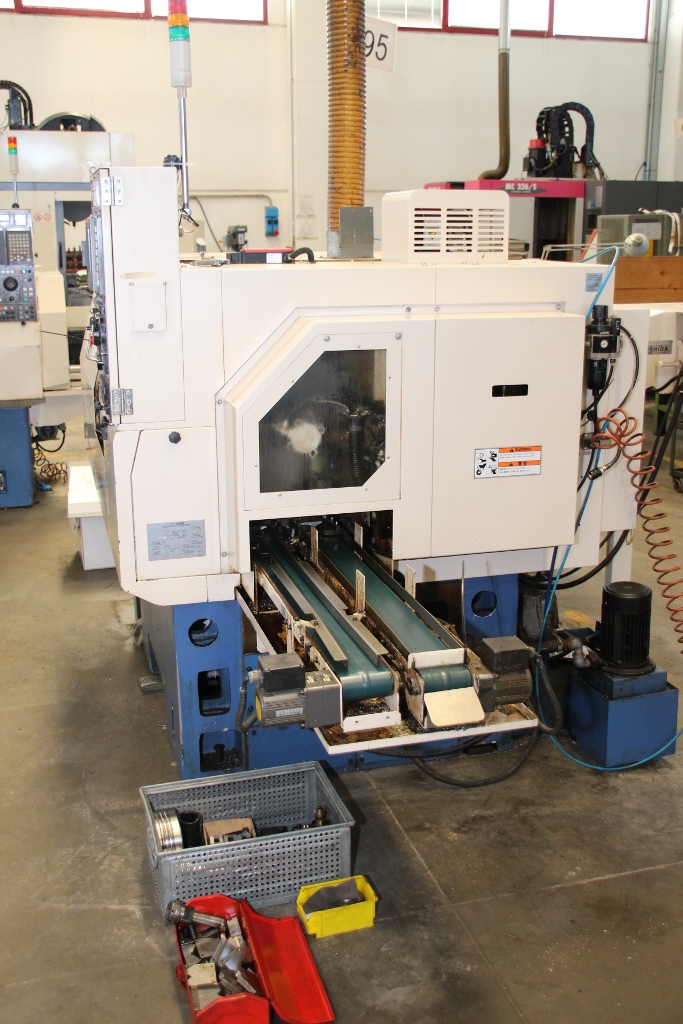

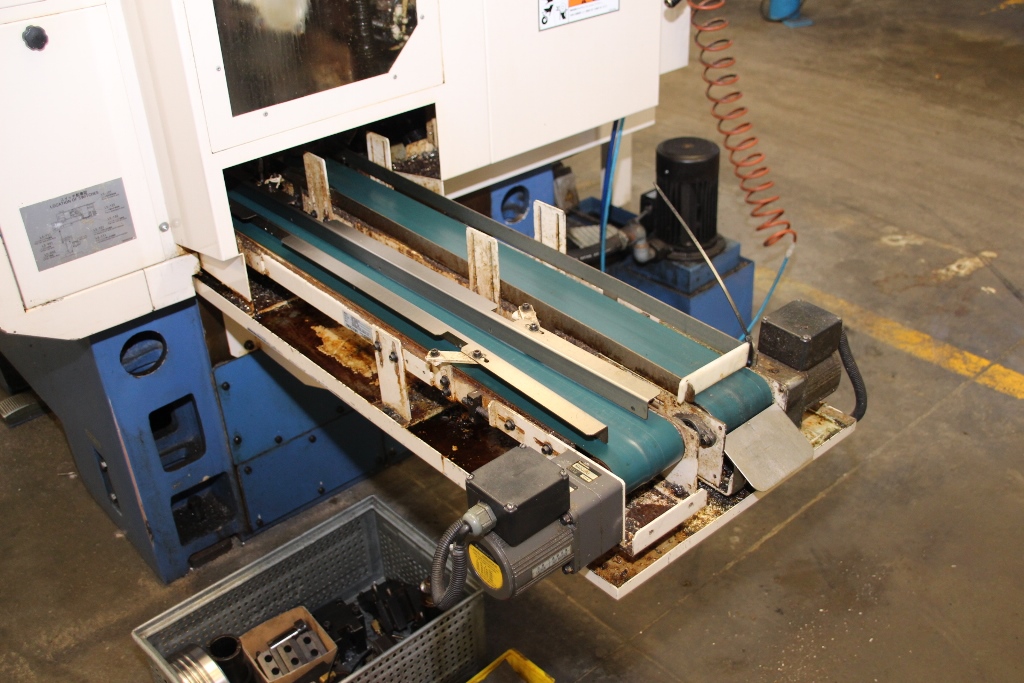

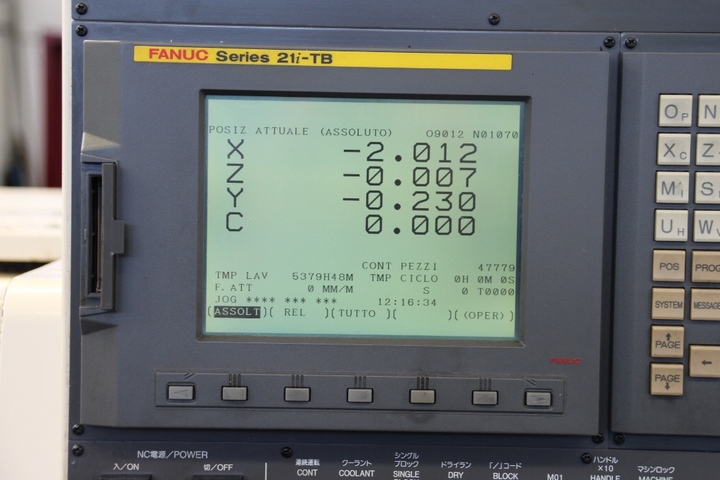

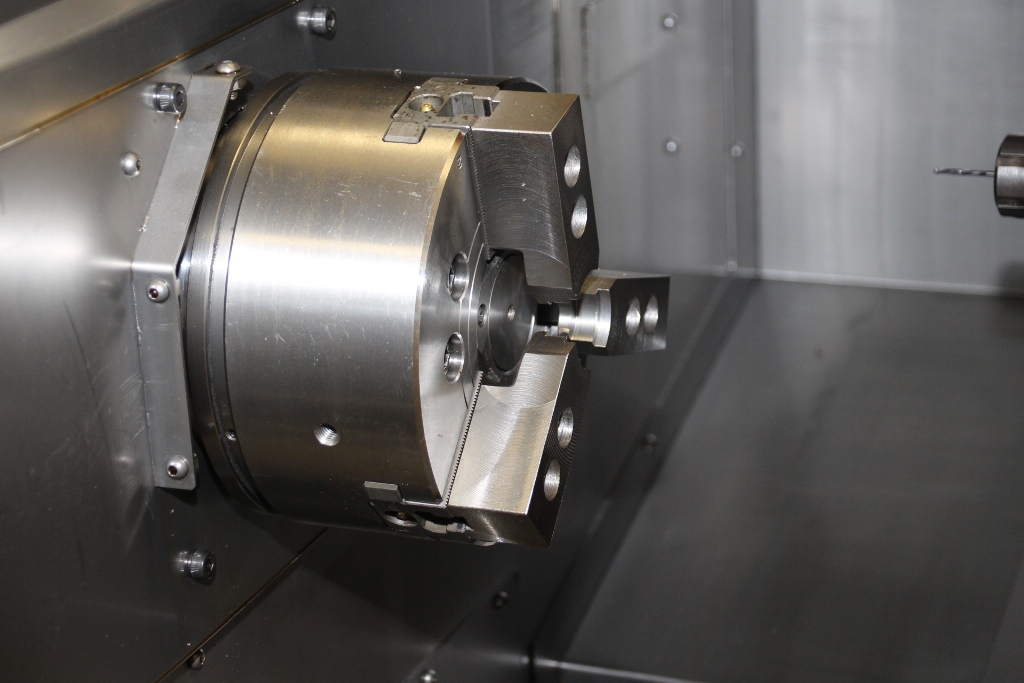

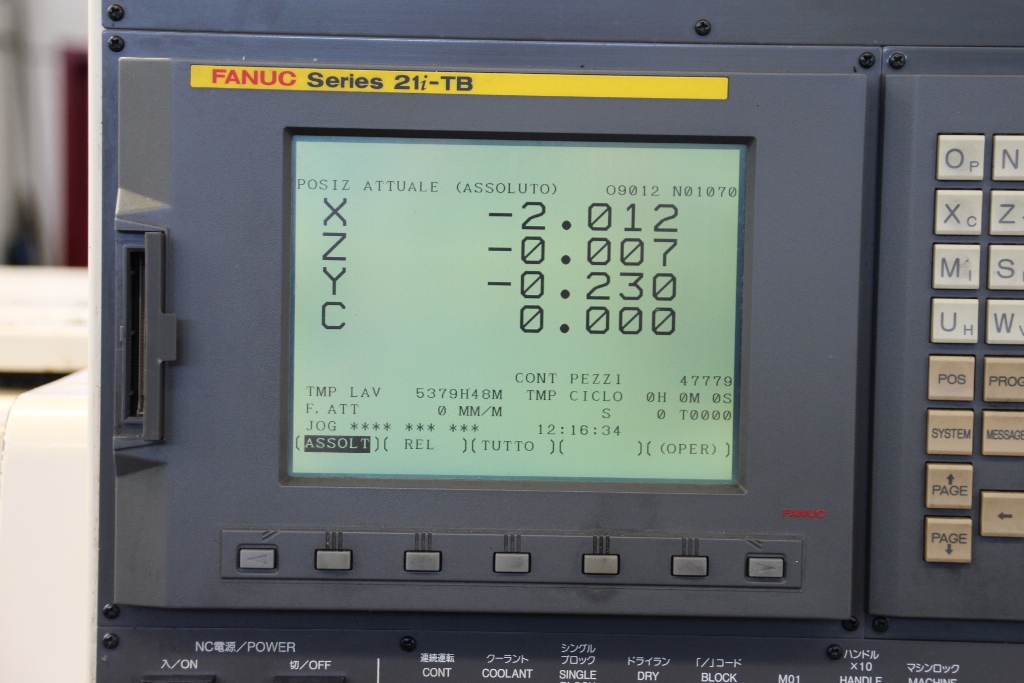

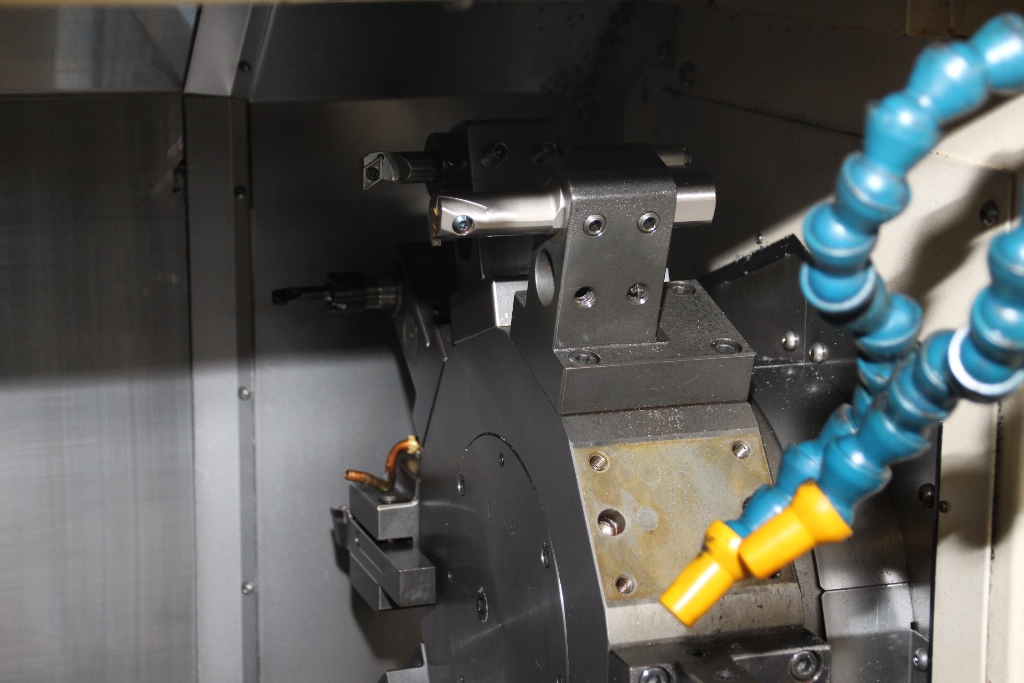

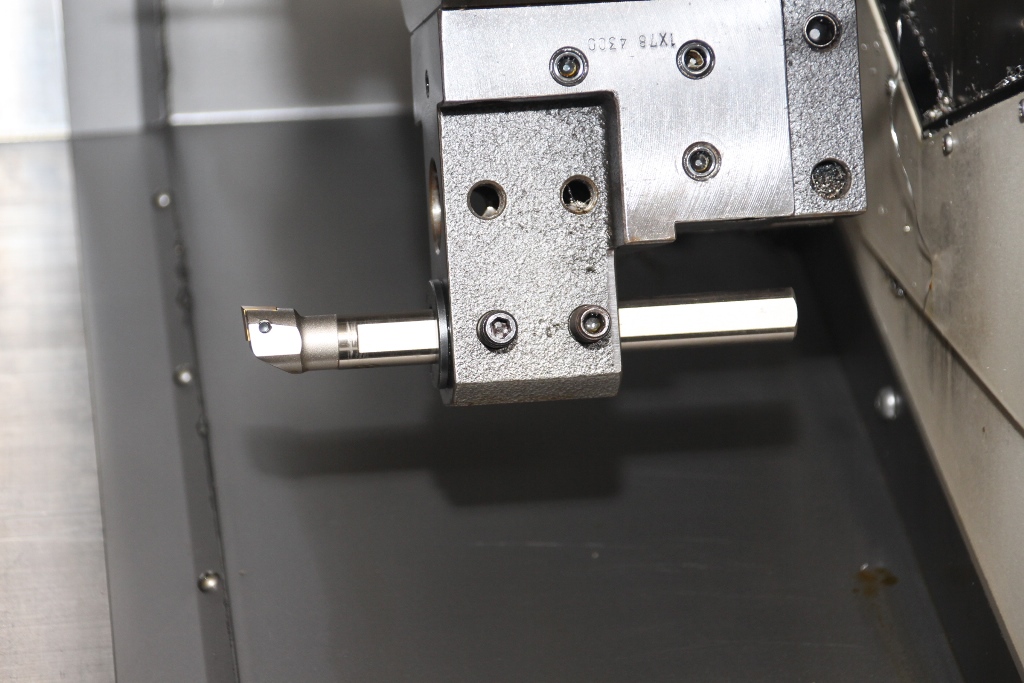

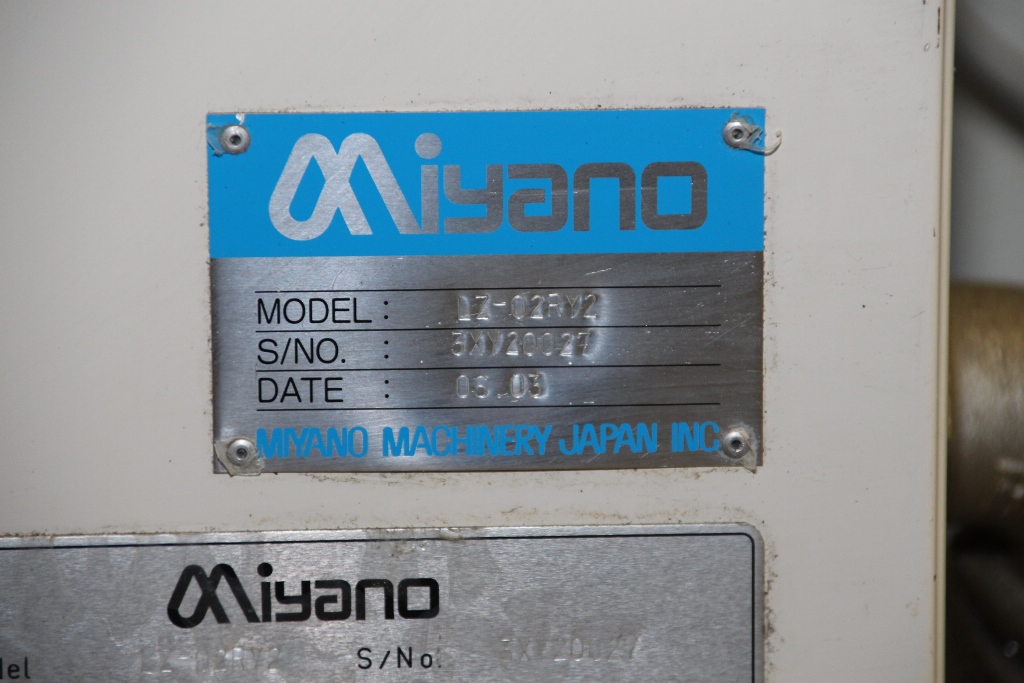

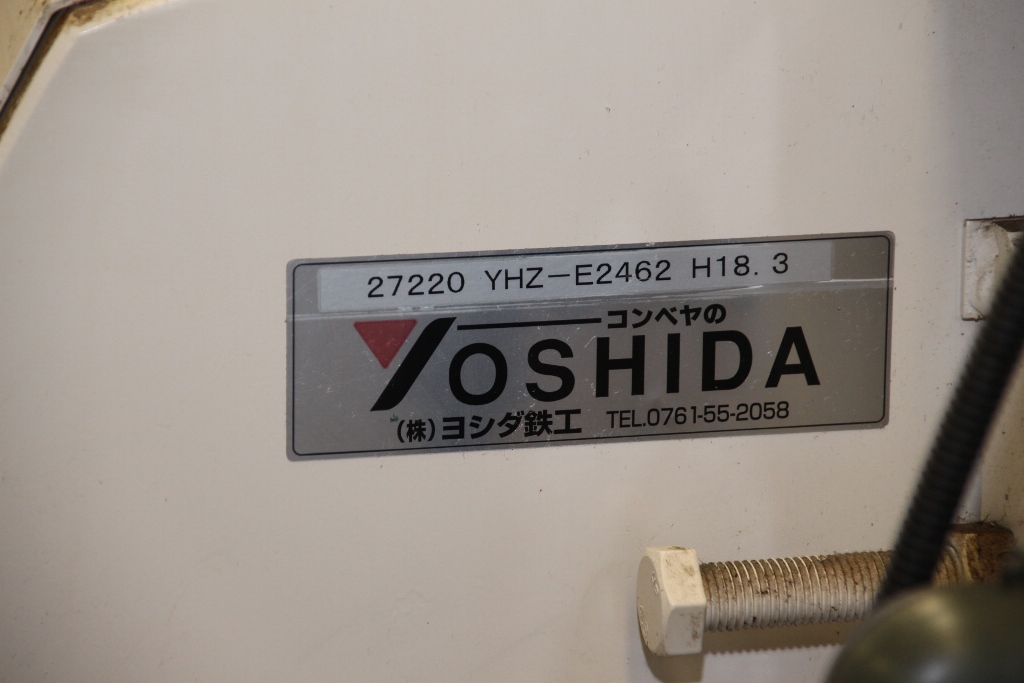

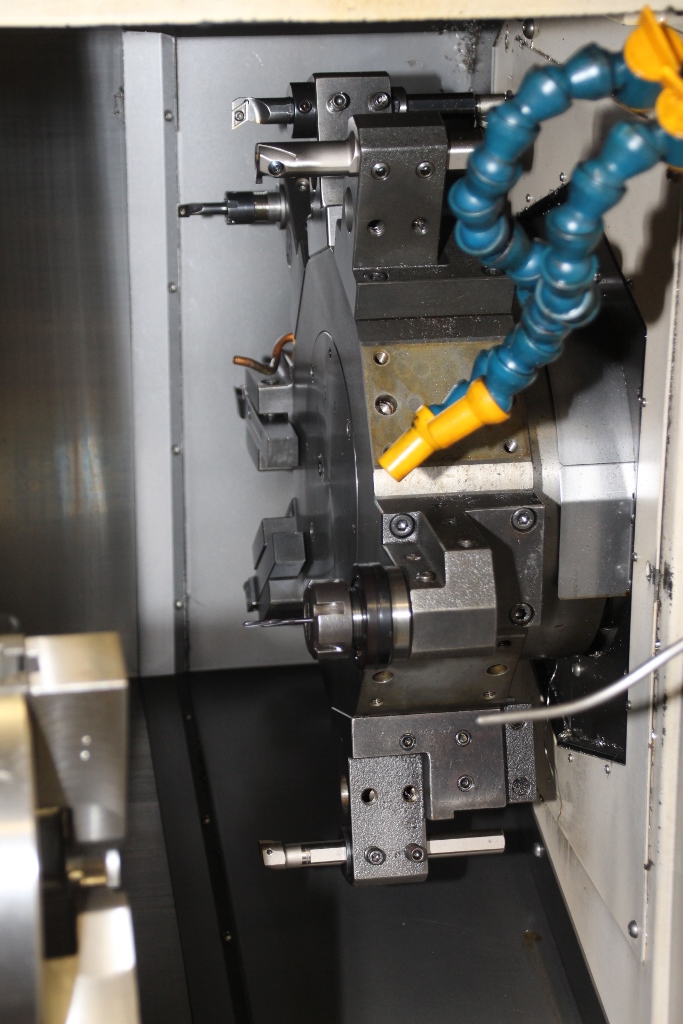

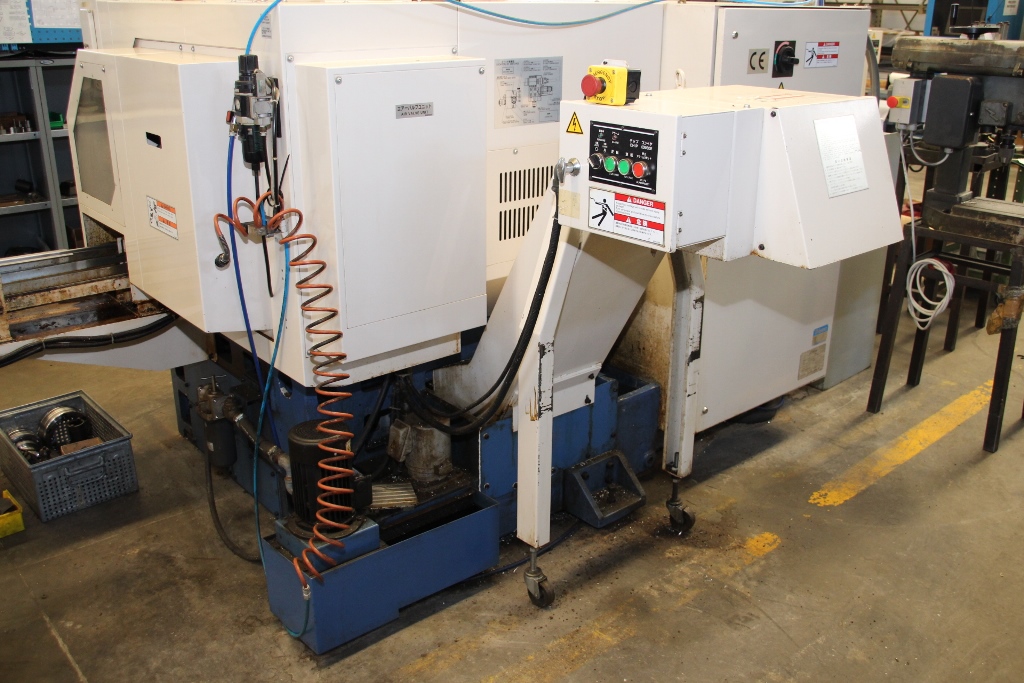

Miyano LZ-02 Ry 2 CNC Lathe (2006), Weight Approx. 4500kg, Dimensions (L X W X H) Approx. 2900 x 2400 x 2000mm, S/No. 3 XY 20027, Connected Power 28 Kva, CNC Control System Fanuc Series 21 I-Tb, 3-Jaw Chuck Kitagawa B-208, Diameter 210 Mm, 10-X Turret, Speed Range 50 - 5000 RPM, Size of Tool Shank 20 Mm, Inner Tool Holder Diameter 25 Mm, Max. Amount of Turning Tools 5, Travel Y +-35 Mm, Speed 100 - 4000 Rpm, Max. Raw Part Weight 1,5 Kg, C-Axis At Main Spindle Resolution 0,001°, Chip Conveyor, Automatic Central Lubrication, High Pressure Cooling

Please Note: This Item is located in Ancona, Italy

Please click on the link below to Surplex's website where you can view and bid on the lots

https://www.surplex.com/en/al/4/well-tended-machines-from-a-bar-turning-workshop-1019/9/1/54/1.html
