Lotto 6: SMS/MEER/ Cold Pilger Rolling Mill

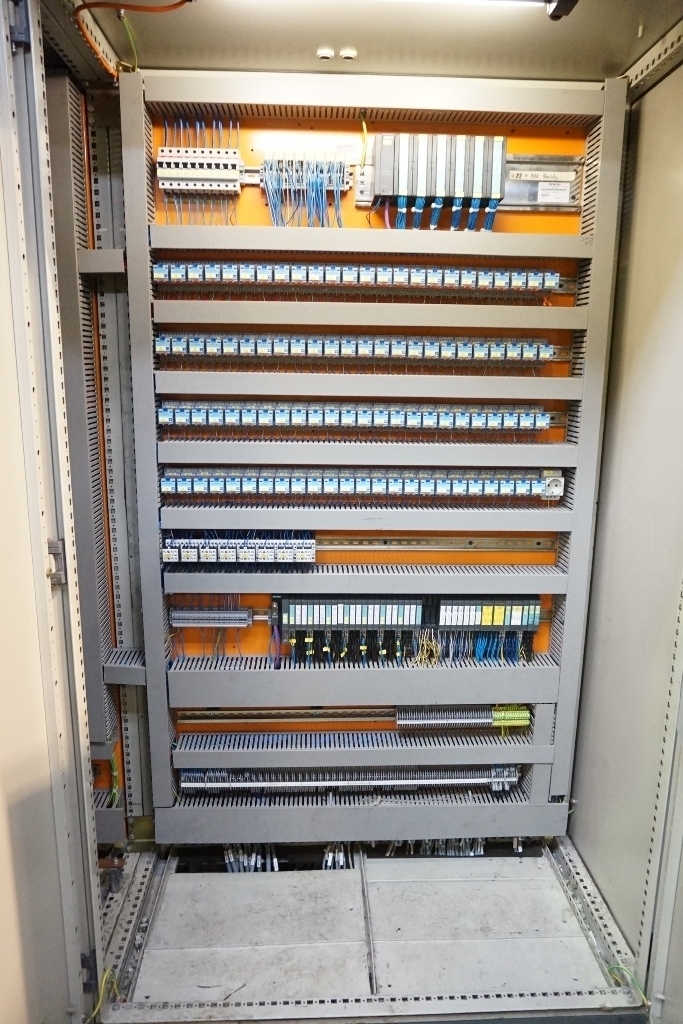

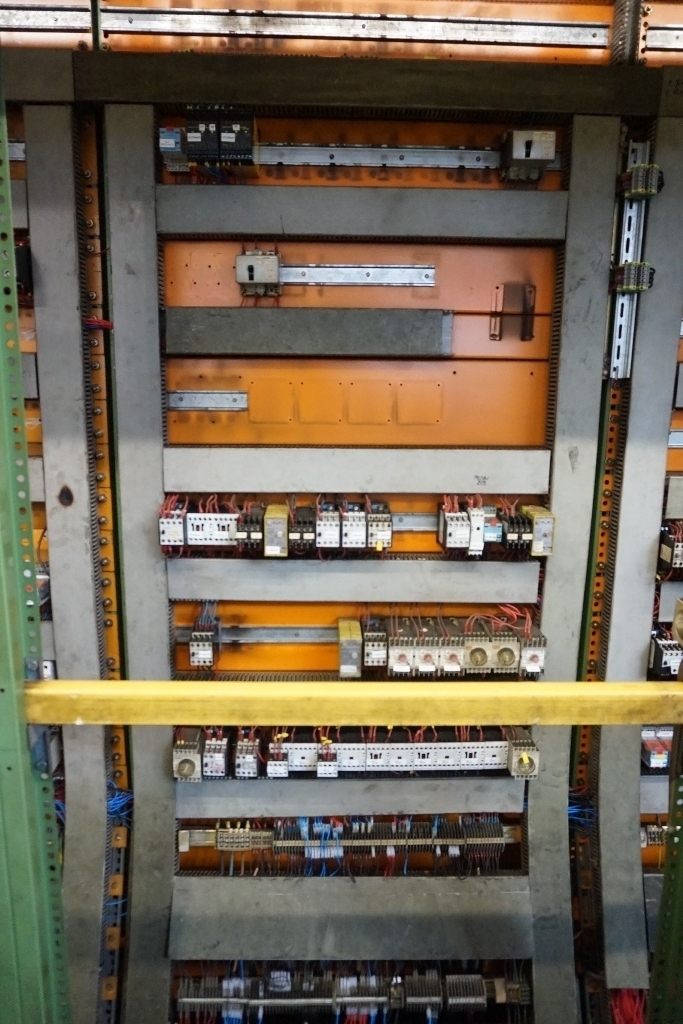

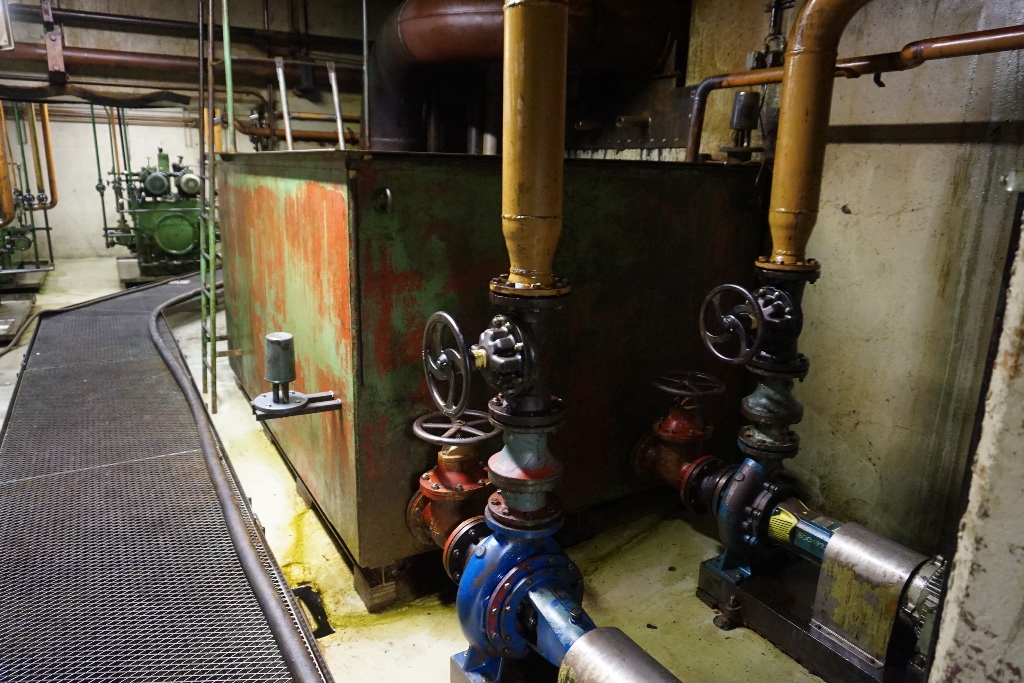

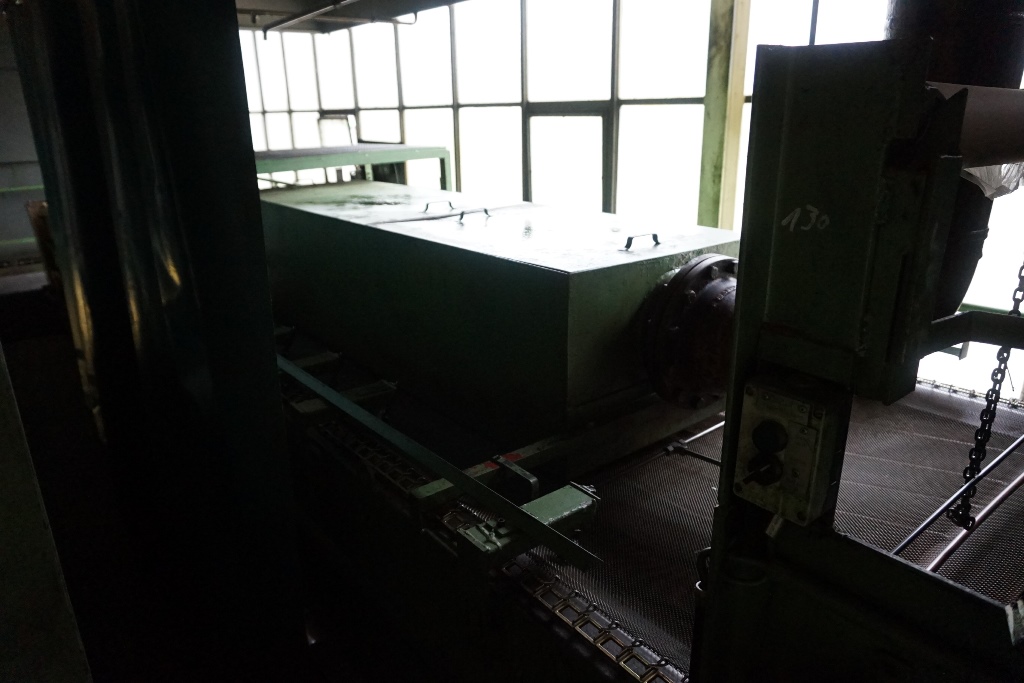

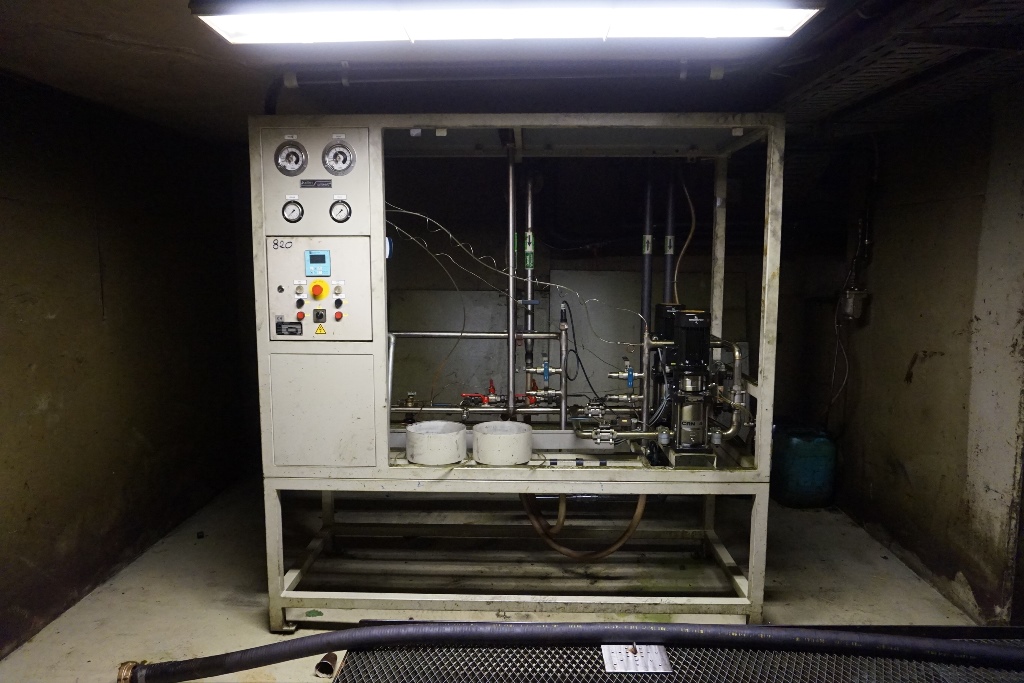

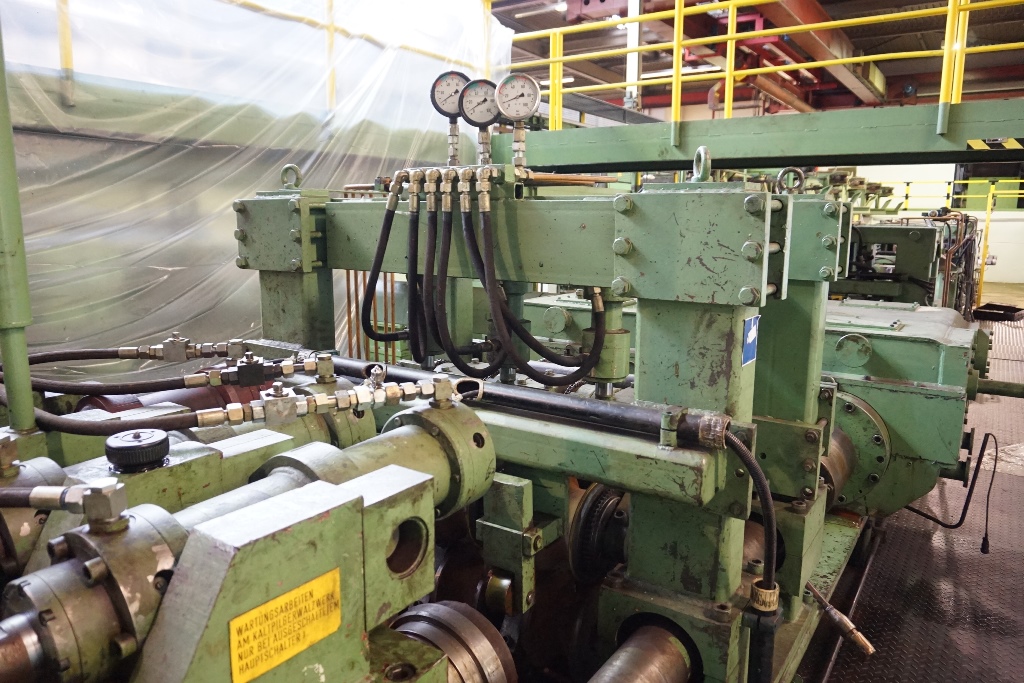

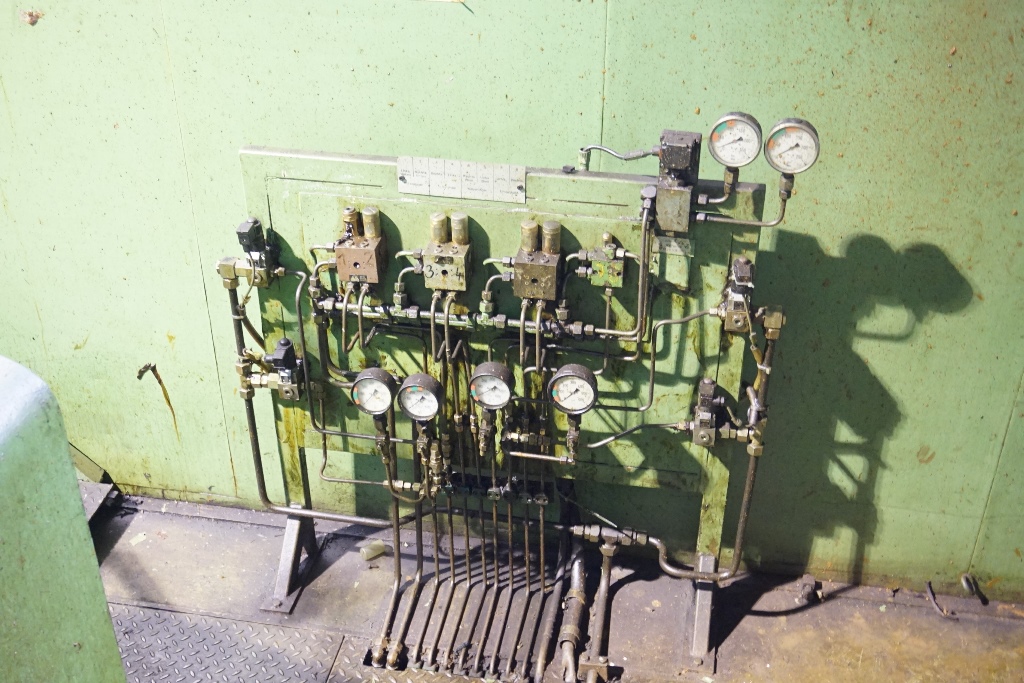

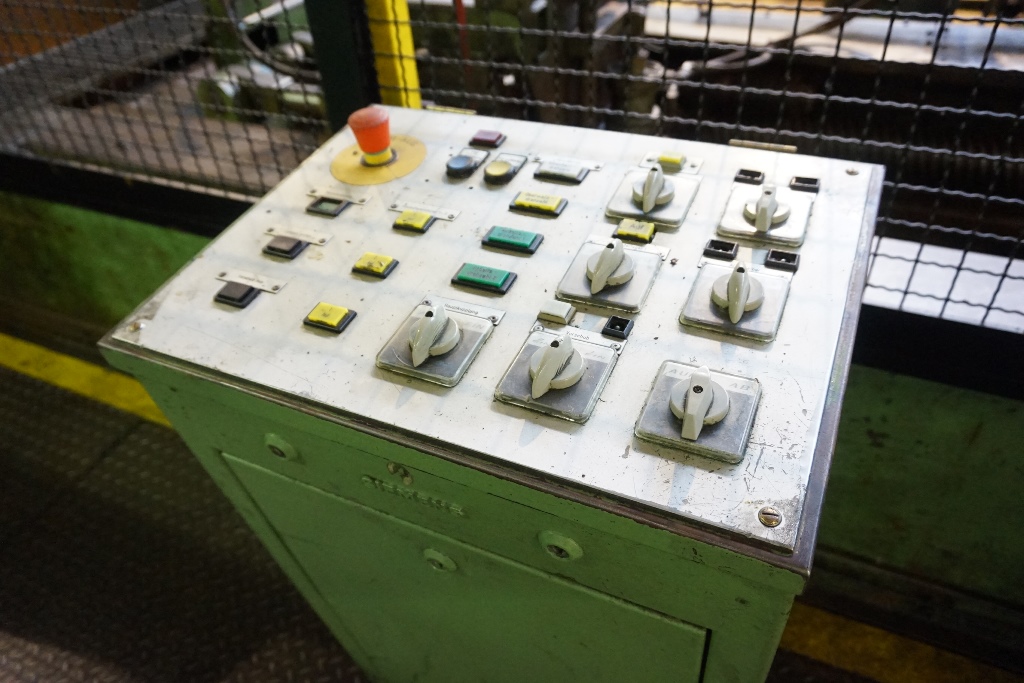

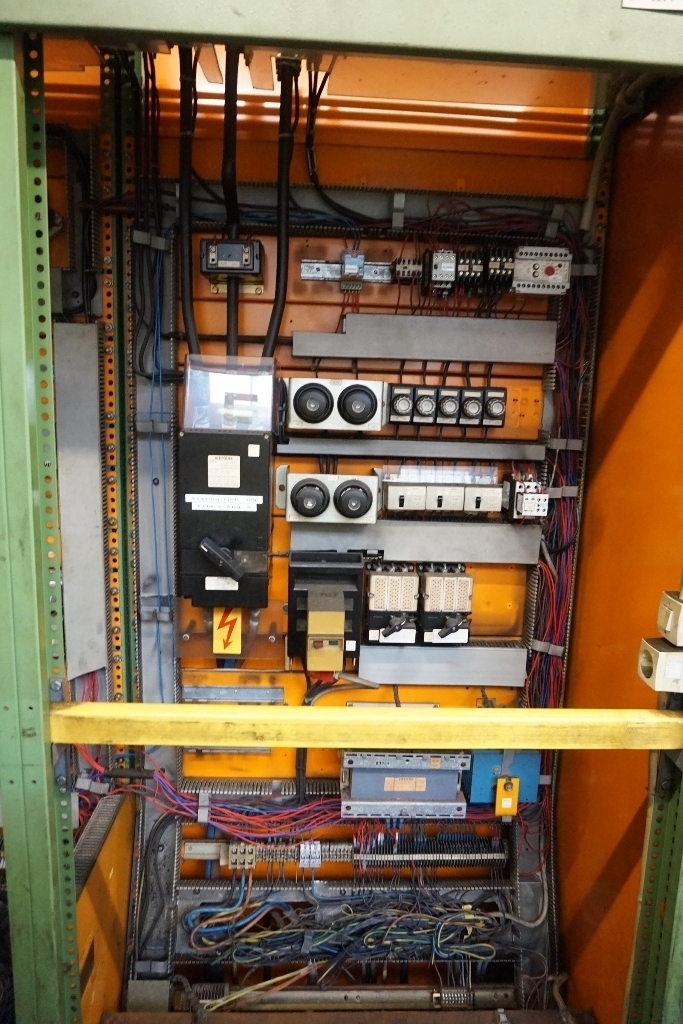

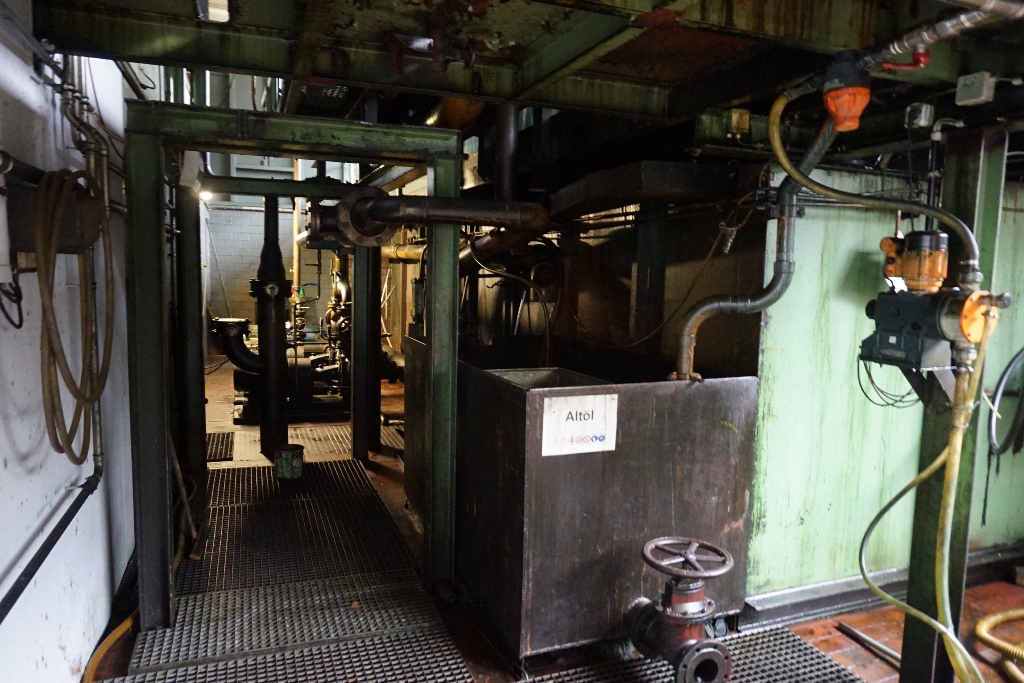

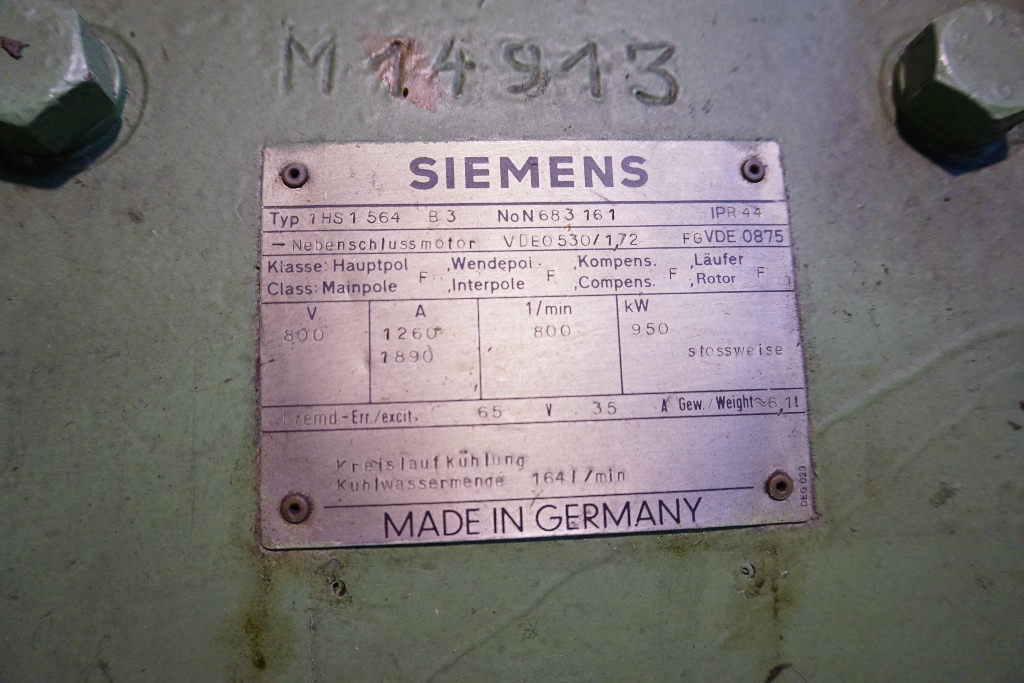

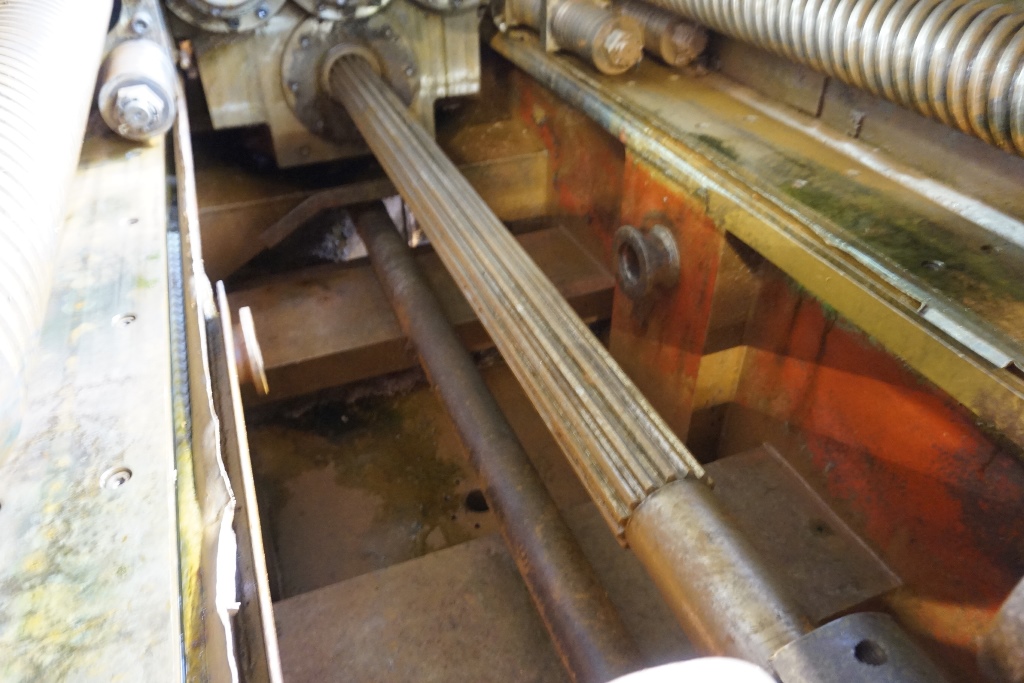

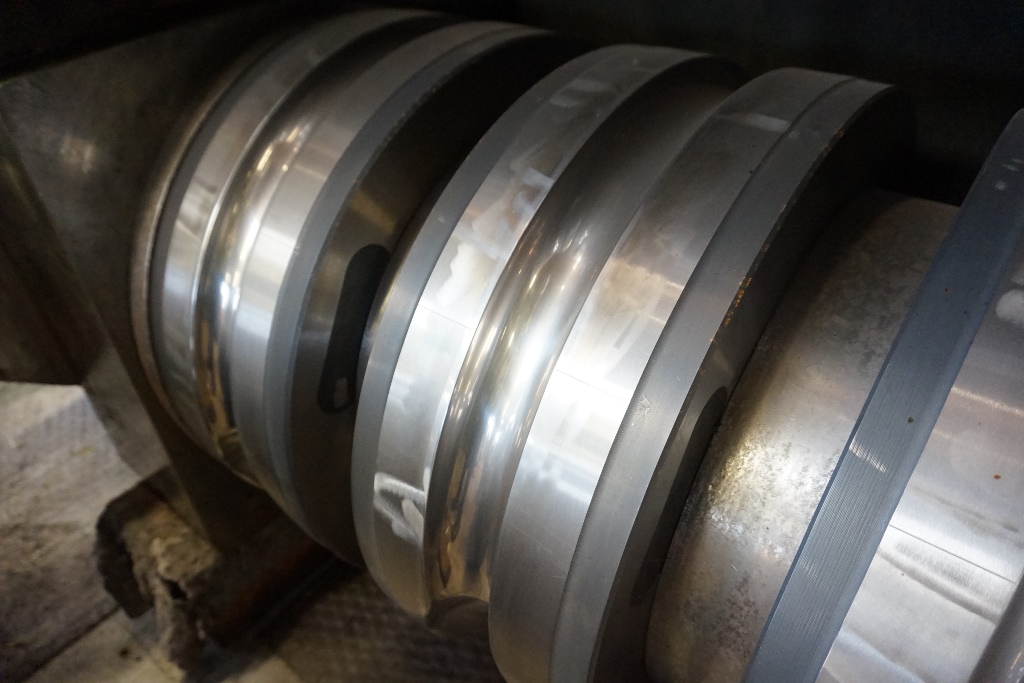

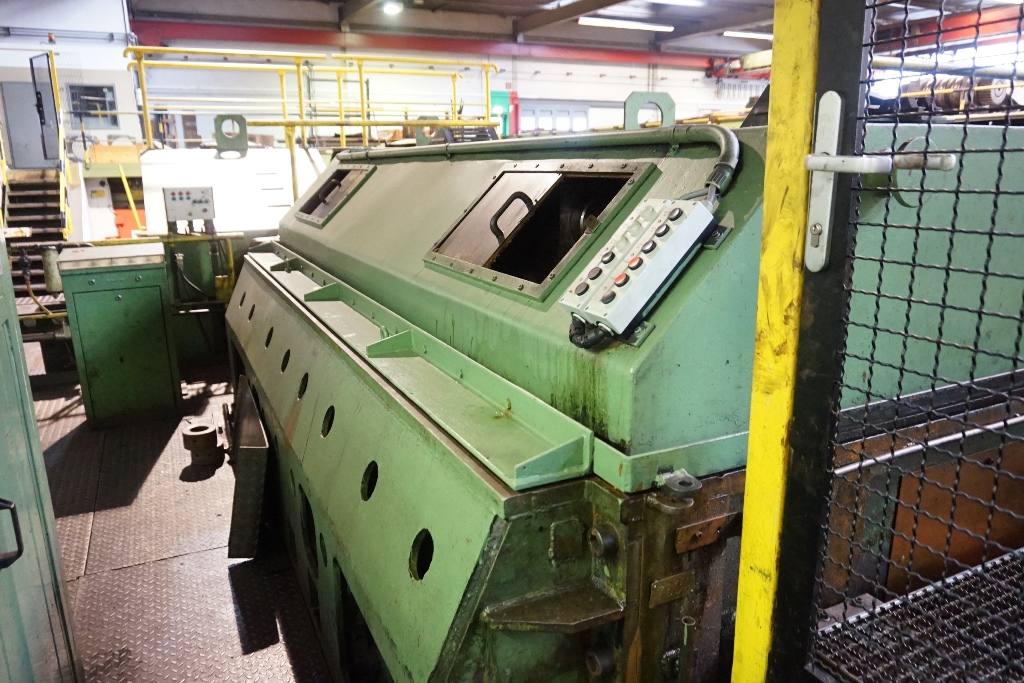

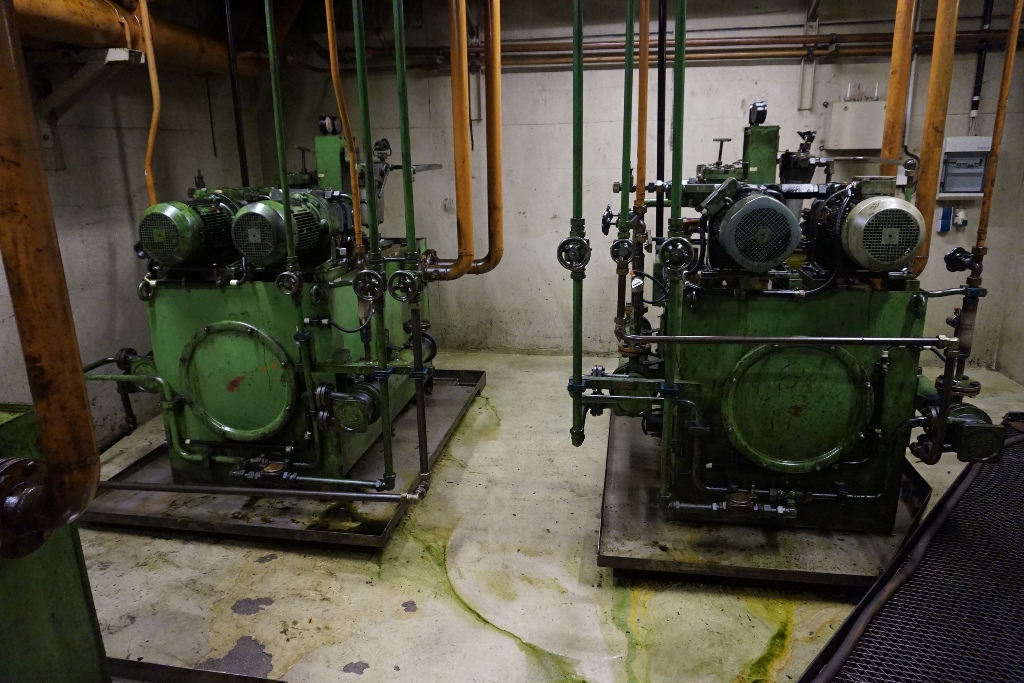

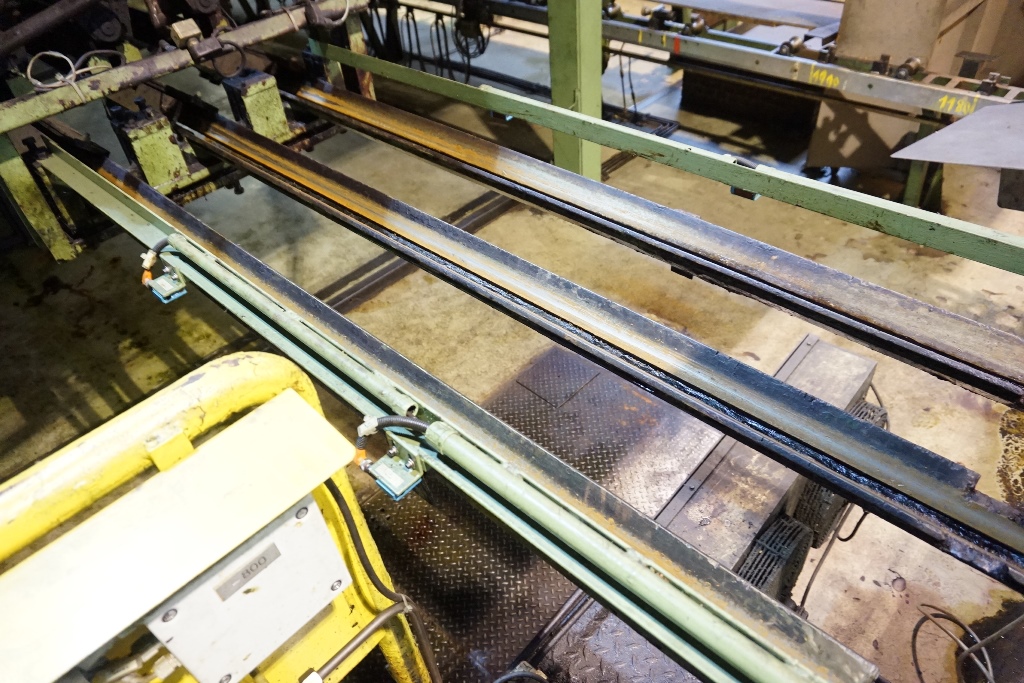

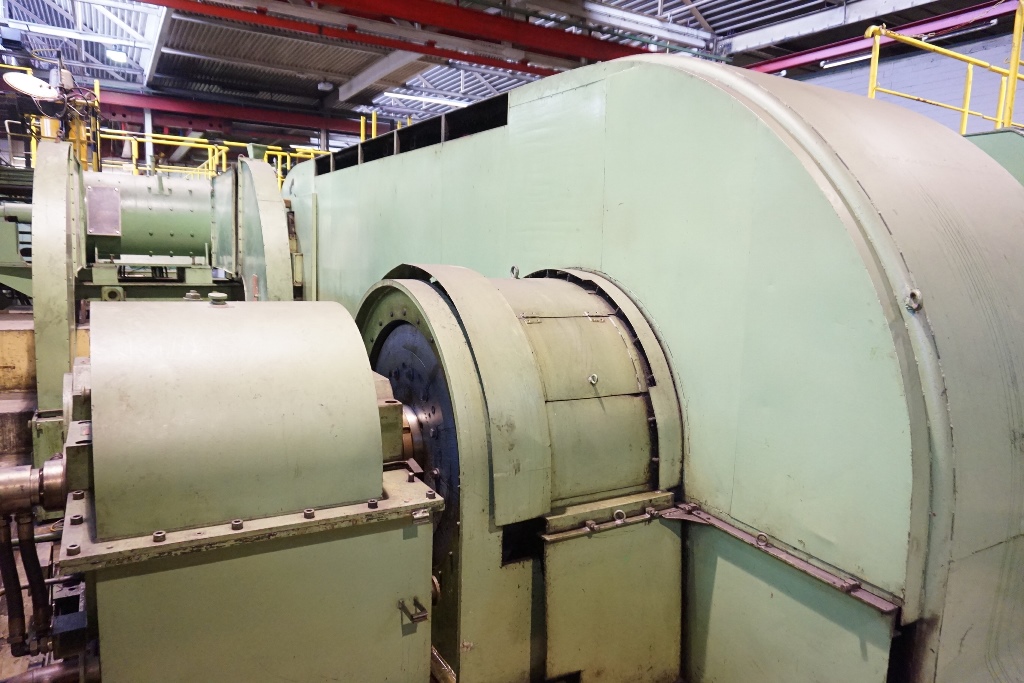

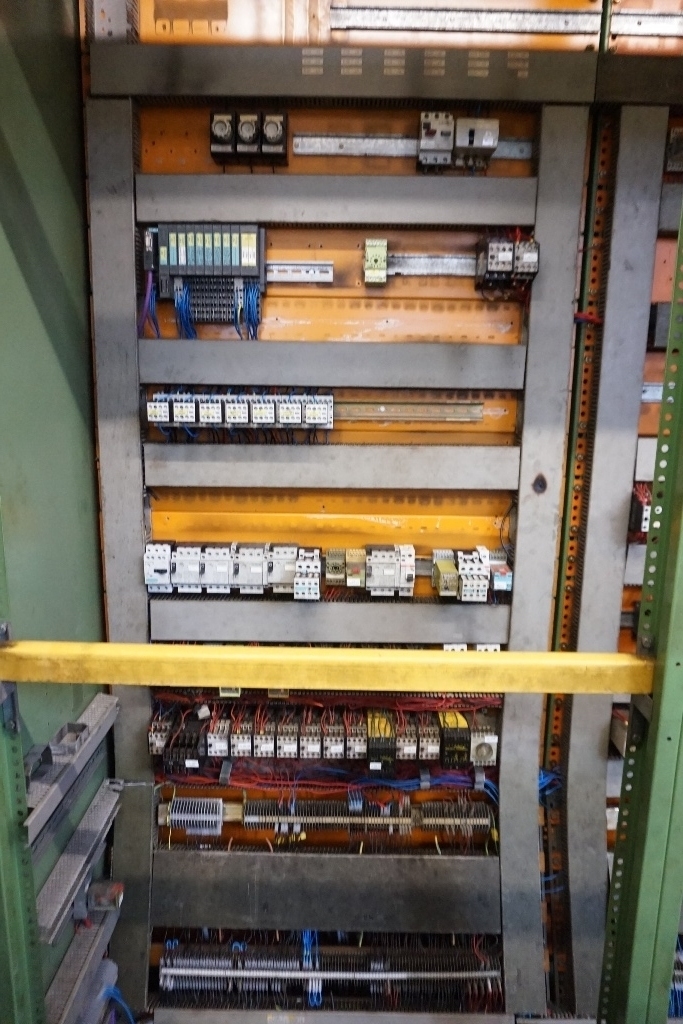

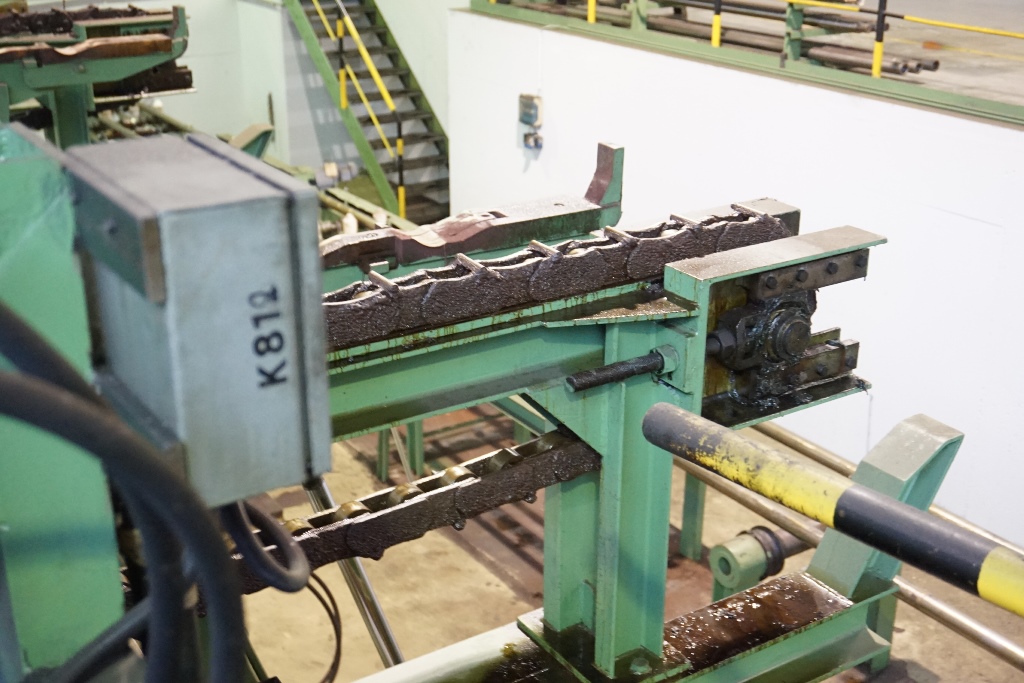

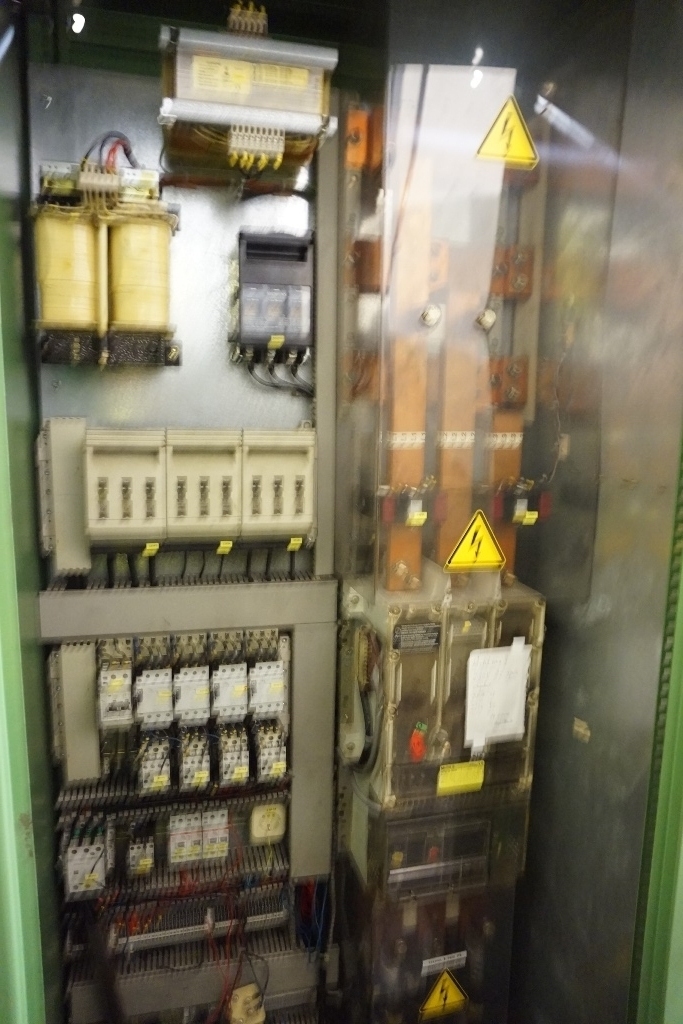

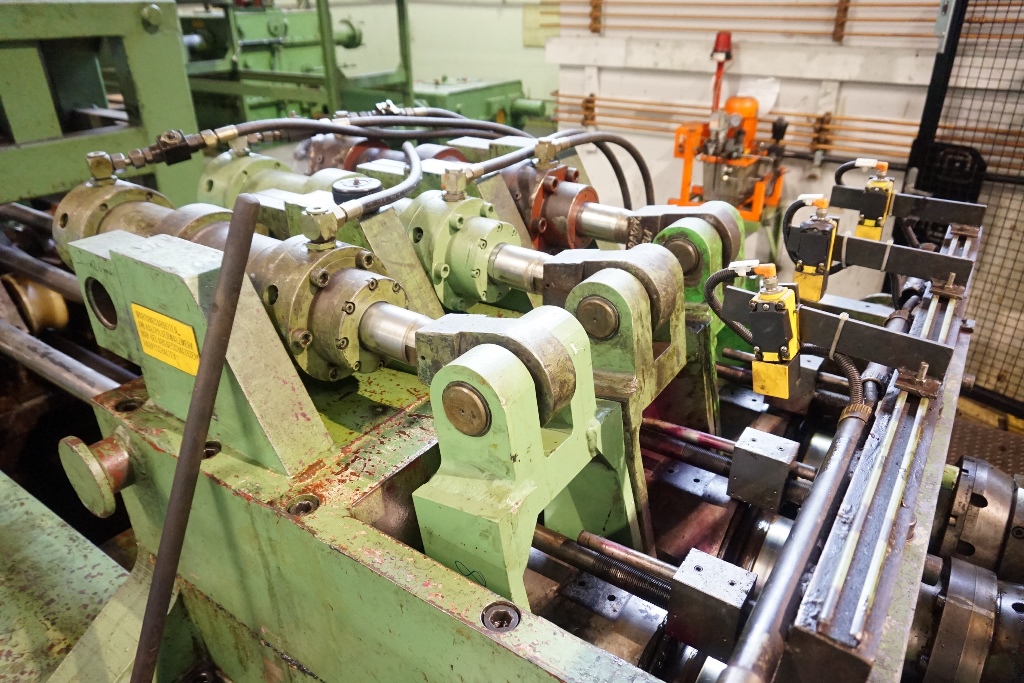

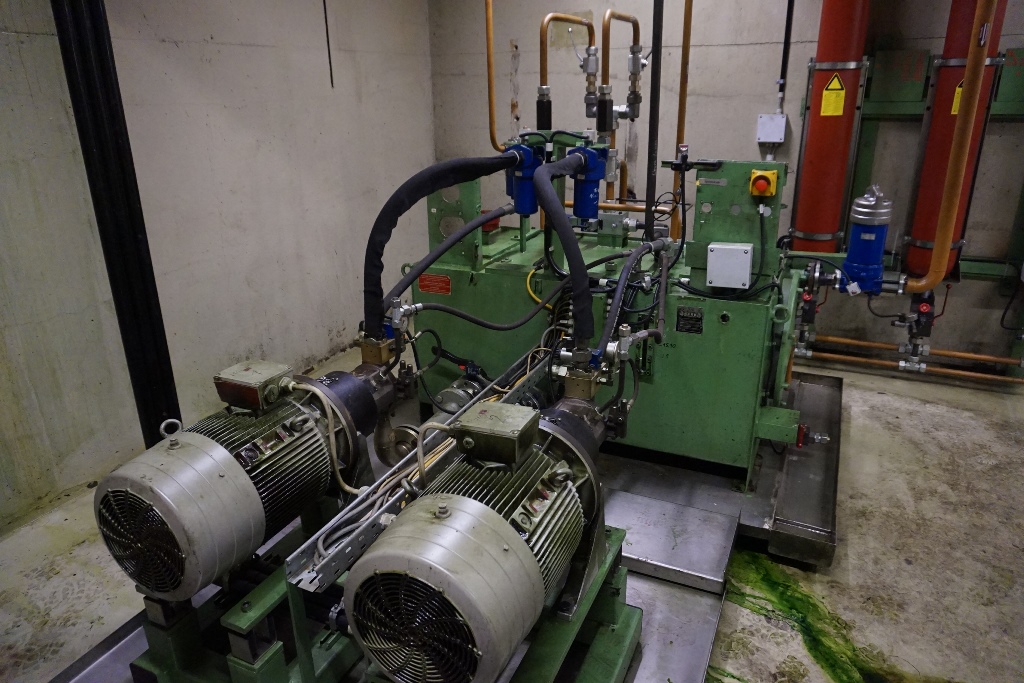

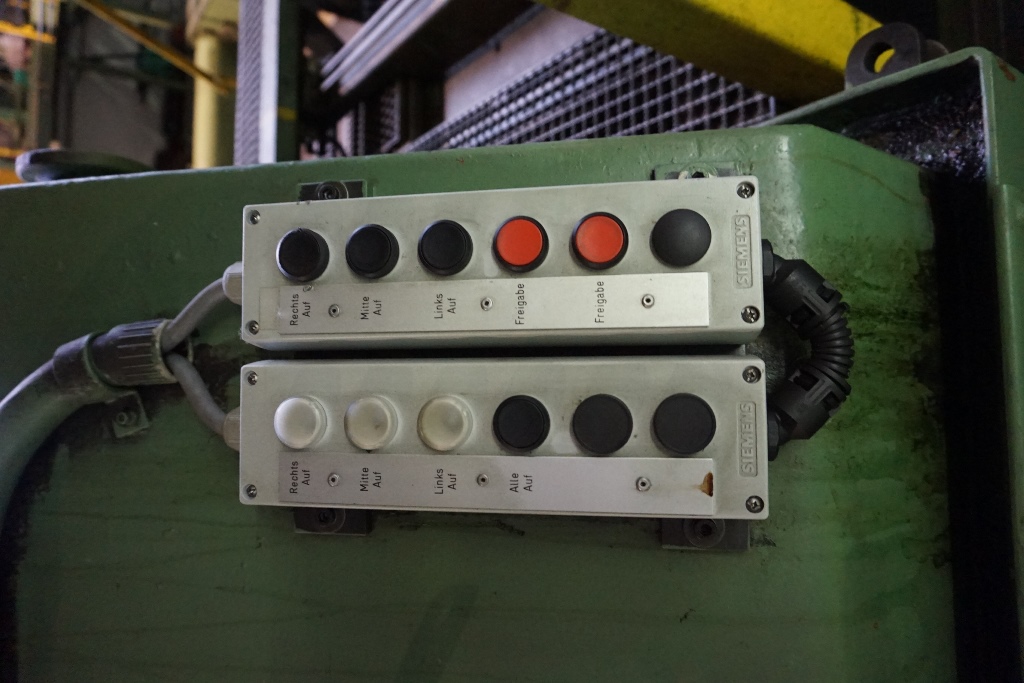

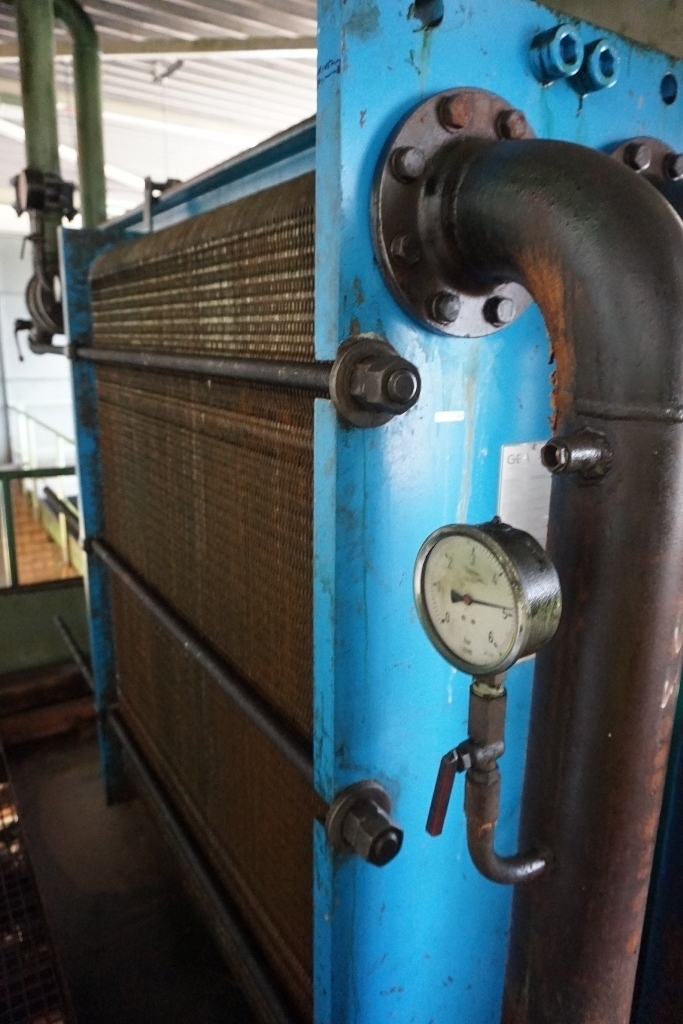

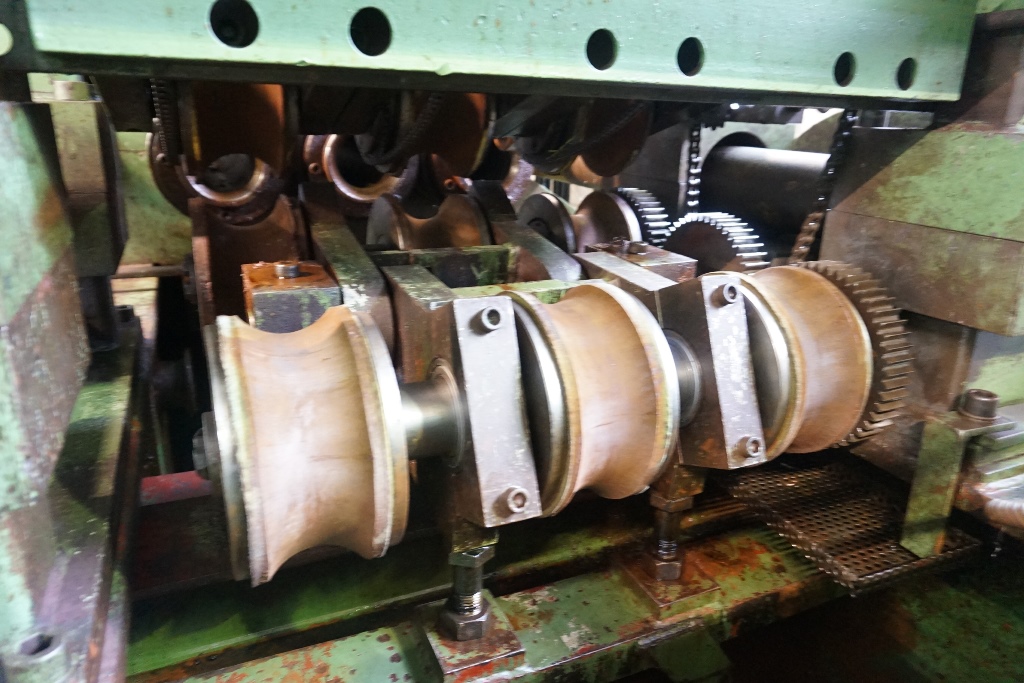

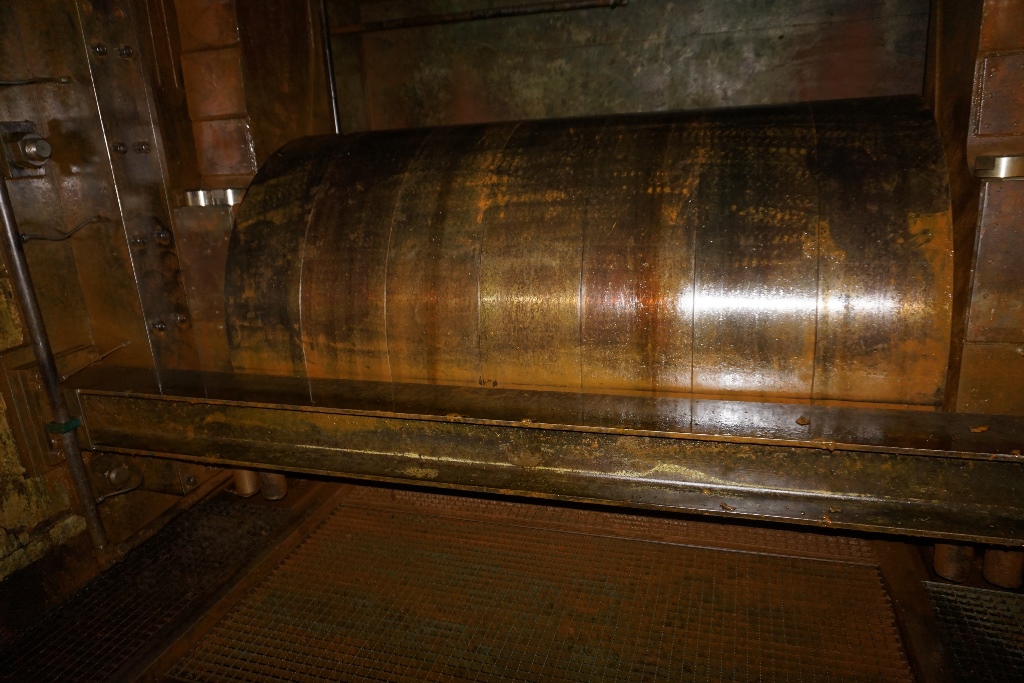

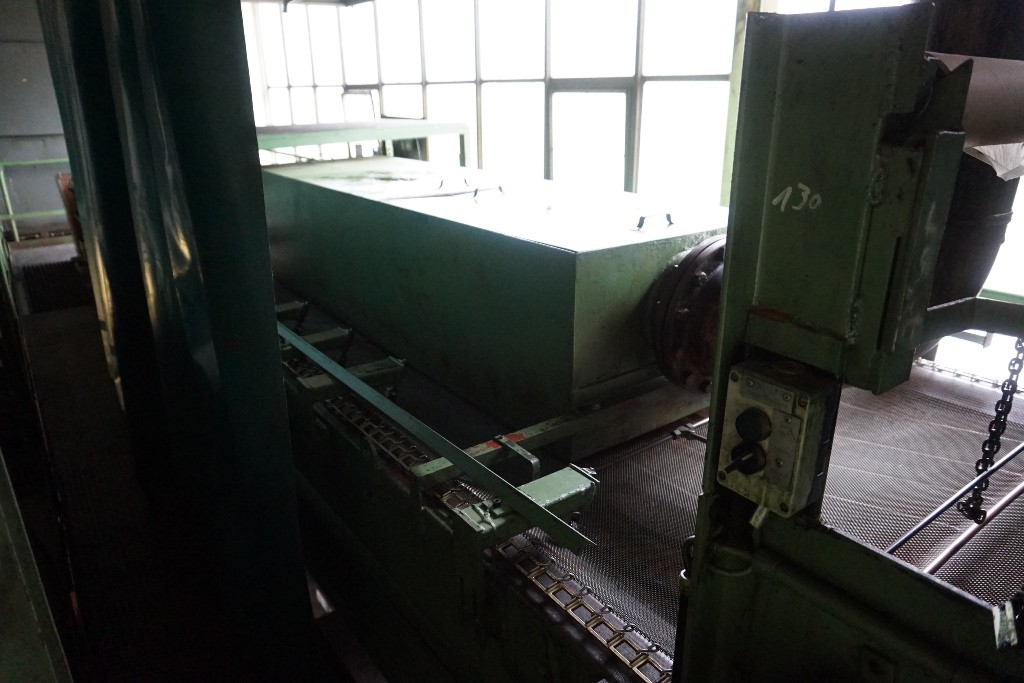

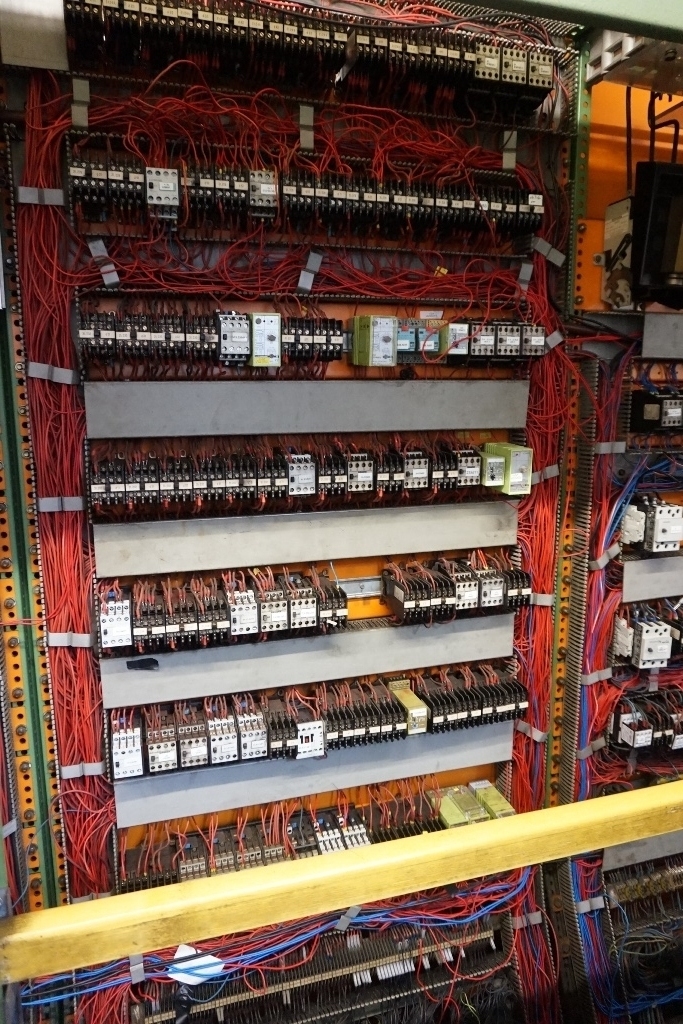

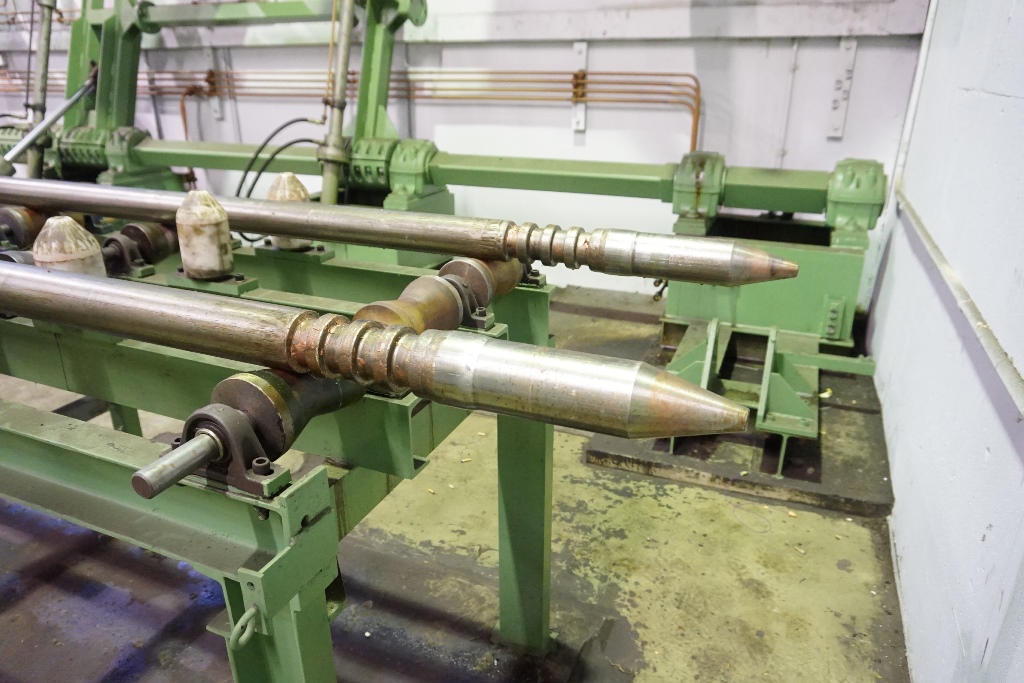

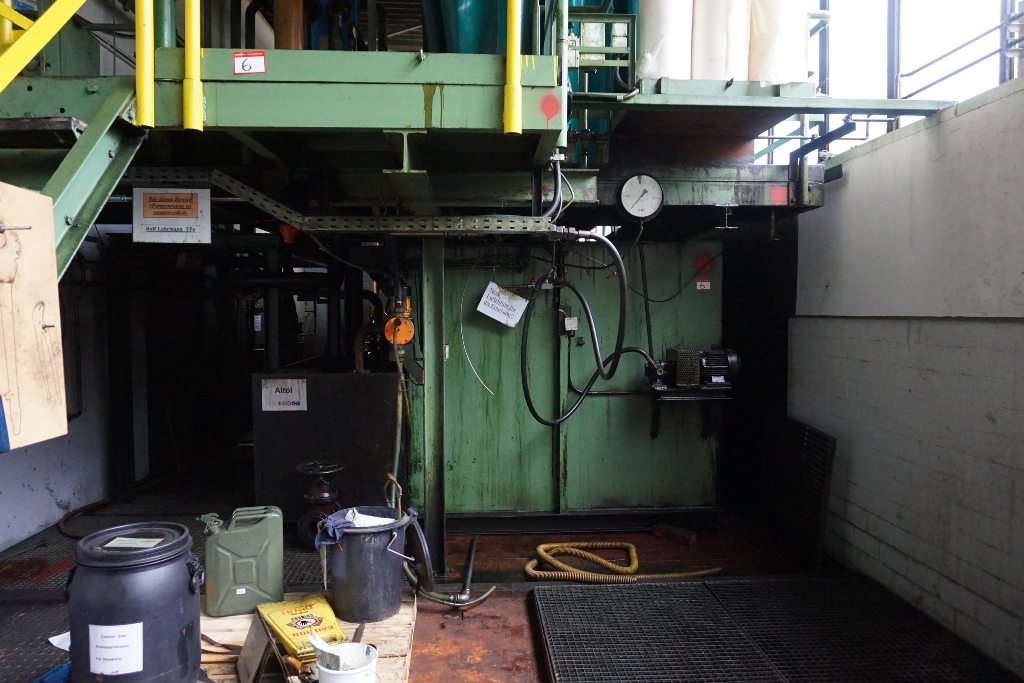

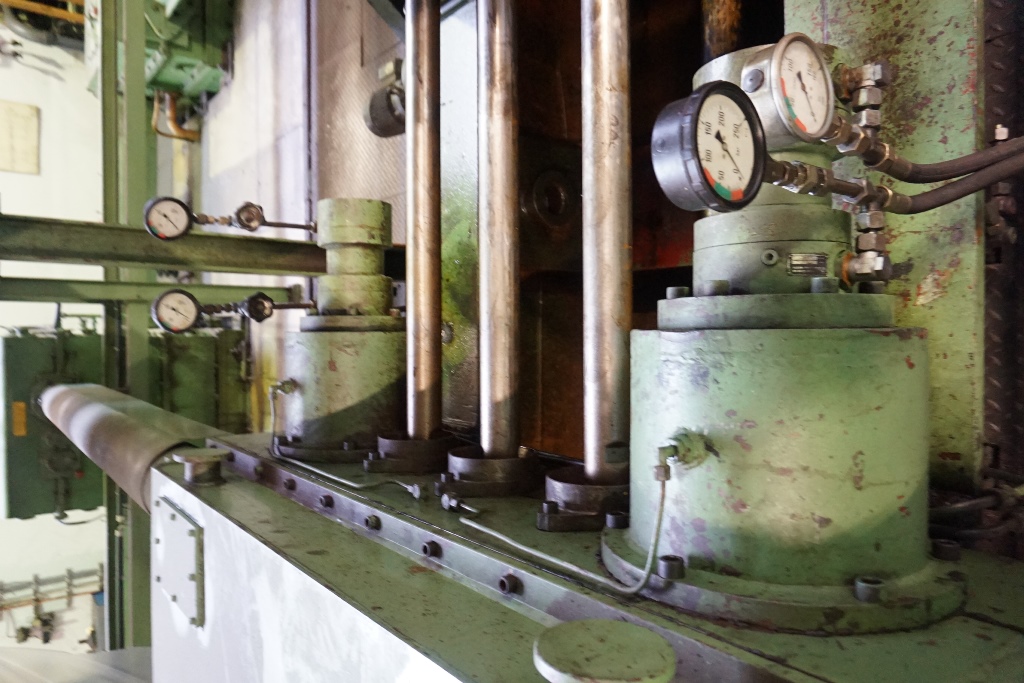

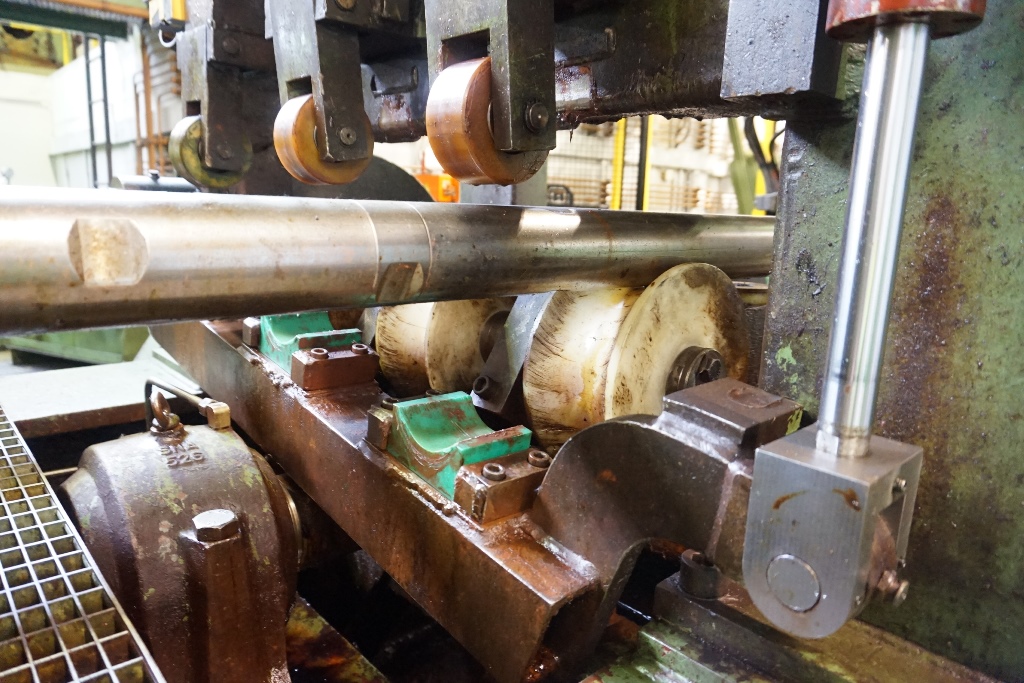

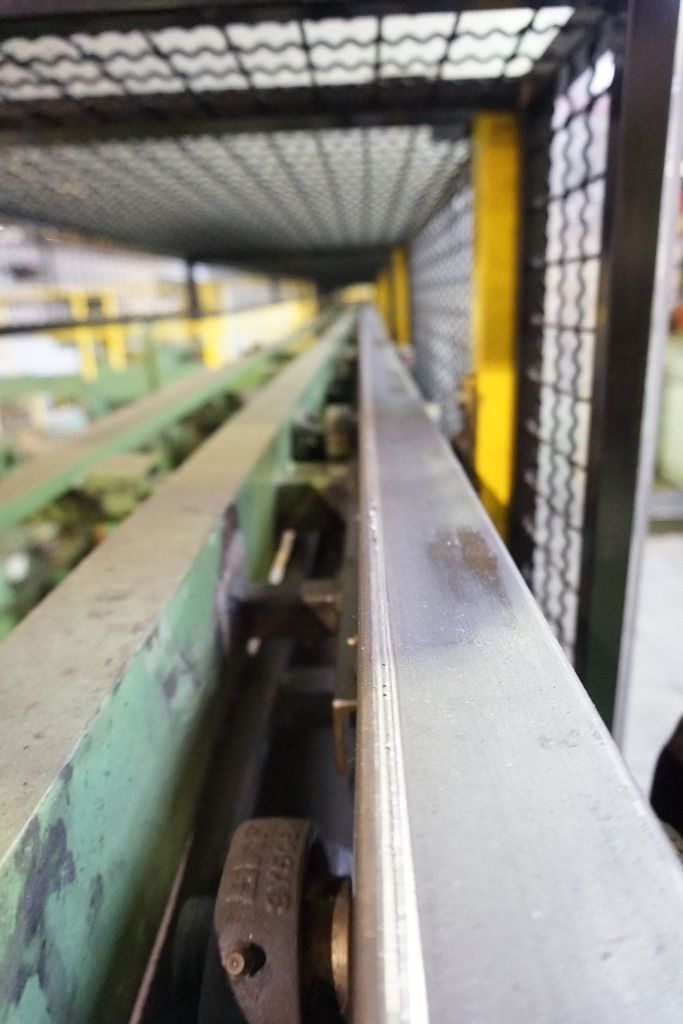

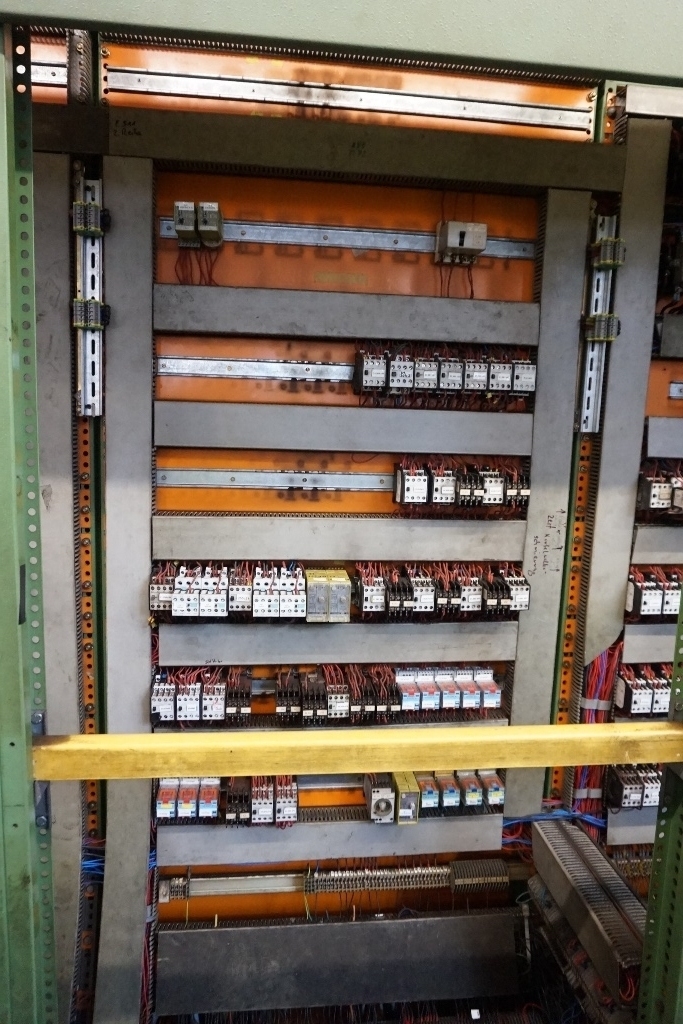

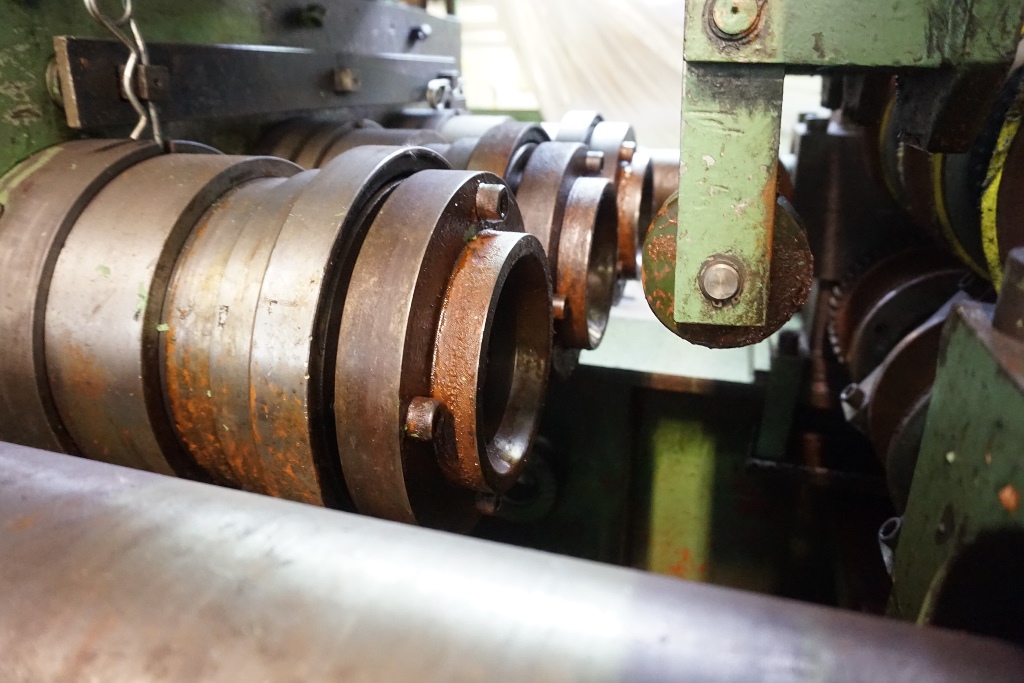

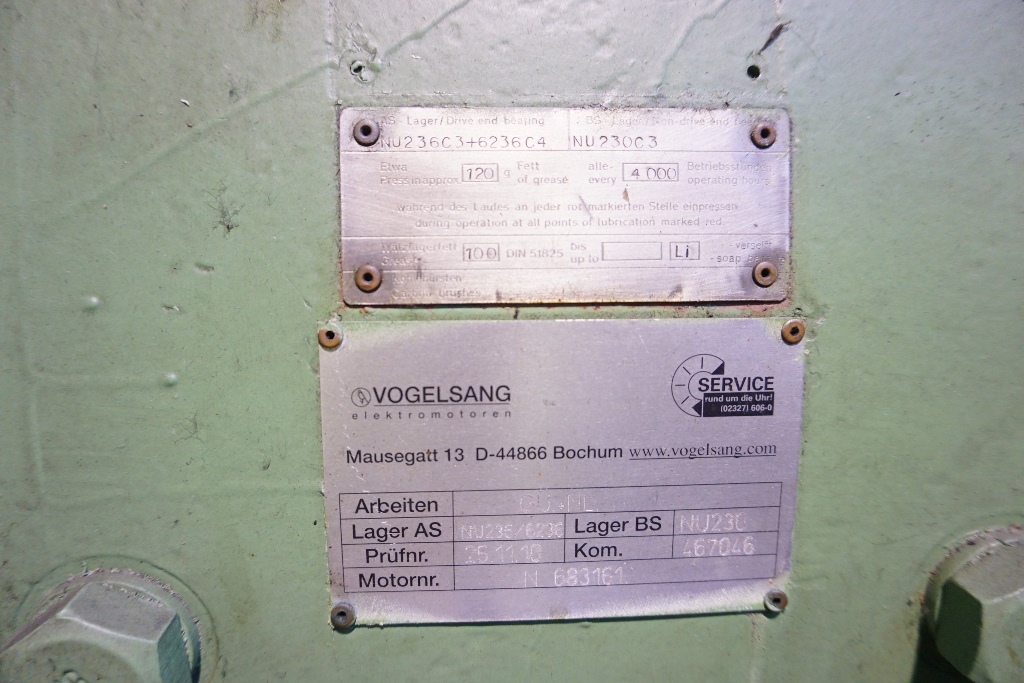

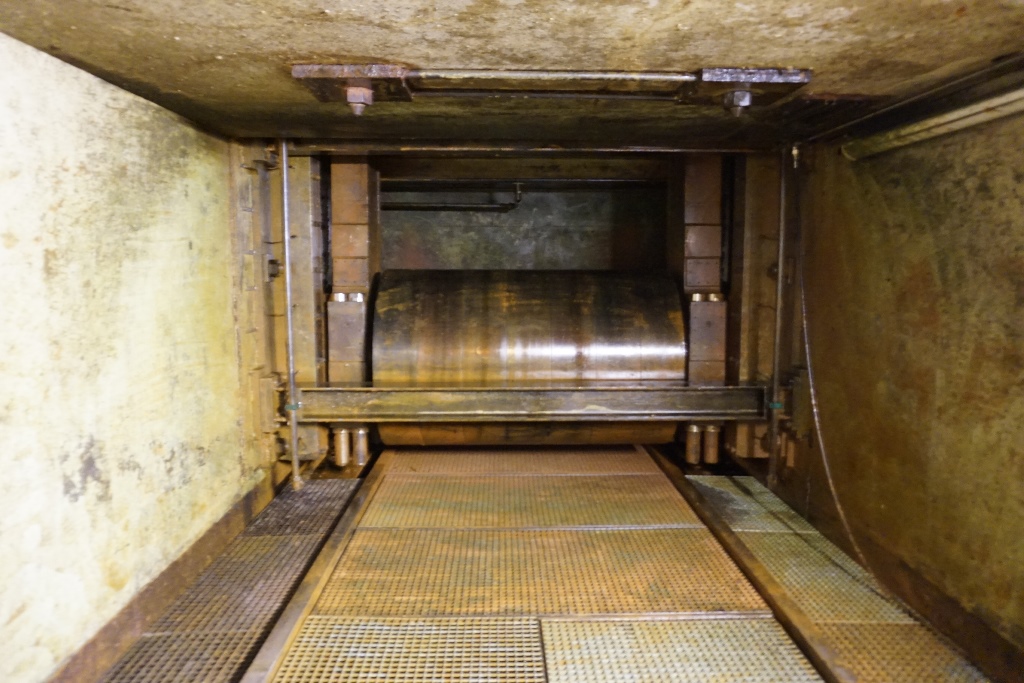

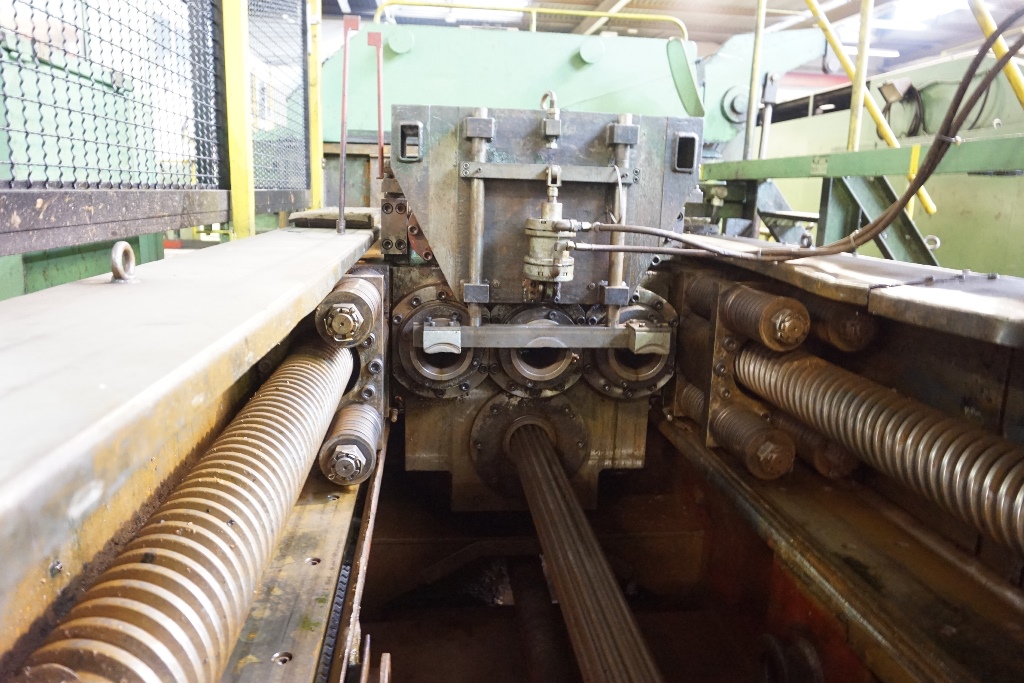

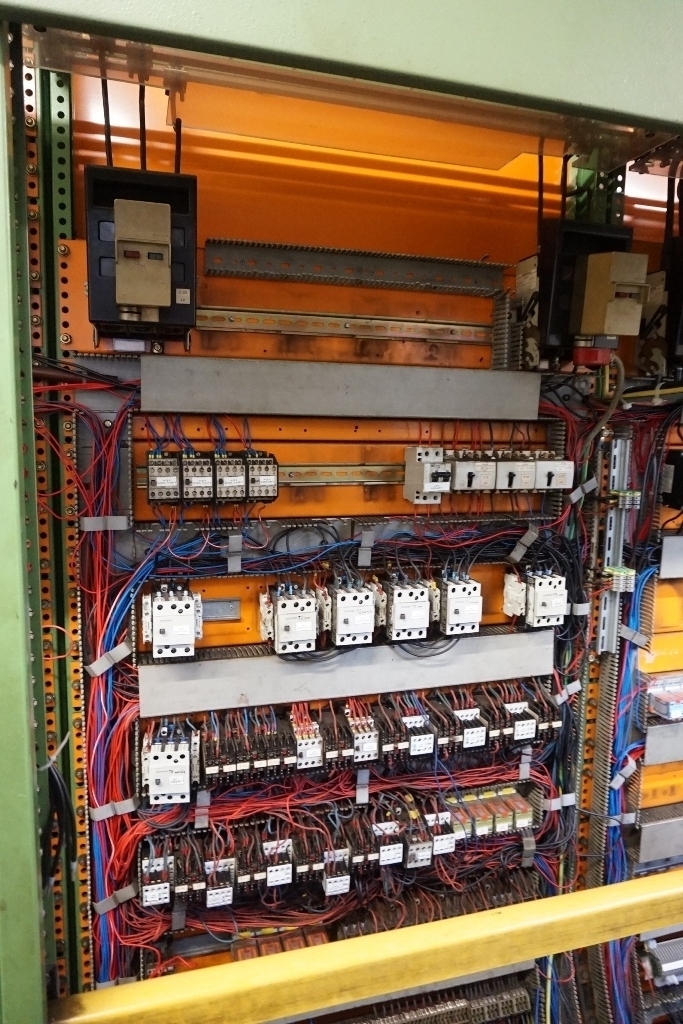

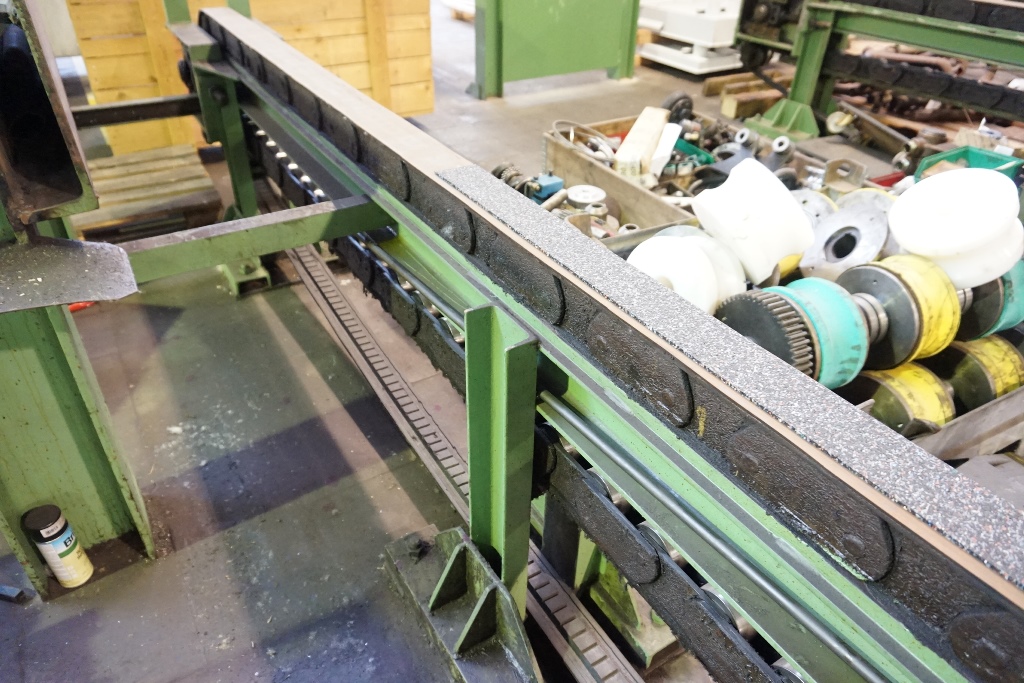

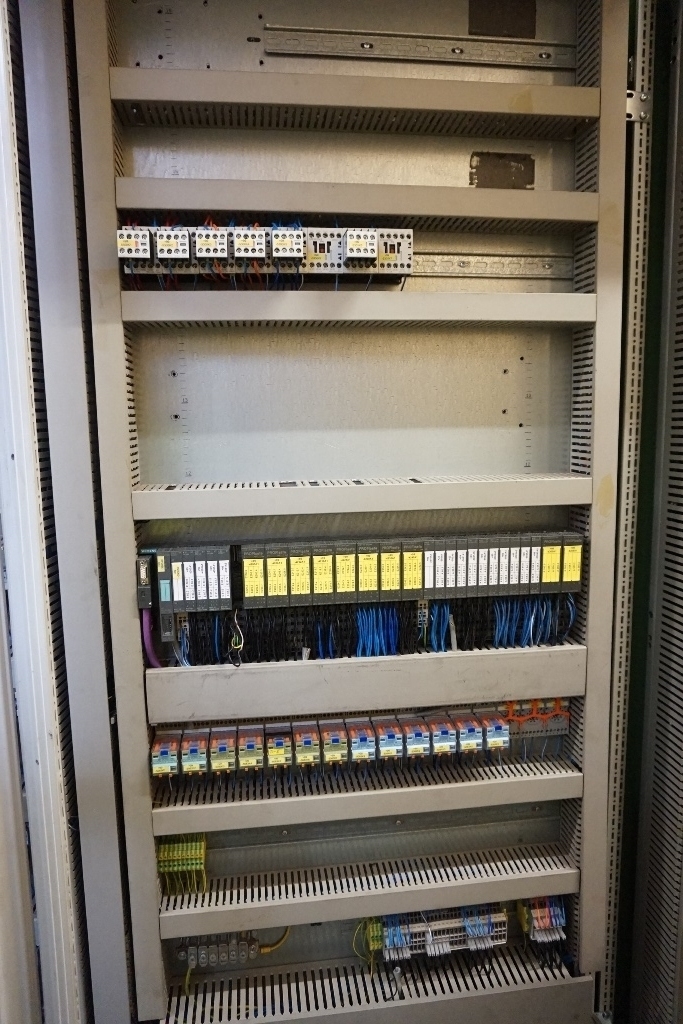

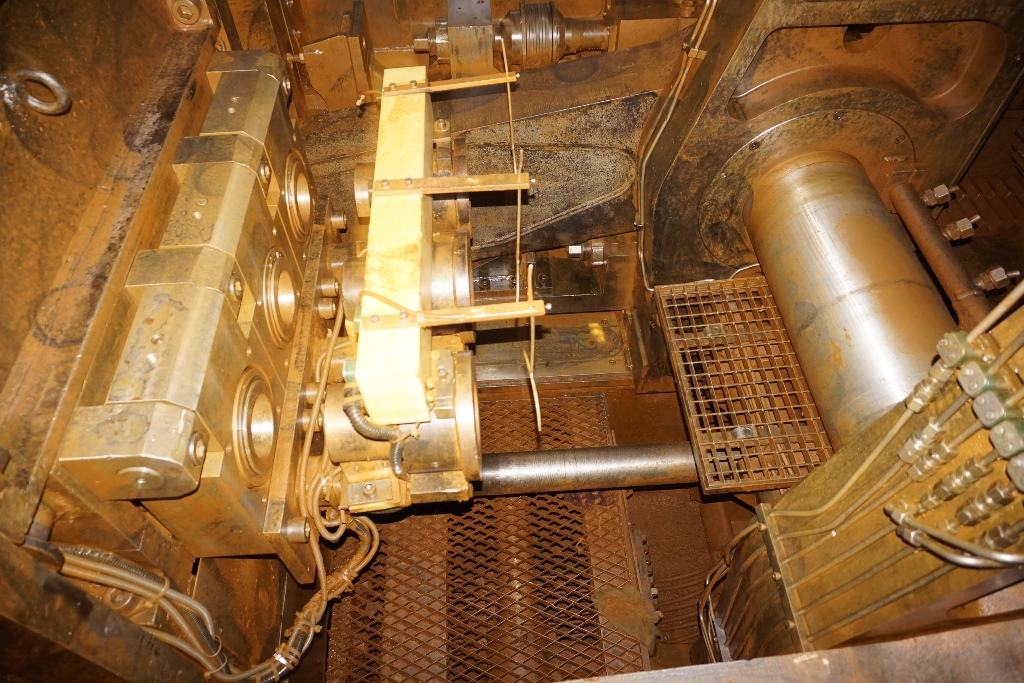

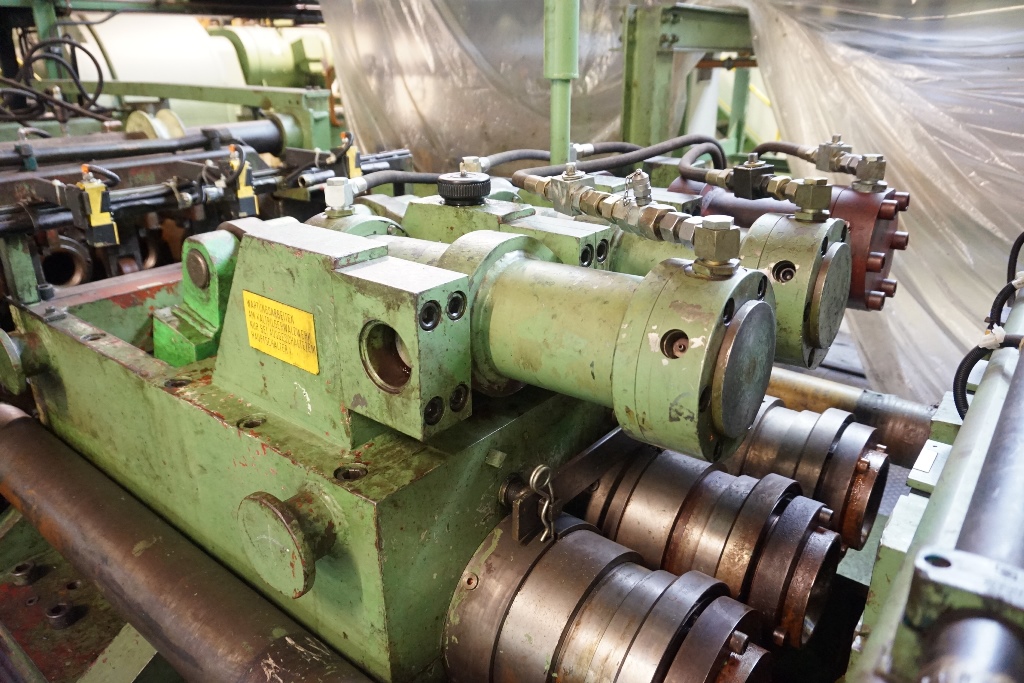

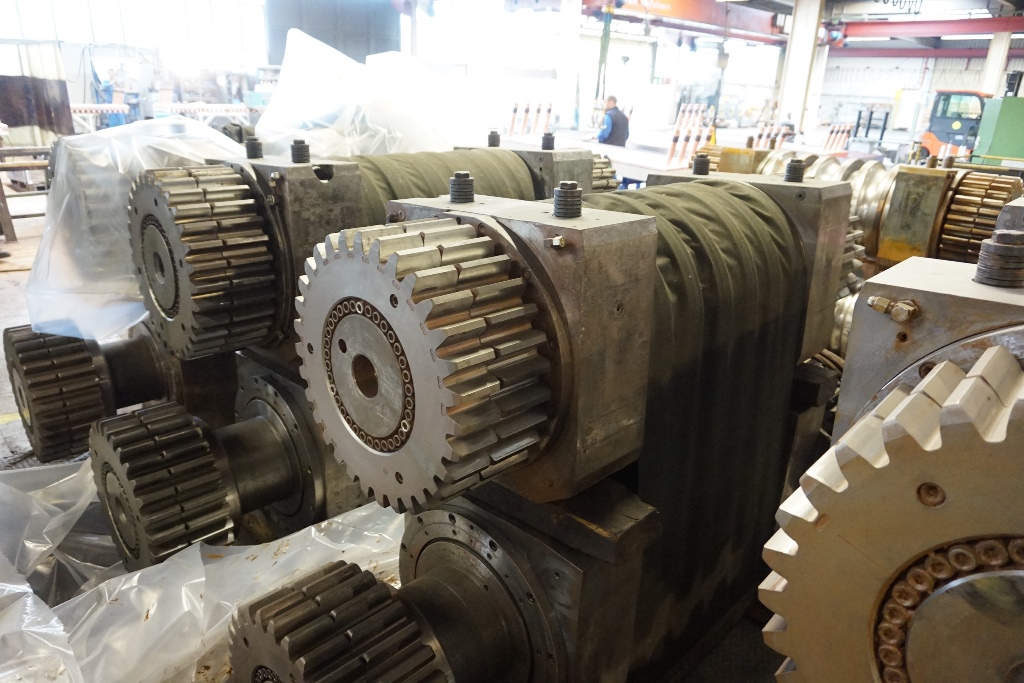

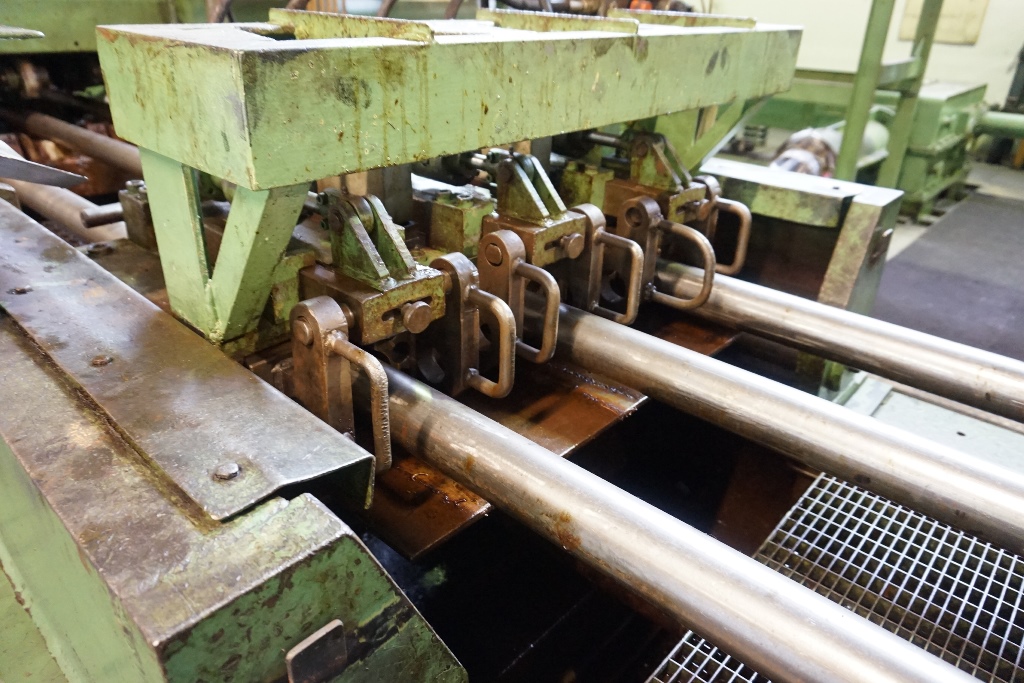

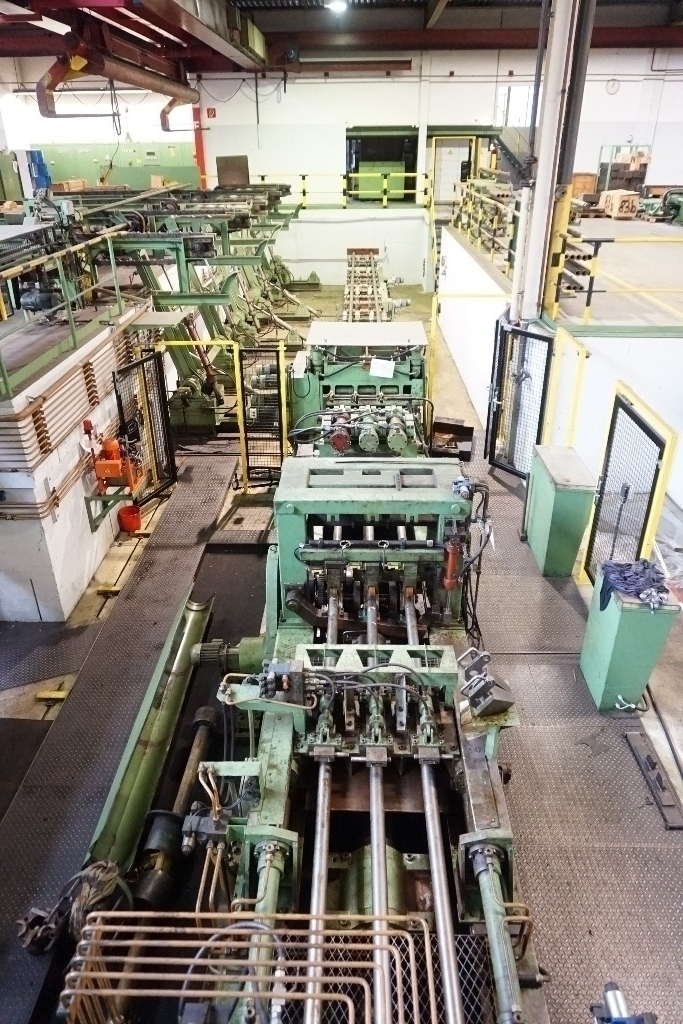

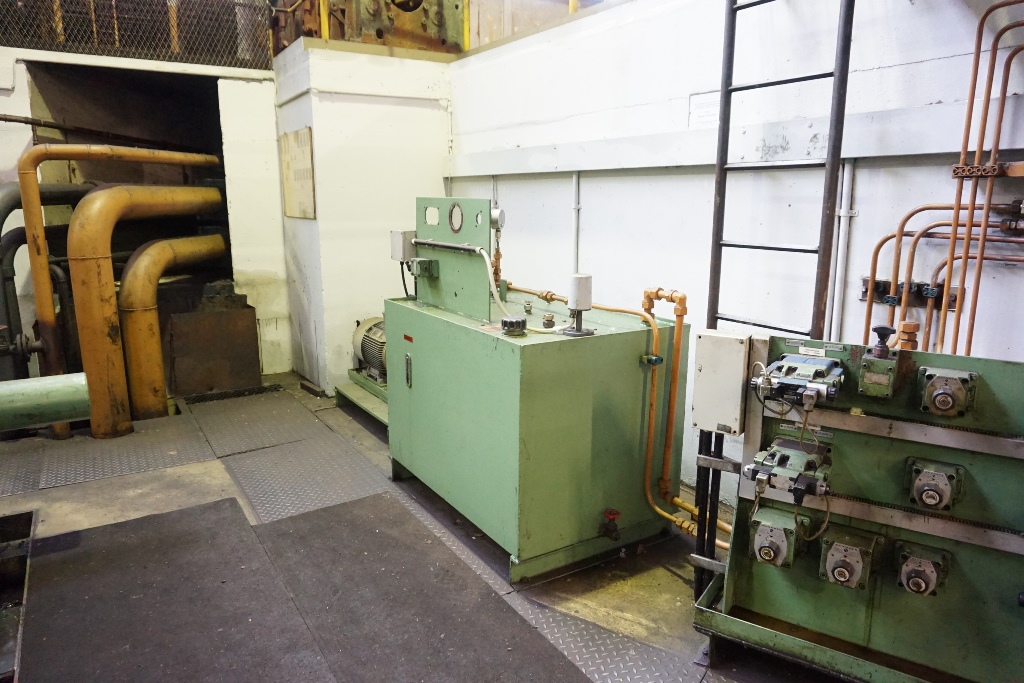

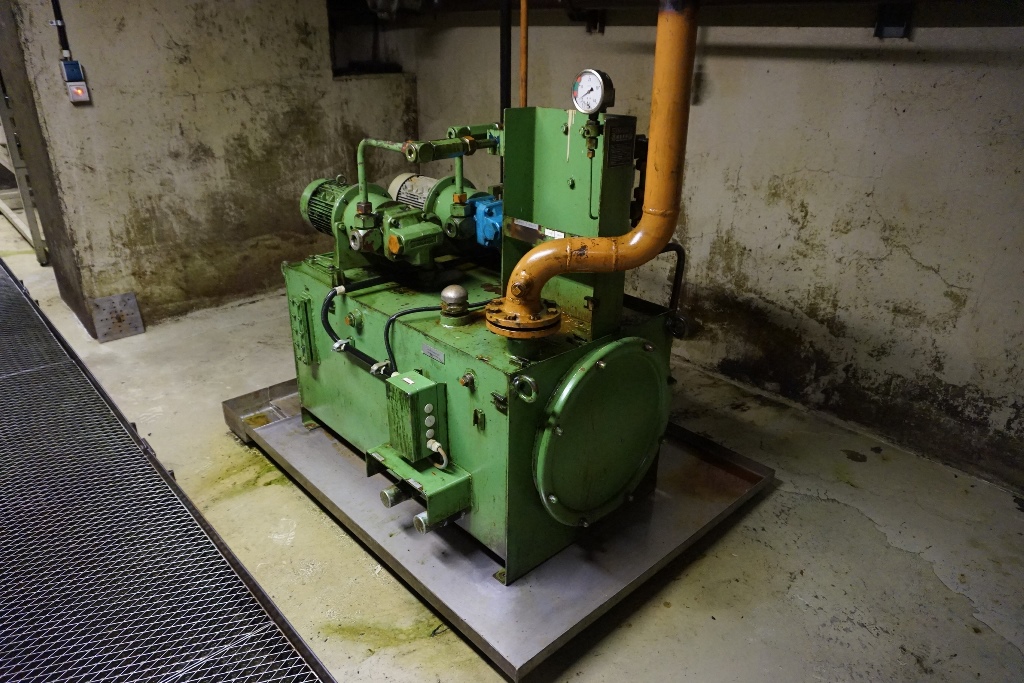

SMS/MEER/ Cold Pilger Rolling Mill, (3) x 115 VMR, number of Billets (3), Continuous Chain, Shell Transportation System with Feeding Table, Strokes 90 maximum – 85 per minute actual, Feed Rate 15.8 / 14.1mm Stroke, Shell Length 14,000mm Max, 8000 Minimum, Shell Dia Outer 115m Inner 89mm, Shell Weight 500KG, Exit Material: Tube Dia Outer 58mm Inner 53.2mm, Max Tube Eccentricity: % + - 2, Main Electric DC Motor 950KW 800 RPM with Controls, Reserve Main Clutch, Kind & Co/ Century Calibrating Roller 610mm dia x 220mm width, Tools Calibrating Roller Material. No. TQ1/1.2344, Calibrating Roller Hardness (HRc), Chrome Plate Mandrels – Material 1.2363, Thickness 0.003mm Hardness (HRc) 54-56 Pushing Device, Push Rods x 4, Noise Protection Hood with Controls, Chain Shell Transport System, Emulsion System with Controls, Tube Guilding System – Pilger Tunnel, Turning Device for Pilger Tools, Mandrel Support, Delimon Central Lubricating System, Controls and Electrical Cabinets

Please Note: This lot is located in Germany. Unfortunately, there are no loading facilities available on site, dismantling and loading will be at the cost of the purchaser.

Please click here to view a specification sheet for this equipment
